SRM-410 U - Echo Brush Cutter (SN: T75412001001 - T75412999999) Fan Cover Parts Diagram

Brush Cutter

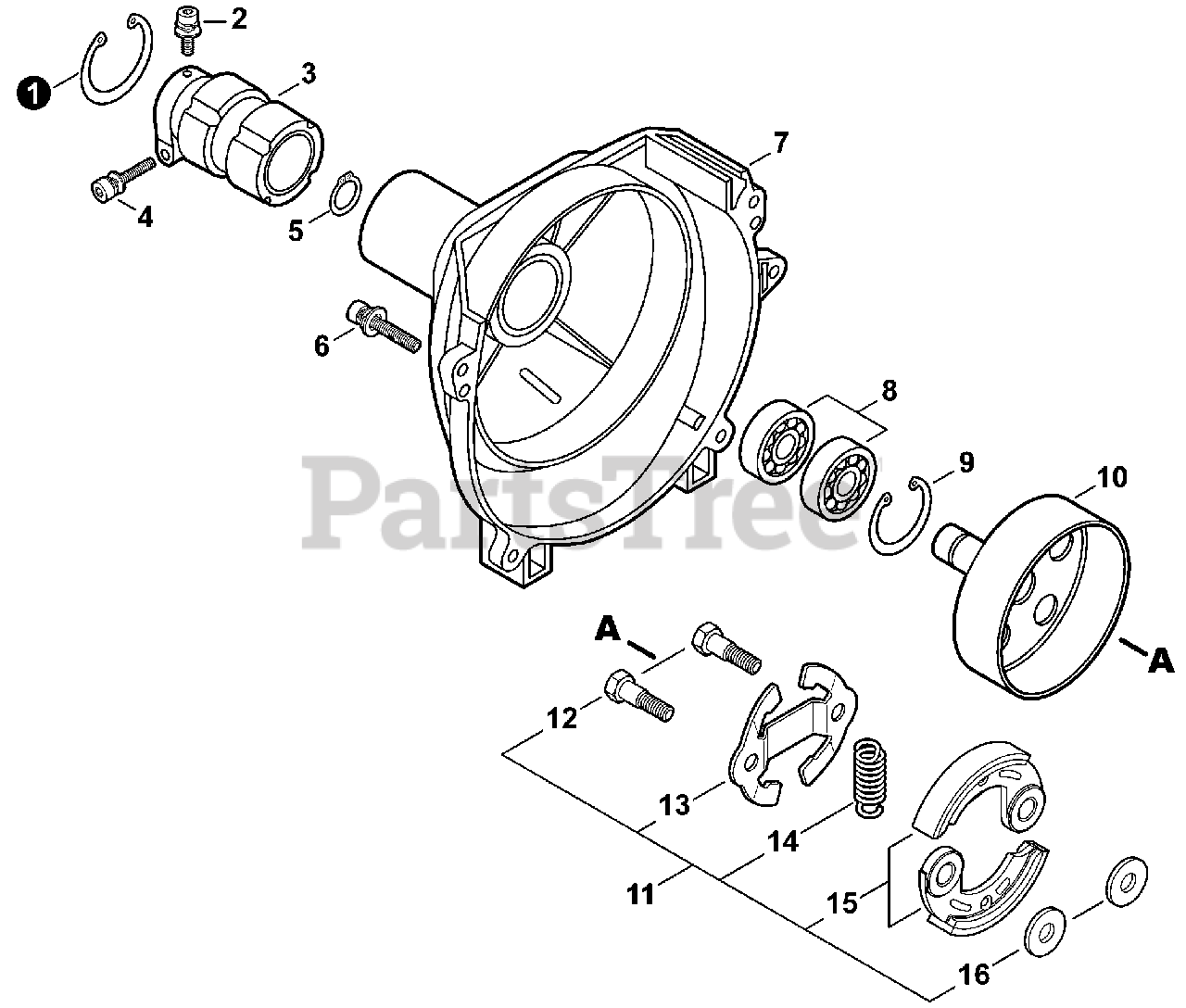

Fan Cover Parts Diagram

  • Title

1

Echo 90070200045

RING, SNAP

$1.99

$

In Stock, only 2 left!

0

2

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

3

Echo V420000980

CUSHION

$26.99

$

Usually ships in 2-4 days

0

4

Echo 90016205028

BOLT 5×28

$1.99

$

In Stock, Qty 20+

0

5

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 15

0

6

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

7

Echo A172000150

COVER, FAN

$62.99

$

Usually ships in 2-4 days

0

8

Echo 90080706001

BEARING, BALL 6001

$11.99

$

In Stock, only 3 left!

0

9

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 18

0

10

Echo A556000181

DRUM, CLUTCH

$75.99

$

Usually ships in 2-4 days

0

11

Echo P021016610

CLUTCH ASSY

Note: Includes ITEMS 12-16

$72.99

$

Usually ships in 2-4 days

0

12

Echo A557000000

BOLT, CLUTCH

$7.49

$

In Stock, only 2 left!

0

13

Echo V453000100

SPRING, FLAT

$10.99

$

Usually ships in 2-4 days

0

14

Echo V451000480

SPRING, TENSION

$3.49

$

Usually ships in 2-4 days

0

15

Echo A553000040

SHOE, CLUTCH

$12.99

$

Usually ships in 2-4 days

0

16

Echo 17504903920

WASHER 8.2×17×1.6

$1.49

$

In Stock, Qty 10

0
