SRM-410 U - Echo Brush Cutter (SN: T75412001001 - T75412999999) Gear Case Parts Diagram

Brush Cutter

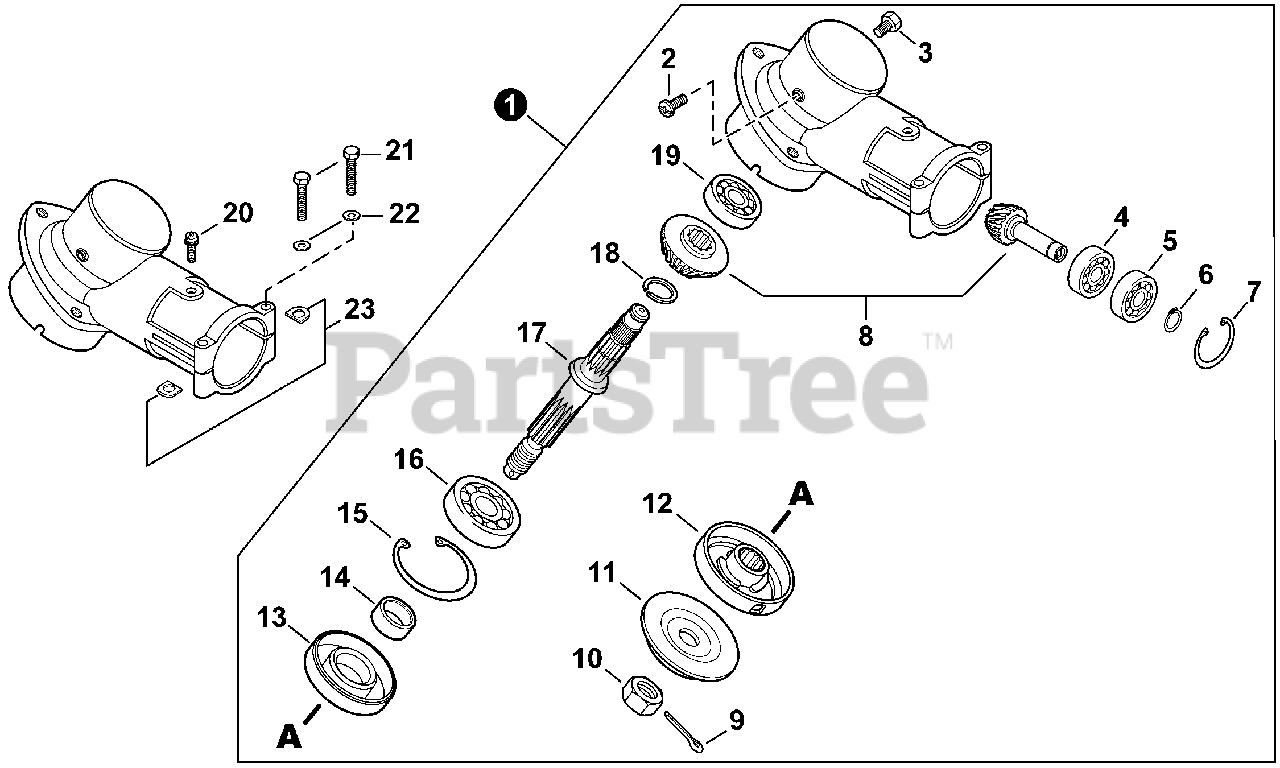

Gear Case Parts Diagram

  • Title

1

Echo P021046200

GEAR CASE ASSY

Note: INCLUDES ITEMS 2-19

$309.99

$

Usually ships in 2-4 days

0

2

Echo 90022004006

SCREW 4×6

$0.99

$

In Stock, Qty 12

0

3

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 7

0

4

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, Qty 7

0

5

Echo 90080706001

BEARING, BALL 6001

$11.99

$

In Stock, only 3 left!

0

6

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 15

0

7

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 18

0

8

Echo 61030040430

GEAR SET

$117.99

$

Usually ships in 2-4 days

0

9

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

10

Echo 90051100010

NUT 10

$1.49

$

In Stock, Qty 20+

0

11

Echo C535000150

PLATE, ADAPTOR - LOWER

$9.49

$

In Stock, Qty 20+

0

12

Echo 61031307132

PLATE, ADAPTOR - UPPER

$17.99

$

In Stock, Qty 8

0

13

Echo 61041307130

SEAL, OIL 22

$5.99

$

In Stock, Qty 20+

0

14

Echo 61031507130

SPACER 11.8×15×9

$3.99

$

In Stock, Qty 15

0

15

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 20+

0

16

Echo 90081006201

BEARING, BALL 6201

$6.99

$

In Stock, only 2 left!

0

17

Echo 61031041030

SHAFT, GEAR

$91.99

$

Usually ships in 2-4 days

0

18

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 10

0

19

Echo 90080036000

BEARING, BALL 6000

$11.99

$

Usually ships in 2-4 days

0

20

Echo 90024205010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010005040

BOLT 5×40

$0.99

$

In Stock, Qty 7

0

22

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 7

0
