SRM-410 X - Echo String Trimmer (SN: U46313001001 - U46313999999) Gear Case Parts Diagram

String Trimmer

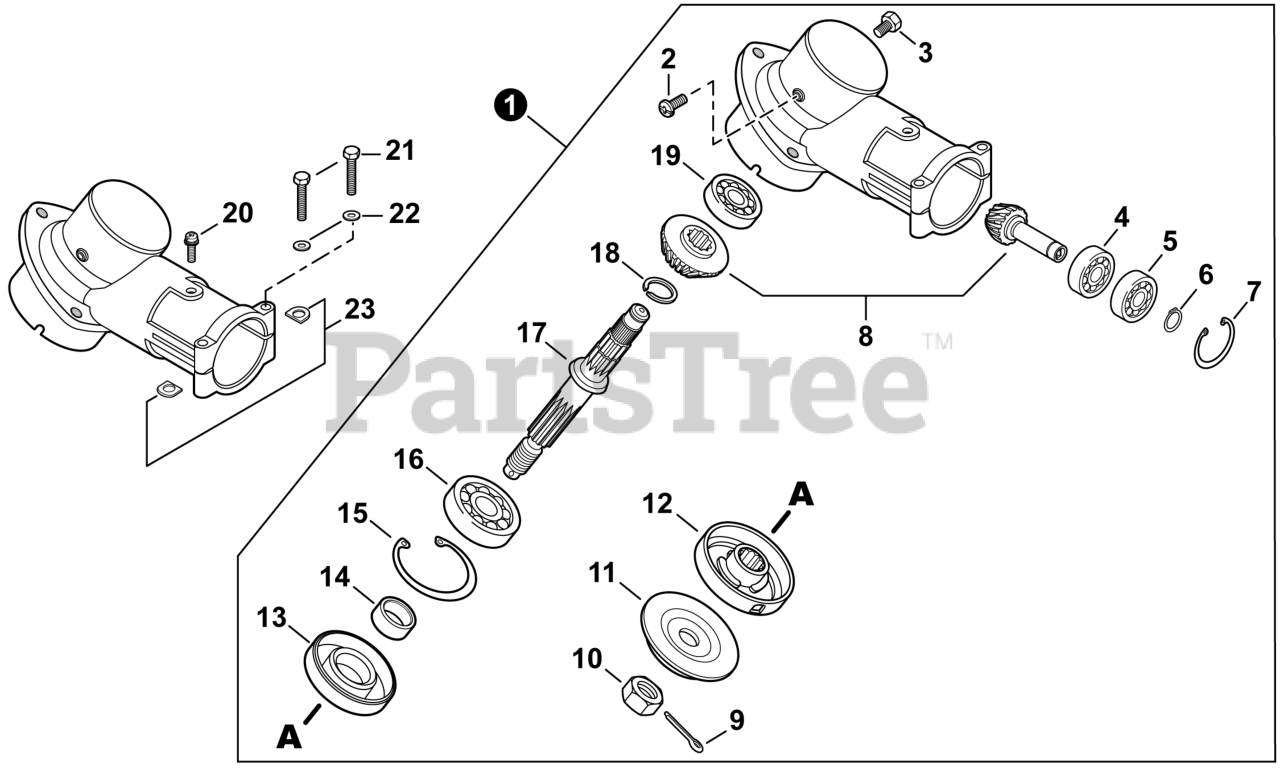

Gear Case Parts Diagram

  • Title

1

Echo P021046200

GEAR CASE ASSY

Note: INCLUDES items 2-19

$370.99

$

In Stock, only 1 left!

0

2

Echo 90022004006

SCREW 4x6

$0.99

$

In Stock, only 4 left!

0

3

Echo 61043450031

BOLT M8x8

$2.49

$

In Stock, only 3 left!

0

4

Echo 90080036001

BEARING, BALL 6001

$11.99

$

In Stock, Qty 17

0

5

Echo 90080706001

BEARING, BALL 6001

$13.99

$

In Stock, only 2 left!

0

6

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

7

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

8

Echo 61030040430

GEAR SET

$141.99

$

Usually ships in 2-4 days

0

9

Echo 90030020022

PIN, COTTER 2x22

$0.99

$

In Stock, Qty 17

0

10

Echo 90051100010

NUT 10

$1.99

$

In Stock, Qty 20+

0

11

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 10

0

12

Echo 61031307132

PLATE, ADAPTOR - UPPER

$20.99

$

In Stock, only 3 left!

0

13

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 2 left!

0

14

Echo 61031507130

SPACER 11.8x15x9

$4.49

$

In Stock, only 2 left!

0

15

Echo 90070200032

RING, SNAP 32

$2.49

$

In Stock, only 2 left!

0

16

Echo 90081006201

BEARING, BALL 6201

$8.49

$

In Stock, only 2 left!

0

17

Echo 61031041030

SHAFT, GEAR

$109.99

$

In Stock, only 1 left!

0

18

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 20+

0

19

Echo 90080036000

BEARING, BALL 6000

$14.99

$

Usually ships in 2-4 days

0

20

Echo 90024205010

SCREW 5x10

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010005040

BOLT 5x40

$0.99

$

In Stock, only 2 left!

0

22

Echo 90060000005

WASHER, FLAT 5.5x10x0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0
