SRM-420 ES AR - Echo Brush Cutter (SN: U14826001001 - U14826999999) Clutch Parts Diagram

Brush Cutter

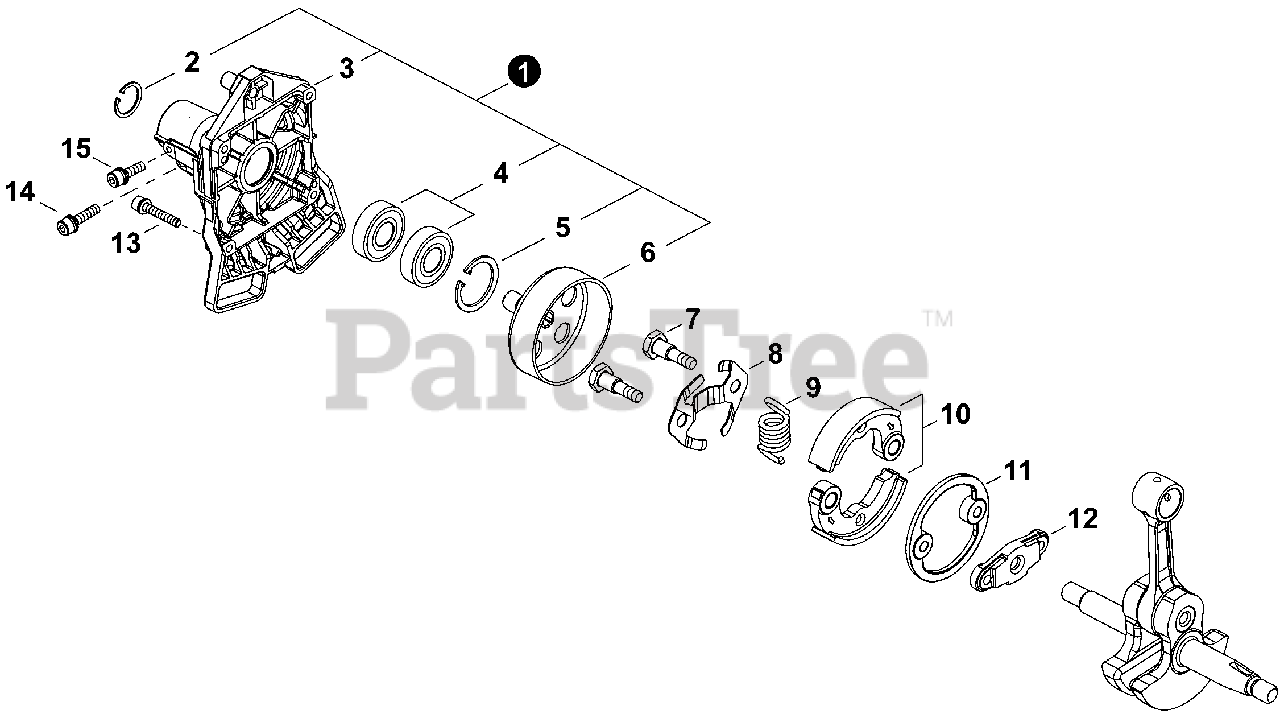

Clutch Parts Diagram

  • Title

1

Echo P100006110

CASE ASSY, CLUTCH

Note: Includes iitems 2-6

$161.99

$

Usually ships in 2-4 days

0

2

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

3

Echo A570000291

CASE, CLUTCH

$81.99

$

Usually ships in 2-4 days

0

4

Echo 9401846001

BEARING, BALL

$9.49

$

Usually ships in 2-4 days

0

5

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

6

Echo A556001540

DRUM, CLUTCH

$47.99

$

Usually ships in 2-4 days

0

7

Echo A557000190

BOLT, CLUTCH

$4.49

$

Usually ships in 2-4 days

0

8

Echo V453000230

SPRING, FLAT

$8.99

$

Usually ships in 2-4 days

0

9

Echo A566000230

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

10

Echo P100000080

CLUTCH SHOE SET

$71.99

$

Usually ships in 2-4 days

0

11

Echo V376001980

SPACER

$17.99

$

Usually ships in 2-4 days

0

12

Echo A552000390

HUB, CLUTCH

$19.99

$

Usually ships in 2-4 days

0

13

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

15

Echo V805000130

BOLT, TORX 5x10

$0.99

$

In Stock, Qty 20+

0
