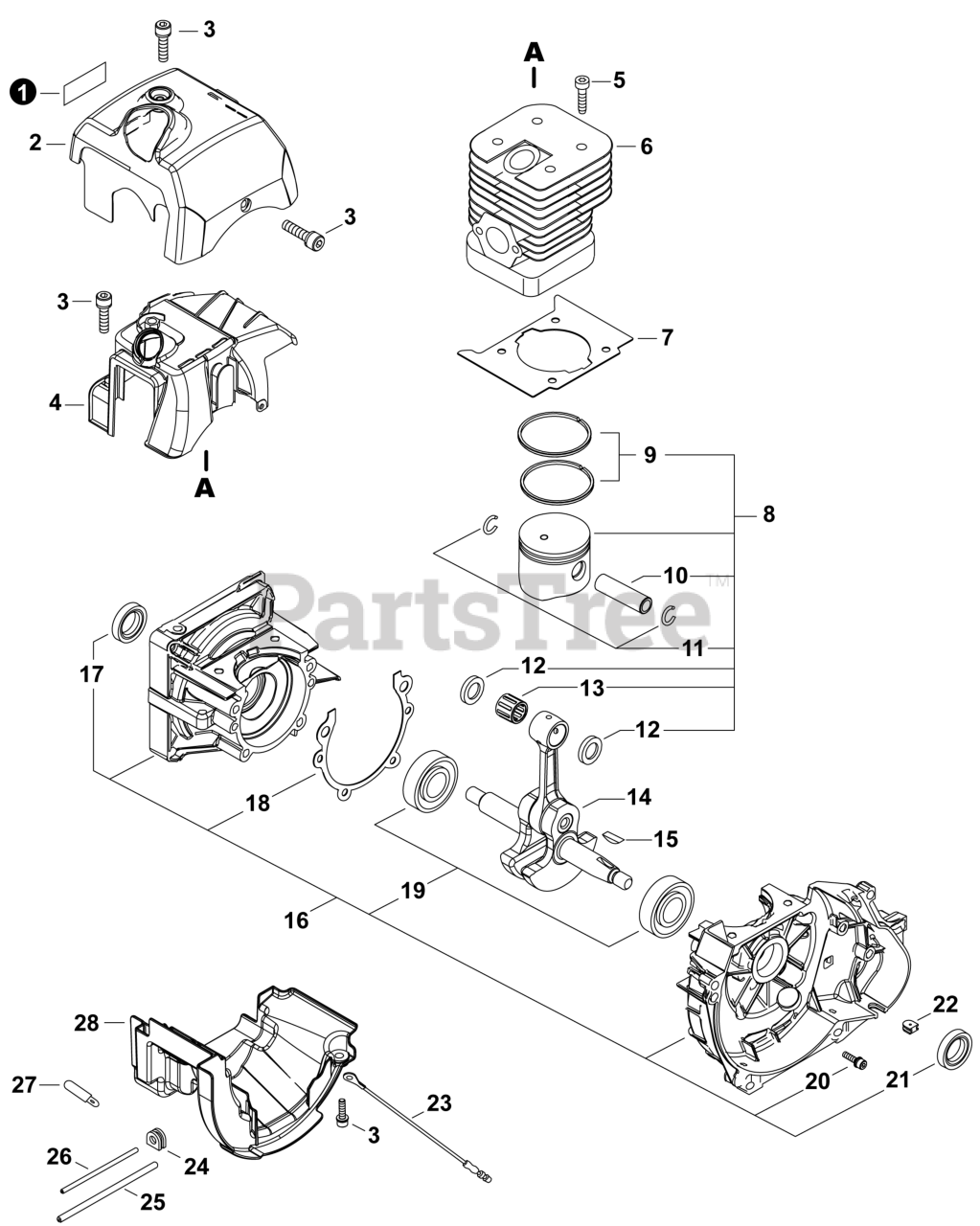

SRM-420 ES-LW/AR - Echo String Trimmer (SN: U16726001001 - U16726999999) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Echo X547002290

LABEL - MODEL SRM-420ES

$

$

Currently unavailable

2

Echo A160002631

COVER, ENGINE

$12.99

$

Usually ships in 2-4 days

0

3

Echo V835000000

BOLT, TORX 5×16

$1.99

$

In Stock, Qty 20+

0

4

Echo A160002620

COVER, CYLINDER

$15.99

$

Usually ships in 2-4 days

0

5

Echo V805000210

BOLT, TORX 5×20

$1.99

$

In Stock, Qty 20+

0

6

Echo A130002070

CYLINDER

$243.99

$

Usually ships in 2-4 days

0

7

Echo V100000760

GASKET, CYLINDER

$5.99

$

Usually ships in 2-4 days

0

8

Echo P021041390

PISTON KIT

Note: Includes iitems 9-13

$57.99

$

Usually ships in 2-4 days

0

9

Echo A101000160

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

10

Echo V608000000

PIN, PISTON 10

$6.99

$

Usually ships in 2-4 days

0

11

Echo V580000010

RING, SNAP Ø10

$0.99

$

Usually ships in 2-4 days

0

12

Echo 10001417330

WASHER, THRUST
(Superseded to V307000050)

$5.99

$

In Stock, only 3 left!

0

13

Echo 10001219830

BEARING, NEEDLE

$13.99

$

In Stock, only 1 left!

0

14

Echo A011001230

CRANKSHAFT ASSY

$229.99

$

Usually ships in 2-4 days

0

15

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 7

0

16

Echo P100002630

CRANKCASE SET

Note: Includes iitems 17-21

$192.99

$

Usually ships in 2-4 days

0

17

Echo V505000020

SEAL, OIL 12

$7.99

$

In Stock, Qty 15

0

18

Echo V102000250

GASKET, CRANKCASE

$2.99

$

Usually ships in 2-4 days

0

19

Echo 90088836201

BEARING, BALL 6201
(Superseded to 9403536201)

$9.99

$

In Stock, only 2 left!

0

20

Echo V805000290

BOLT, TORX 5×35

$1.49

$

In Stock, only 3 left!

0

21

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 15

0

22

Echo 15611407320

GROMMET

$0.99

$

Usually ships in 2-4 days

0

23

Echo V485002570

LEAD

$4.99

$

Usually ships in 2-4 days

0

24

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

25

Echo V475007610

TUBE, INSULATOR 8×9×111

$1.49

$

Usually ships in 2-4 days

0

26

Echo V471004041

PIPE, FUEL 3×6×165 BLACK

$1.99

$

Usually ships in 2-4 days

0

27

Echo 15911621231

CLAMP

$1.99

$

Usually ships in 2-4 days

0

28

Echo A209000740

PLATE, INSULATOR

$4.99

$

Usually ships in 2-4 days

0
