SRM-420 ES-LW/AR - Echo String Trimmer (SN: U16726001001 - U16726999999) Gear Case Parts Diagram

String Trimmer

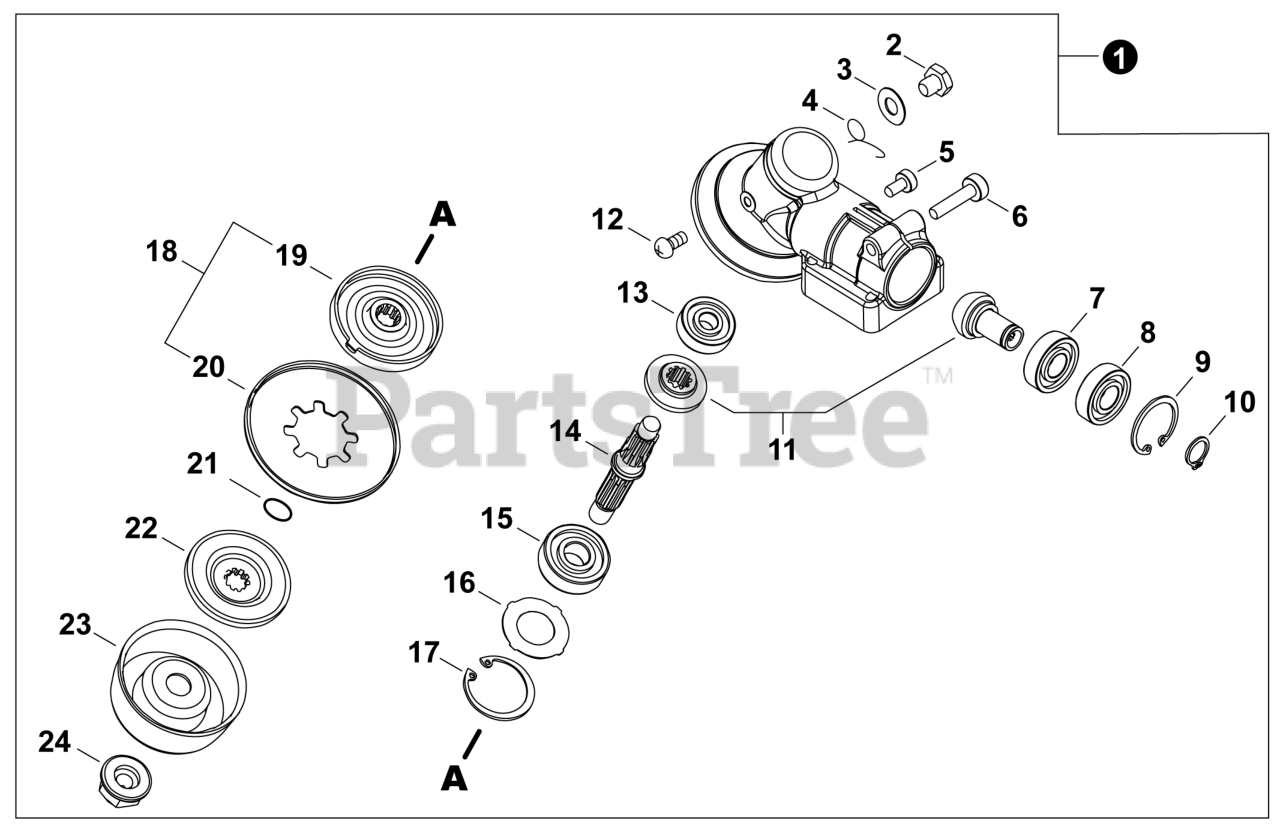

Gear Case Parts Diagram

  • Title

1

Echo P021041342

CASE, GEAR

Note: Includes iitems 2-24

$230.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT M8×8

$2.49

$

In Stock, only 4 left!

0

3

Echo 90060350008

WASHER 8.5×18×0.8T

$1.99

$

Usually ships in 2-4 days

0

4

Echo V452001310

SPRING, TORSION

$8.49

$

Usually ships in 2-4 days

0

5

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

6

Echo V806000100

BOLT, TORX 6×30

$2.99

$

Usually ships in 2-4 days

0

7

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 20+

0

8

Echo 90080306001

BEARING, BALL 6001Z

$19.99

$

Usually ships in 2-4 days

0

9

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

10

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

11

Echo 61030056930

GEAR SET

$140.99

$

Usually ships in 2-4 days

0

12

Echo 90022004006

SCREW 4×6

$0.99

$

In Stock, Qty 5

0

13

Echo 90081000629

BEARING, BALL 629

$18.99

$

In Stock, only 2 left!

0

14

Echo 61031056933

SHAFT, GEAR

$50.99

$

Usually ships in 2-4 days

0

15

Echo 90081206201

BEARING, BALL 6201

$14.99

$

In Stock, only 4 left!

0

16

Echo 61044456830

WASHER

$1.99

$

Usually ships in 2-4 days

0

17

Echo 90070200032

RING, SNAP Ø32

$2.49

$

Usually ships in 2-4 days

0

18

Echo 61031352932

RETAINER, BLADE
(Superseded to P050010710)

Note: Includes iitems 19-20

$38.99

$

Usually ships in 2-4 days

0

19

Echo 61031352132

PLATE, ADAPTOR
(Superseded to C535000011)

$41.99

$

Usually ships in 2-4 days

0

20

Echo 61035256830

PLATE, ADAPTOR - LOWER

$27.99

$

Usually ships in 2-4 days

0

21

Echo 90072000012

O-RING 12 MM

$1.99

$

In Stock, only 1 left!

0

22

Echo 61031452130

PLATE, ADAPTOR - LOWER

$27.99

$

Usually ships in 2-4 days

0

23

Echo 69922956830

CUP

$26.99

$

Usually ships in 2-4 days

0

24

Echo 61032052130

NUT, LOCK 10 - NYLON INSERT

$5.99

$

Usually ships in 2-4 days

0
