SRM-420 ES-LW/AR - Echo String Trimmer (SN: U16726001001 - U16726999999) Starter Parts Diagram

String Trimmer

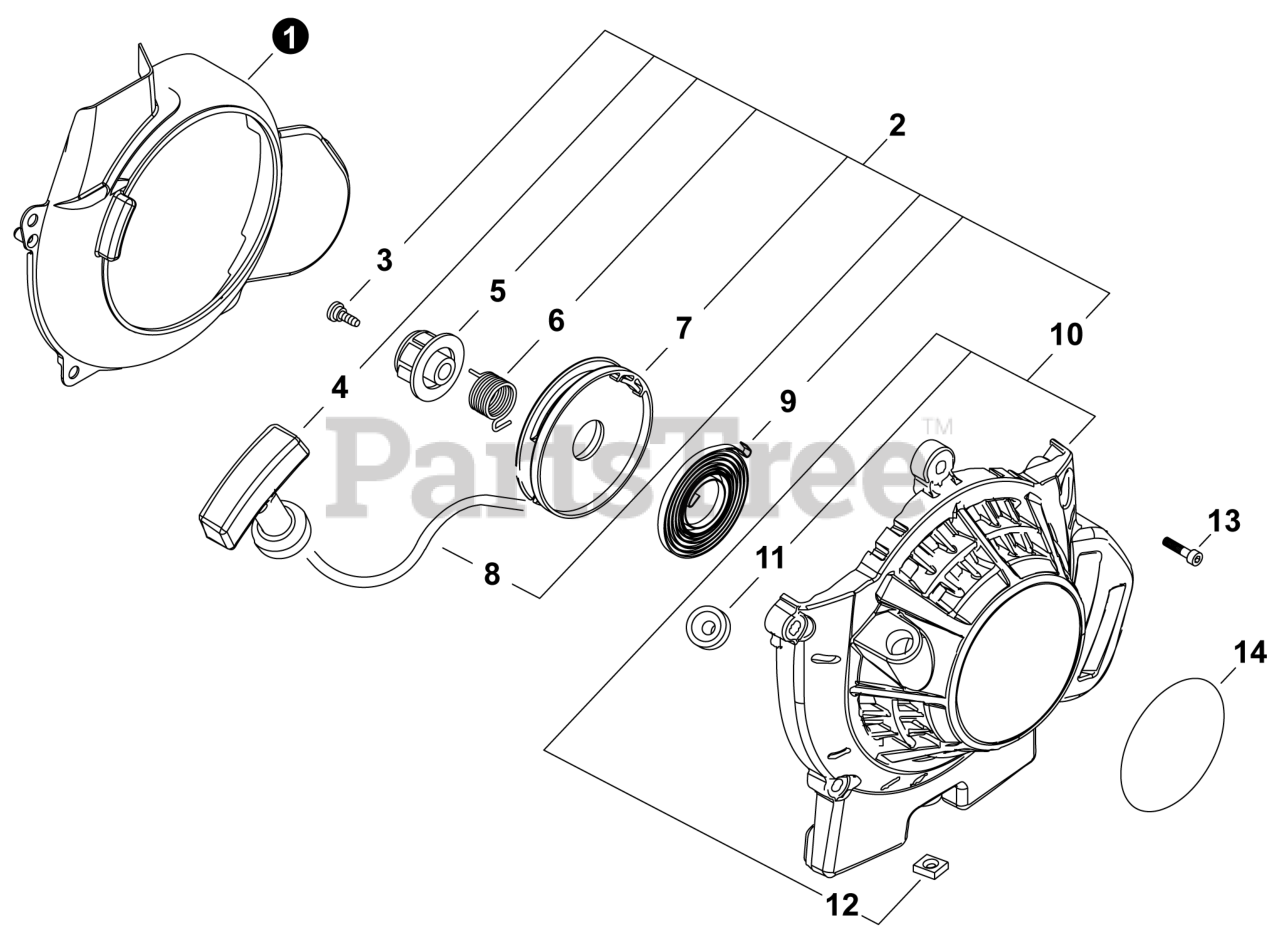

Starter Parts Diagram

  • Title

1

Echo A172002240

COVER, FAN

$13.99

$

Usually ships in 2-4 days

0

2

Echo A051002630

STARTER ASSY, RECOIL

Note: Includes iitems 3-12

$138.99

$

Usually ships in 2-4 days

0

3

Echo P022023110

SCREW

$4.49

$

Usually ships in 2-4 days

0

4

Echo 17722827030

GRIP, STARTER

$7.49

$

In Stock, only 2 left!

0

5

Echo P022033830

CAM

$7.99

$

Usually ships in 2-4 days

0

6

Echo P022023120

SPRING, TORSION

$8.99

$

Usually ships in 2-4 days

0

7

Echo P022023140

REEL, ROPE
(Superseded to P022060860)

$18.99

$

Usually ships in 0 days

0

8

Echo P022023100

ROPE, STARTER

$6.99

$

In Stock, only 1 left!

0

9

Echo P022004680

SPRING, RECOIL

$12.99

$

In Stock, only 2 left!

0

10

Echo P022037550

CASE, STARTER

Note: Includes iitems 11-12

$85.99

$

Usually ships in 2-4 days

0

11

Echo P022045770

GUIDE, ROPE

$4.49

$

In Stock, Qty 6

0

12

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

13

Echo V835000030

BOLT 5×20

$1.99

$

In Stock, only 2 left!

0

14

Echo X502000900

LABEL - RECOIL STARTER

$2.99

$

In Stock, only 4 left!

0
