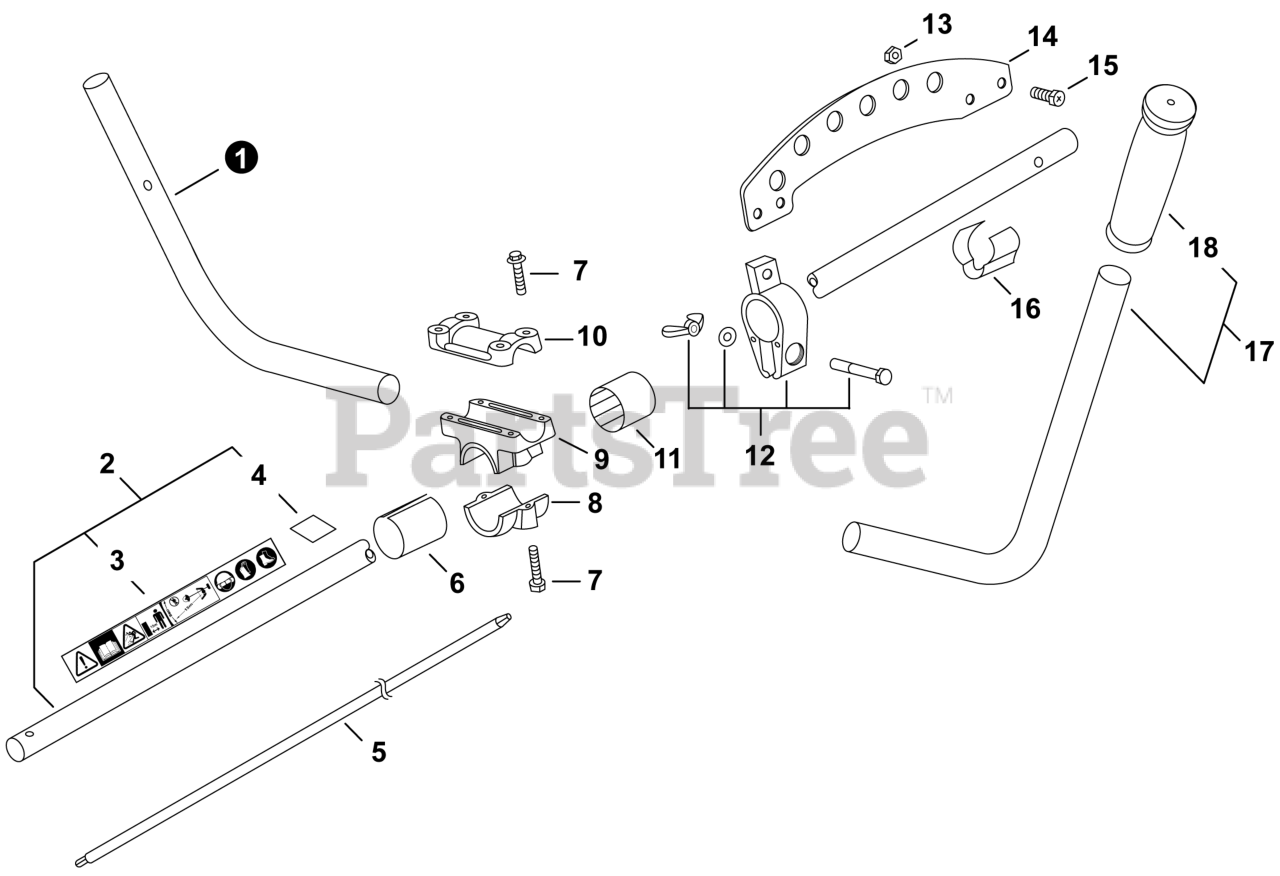

SRM-4300 F - Echo Brush Cutter (SN: C30326001001 - C30326999999) Main Pipe / Handles Parts Diagram

Brush Cutter

Main Pipe / Handles Parts Diagram

  • Title

1

Echo P022024740

HANDLE, RIGHT

$25.99

$

Usually ships in 2-4 days

0

2

Echo P050010430

MAIN PIPE ASSY

Note: Includes Items 3-4

$245.99

$

Usually ships in 2-4 days

0

3

Echo P022007070

LABEL - CAUTION - ISO

$10.99

$

Usually ships in 2-4 days

0

4

Echo P022035840

LABEL

$34.99

$

Usually ships in 2-4 days

0

5

Echo P022006980

DRIVESHAFT

$54.99

$

Usually ships in 2-4 days

0

6

Echo P022007120

SPACER

$5.49

$

Usually ships in 2-4 days

0

7

Echo P022007110

BOLT

$0.99

$

Usually ships in 2-4 days

0

8

Echo P022024750

BRACKET, MOUNTING

$28.99

$

Usually ships in 2-4 days

0

9

Echo P022007090

BRACKET, LOWER

$23.99

$

Usually ships in 2-4 days

0

10

Echo P022007081

BRACKET, UPPER

$12.99

$

Usually ships in 2-4 days

0

11

Echo P022007030

SPACER

$4.99

$

Usually ships in 2-4 days

0

12

Echo P022007020

CLAMP ASSY

$22.99

$

Usually ships in 2-4 days

0

13

Echo P022007010

NUT M6

$0.99

$

Usually ships in 2-4 days

0

14

Echo P022006990

HANGER

$30.99

$

Usually ships in 2-4 days

0

15

Echo P022007000

BOLT M6

$1.99

$

Usually ships in 2-4 days

0

16

Echo P022007210

HOLDER, CABLE

$7.49

$

Usually ships in 2-4 days

0

17

Echo P022024730

HANDLE ASSY, LEFT

Note: Includes Item 18

$40.99

$

Usually ships in 2-4 days

0

18

Echo P022007140

GRIP

$5.49

$

Usually ships in 2-4 days

0
