SRM-4300 R - Echo Brush Cutter (SN: S51220001001 - S51220999999) Gear Case Parts Diagram

Brush Cutter

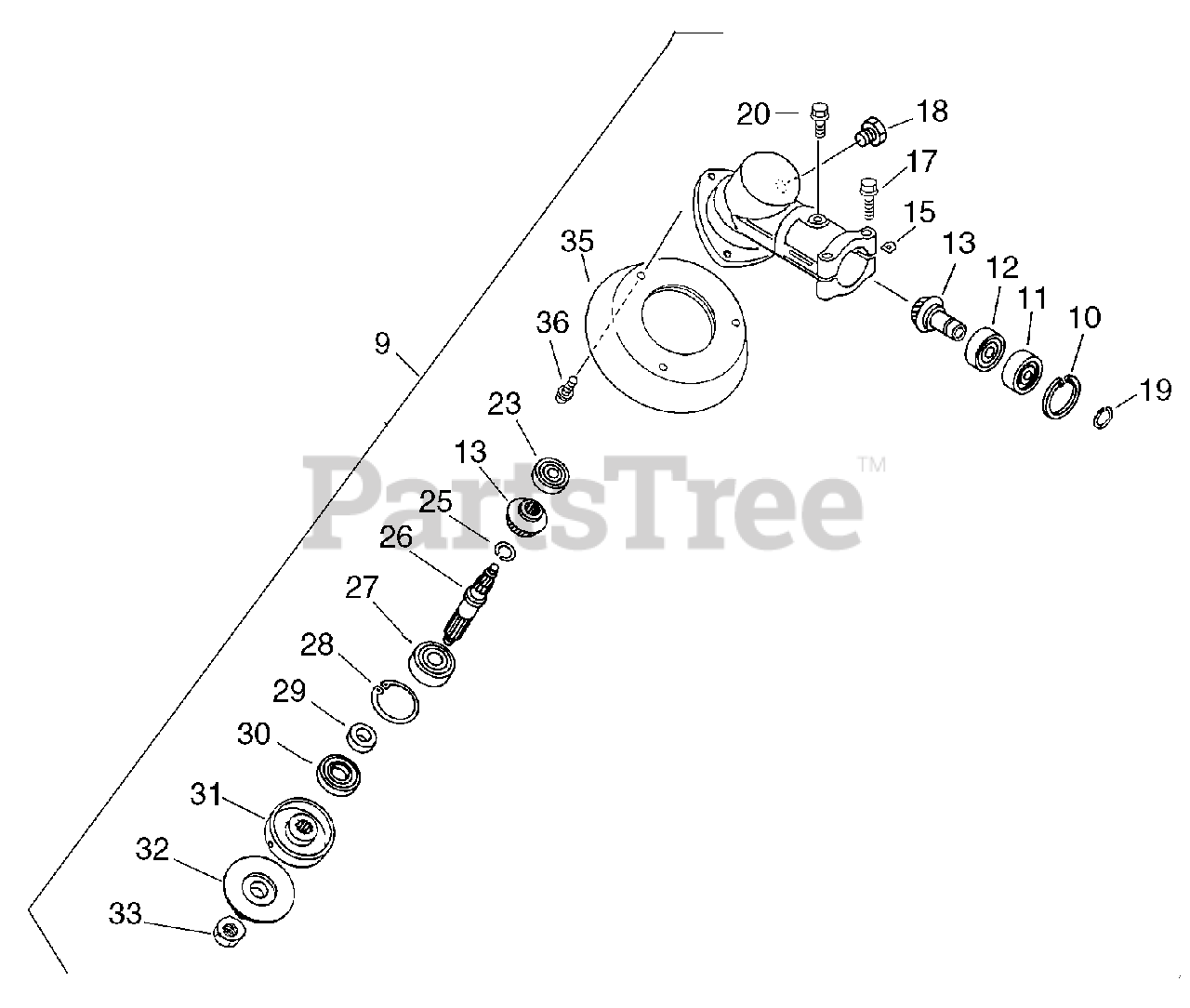

Gear Case Parts Diagram

  • Title

9

Echo P022007041

GEAR CASE ASSY
(Superseded to C051001130)

$288.99

$

Usually ships in 2-4 days

0

10

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

11

Echo 90080796001

BEARING, BALL - 6001
(Superseded to 9405106001)

$6.99

$

In Stock, Qty 20+

0

12

Echo 90080036001

BEARING, BALL - 6001C3

$10.99

$

In Stock, only 4 left!

0

13

Echo P022007460

GEAR SET

$100.99

$

Usually ships in 2-4 days

0

15

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

17

Echo P022007050

BOLT - 5X30

$1.49

$

Usually ships in 2-4 days

0

18

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, Qty 20+

0

19

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 19

0

20

Echo P022007060

BOLT

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90080036000

BEARING, BALL - 6000

$12.99

$

Usually ships in 2-4 days

0

25

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 9

0

26

Echo 61031005730

GEAR - SHAFT

$41.99

$

Usually ships in 2-4 days

0

27

Echo 90081006201

BEARING, BALL - 6201

$7.99

$

In Stock, only 2 left!

0

28

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 11

0

29

Echo 61031507130

SPACER

$4.49

$

In Stock, Qty 11

0

30

Echo 61041307130

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

31

Echo 61031307132

ADAPTOR, BLADE - UPPER

$19.99

$

In Stock, only 4 left!

0

32

Echo 61031421231

ADAPTOR, BLADE - LOWER

$15.99

$

Usually ships in 2-4 days

0

33

Echo 61032027430

NUT

$2.49

$

Usually ships in 2-4 days

0

35

Echo C536000030

COVER, GEAR CASE

$13.99

$

Usually ships in 2-4 days

0

36

Echo 90024205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0
