SRM-4300 R - Echo Brush Cutter (SN: S51220001001 - S51220999999) Starter Parts Diagram

Brush Cutter

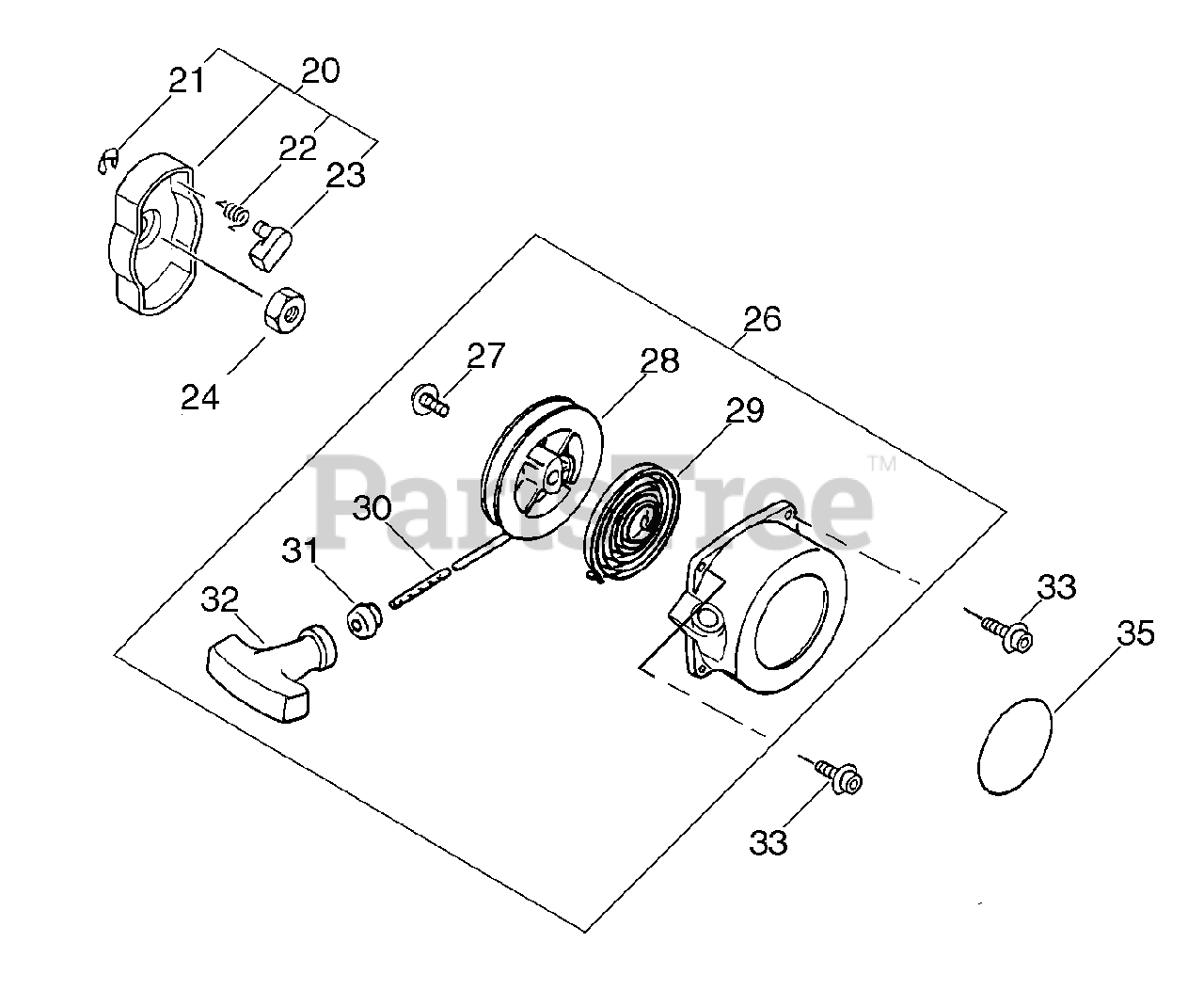

Starter Parts Diagram

  • Title

20

Echo A052000011

STARTER PAWL ASSY

$15.99

$

Usually ships in 2-4 days

0

20

Echo A052000011

STARTER PAWL ASSY

$15.99

$

Usually ships in 2-4 days

0

21

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, Qty 6

0

21

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, Qty 6

0

22

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, Qty 9

0

22

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, Qty 9

0

23

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

23

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

24

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

24

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

26

Echo A051000070

STARTER ASSY

$85.99

$

Usually ships in 2-4 days

0

26

Echo A051000070

STARTER ASSY

$85.99

$

Usually ships in 2-4 days

0

27

Echo 17723606910

SCREW

$3.99

$

Usually ships in 2-4 days

0

27

Echo 17723606910

SCREW

$3.99

$

Usually ships in 2-4 days

0

28

Echo P022002080

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

28

Echo P022002080

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

29

Echo 17722006310

SPRING, REWIND

$17.99

$

Usually ships in 2-4 days

0

29

Echo 17722006310

SPRING, REWIND

$17.99

$

Usually ships in 2-4 days

0

30

Echo 17722606310

ROPE, STARTER 3.8×1150

$6.49

$

In Stock, only 4 left!

0

30

Echo 17722606310

ROPE, STARTER 3.8×1150

$6.49

$

In Stock, only 4 left!

0

31

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

31

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

32

Echo 17722827030

GRIP, STARTER

$6.99

$

In Stock, Qty 15

0

32

Echo 17722827030

GRIP, STARTER

$6.99

$

In Stock, Qty 15

0

33

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 5

0

33

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 5

0

35

Echo X502000460

LABEL - ECHO

$2.49

$

In Stock, only 2 left!

0

35

Echo X502000460

LABEL - ECHO

$2.49

$

In Stock, only 2 left!

0
