SRM-4600 - Echo Brush Cutter Carburetor Parts Diagram

Brush Cutter

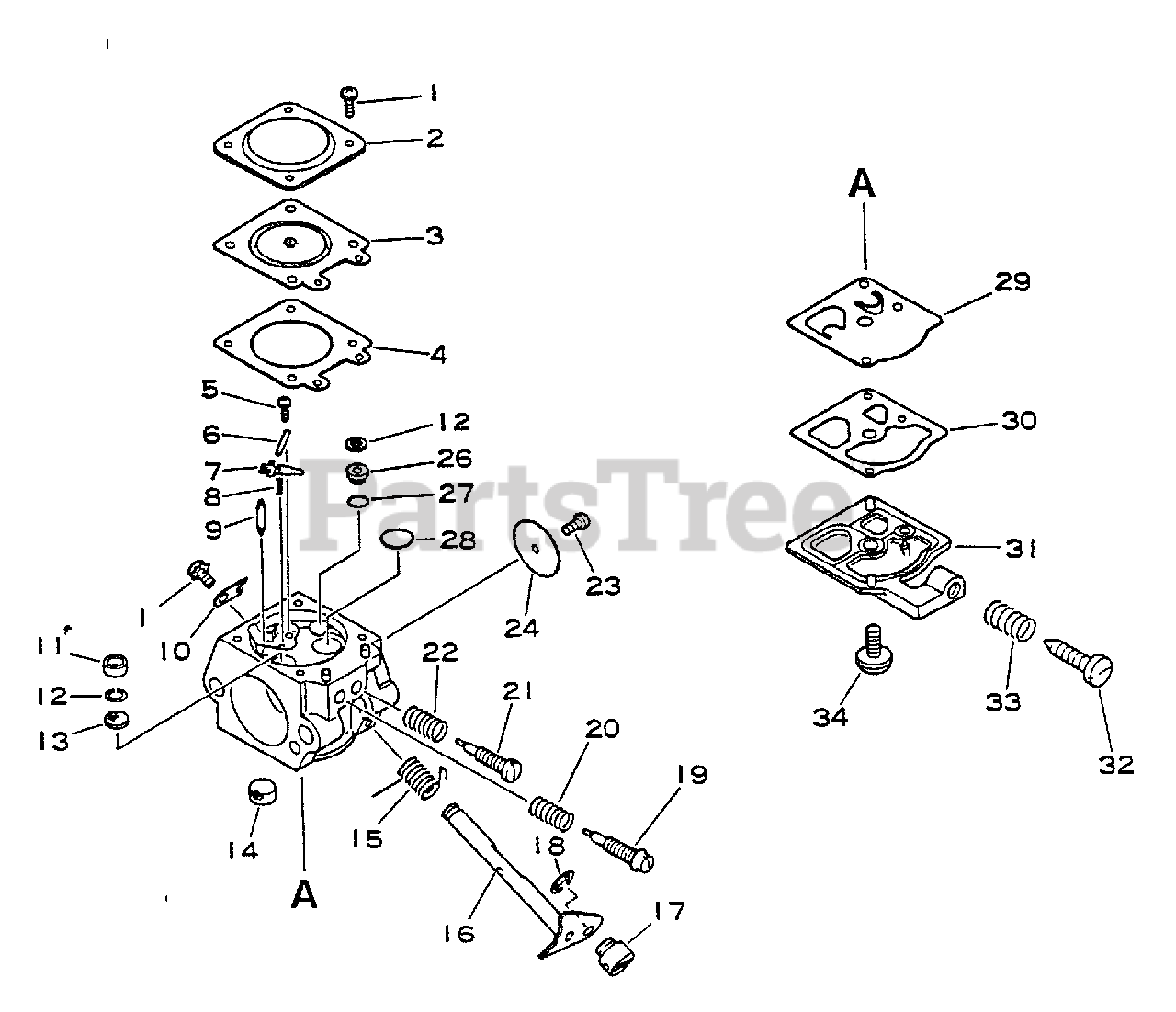

Carburetor Parts Diagram

  • Title

Echo 12300043230

CARBURETOR
(Superseded to 12300047531)

$228.99

$

Usually ships in 2-4 days

0

1

SCREW

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

2

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM, METERING

Note: Use Carburetor Repair Kit P/N 12310043130 Use Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

4

GASKET, METERING

Note: Use Carburetor Repair Kit P/N 12310043130 Use Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

5

SCREW

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

6

PIN, METERING LEVER

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

7

LEVER, METERING

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

8

SPRING, METERING LEVER

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

9

VALVE, INLET NEEDLE

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

10

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

11

PLUG, WELCH

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

12

Echo 12316910630

RING, RETAINING

$1.49

$

In Stock, Qty 5

0

13

Echo 12316810631

SCREEN, SPARK ARRESTER

$1.99

$

Usually ships in 2-4 days

0

14

STRAINER

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

15

Echo 12311315030

SPRING, THROTTLE RETURN

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12311705020

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

17

Echo 12317204320

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

18

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

19

Echo 12312004420

NEEDLE, HIGH SPEED

$10.99

$

Usually ships in 2-4 days

0

------------------

SPRING, NEEDLE

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

21

Echo 12311824430

NEEDLE, LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

------------------

SPRING, NEEDLE

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

23

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 7

0

24

Echo 12311610530

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

26

Echo 12318443230

JET, MAIN

$3.99

$

Usually ships in 2-4 days

0

27

Echo 12318305960

O-RING

$19.99

$

In Stock, only 2 left!

0

28

PLUG, WELCH

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

30

GASKET, PUMP

Note: Use Carburetor Repair Kit P/N 12310043130 Use Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

29

DIAPHRAGM, PUMP

Note: Use Carburetor Repair Kit P/N 12310043130 Use Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

31

Echo 12312409520

COVER, PUMP

$14.99

$

Usually ships in 2-4 days

0

32

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 2 left!

0

33

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, only 2 left!

0

34

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

Echo 12310043130

REPAIR KIT

$18.99

$

Usually ships in 2-4 days

0

Echo 12310110530

GASKET / DIAPHRAGM KIT

$16.99

$

In Stock, only 2 left!

0
