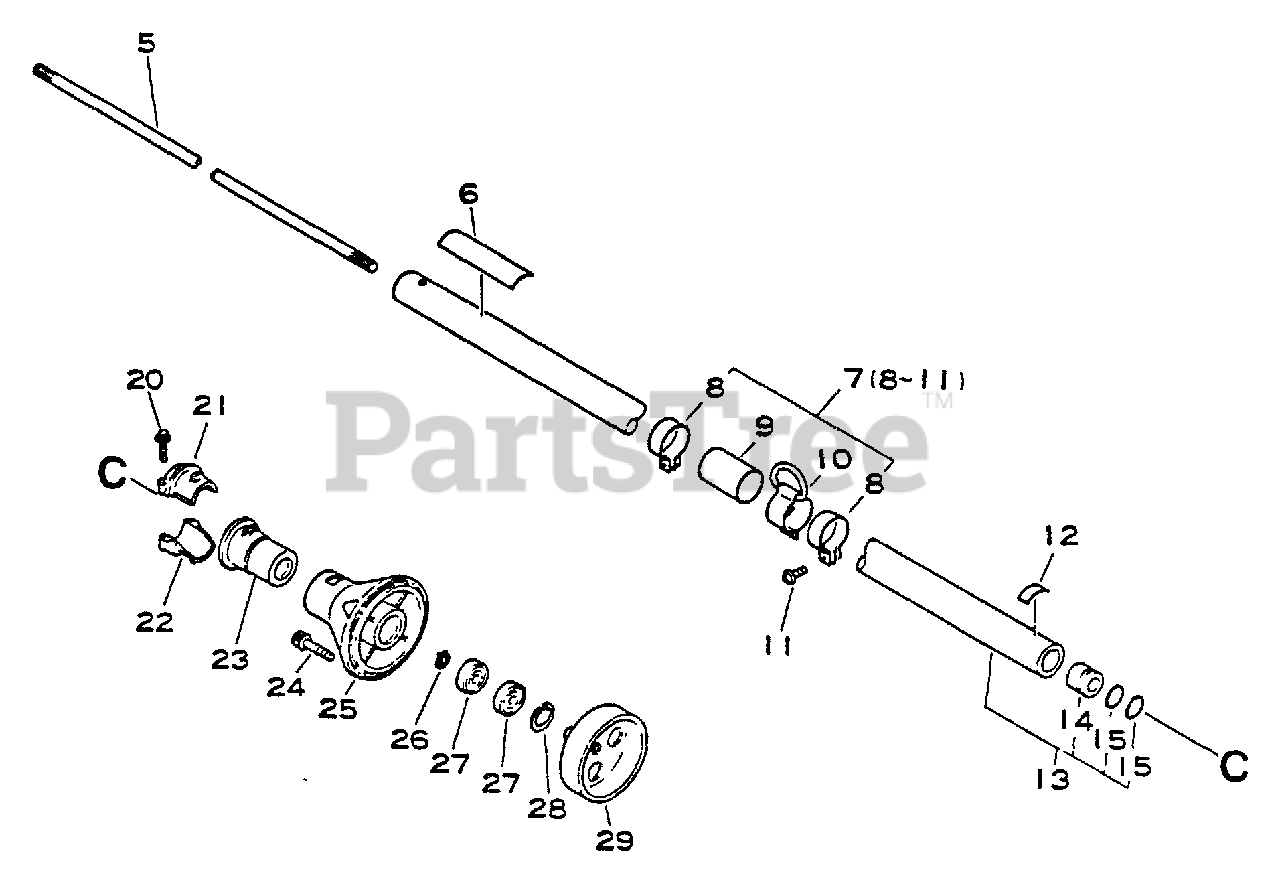

SRM-4600 - Echo Brush Cutter Driveshaft, Clutch Housing Parts Diagram

Brush Cutter

Driveshaft, Clutch Housing Parts Diagram

  • Title

5

Echo 61001106230

DRIVESHAFT - SOLID

$51.99

$

Usually ships in 2-4 days

0

6

Echo 89016024230

LABEL - CAUTION
(Superseded to 89016044730)

$3.99

$

Usually ships in 2-4 days

0

7

Echo 30120006230

HANGER KIT

$23.99

$

Usually ships in 2-4 days

0

8

Echo 30120705630

HOOK
(Superseded to Discontinued)

$

$

Not available

9

Echo 30122406230

COLLAR
(Superseded to Discontinued)

$

$

Not available

10

Echo 30121006230

HOOK
(Superseded to 30120006230)

$23.99

$

Usually ships in 2-4 days

0

11

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

12

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

13

Echo 61020643130

MAIN PIPE ASSY
(Superseded to 61020643131)

$122.99

$

Usually ships in 2-4 days

0

14

Echo 61010543130

STOPPER

$51.99

$

Usually ships in 2-4 days

0

15

Echo 90072000020

O-RING - 20

$2.49

$

Usually ships in 2-4 days

0

20

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 10

0

21

Echo 61092240430

CLAMP, MAIN PIPE
(Superseded to Discontinued)

$

$

Not available

22

Echo 61092340430

CLAMP, MAIN PIPE
(Superseded to Discontinued)

$

$

Not available

23

Echo 61091040430

CUSHION

$7.49

$

Usually ships in 2-4 days

0

24

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

25

Echo 61020543130

FLANGE, DRIVESHAFT
(Superseded to 61020343130)

$94.99

$

Usually ships in 2-4 days

0

26

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

27

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 2 left!

0

28

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 18

0

29

Echo 17500543130

DRUM, CLUTCH
(Superseded to A556000181)

$75.99

$

Usually ships in 2-4 days

0
