SRM-4600 - Echo Brush Cutter Fuel System Parts Diagram

Brush Cutter

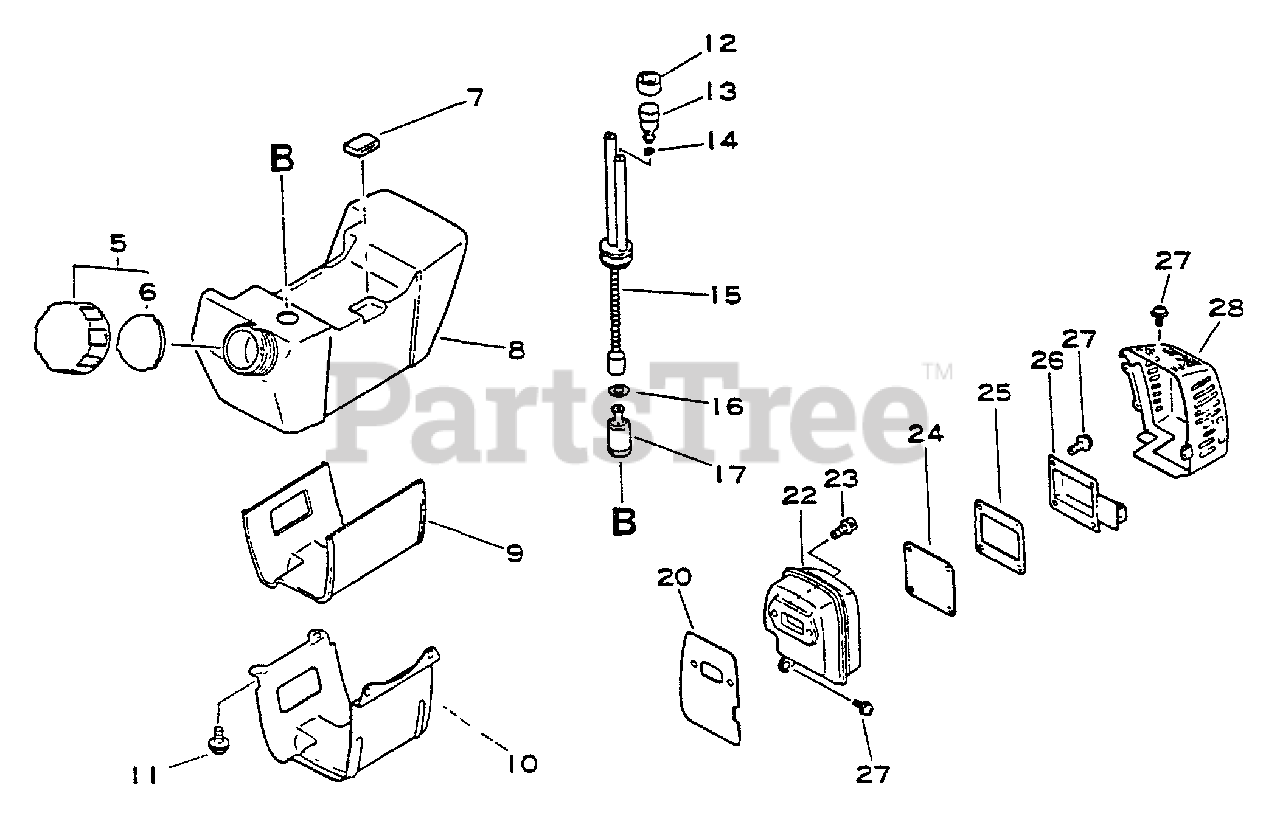

Fuel System Parts Diagram

  • Title

5

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

$

$

Not available

6

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

7

Echo 13192311120

CUSHION

$1.99

$

Usually ships in 2-4 days

0

8

Echo 13101046930

TANK, FUEL
(Superseded to 13101046931)

$26.99

$

Usually ships in 2-4 days

0

9

Echo 13192443130

CUSHION

$5.49

$

Usually ships in 2-4 days

0

10

Echo 13192543130

STAND
(Superseded to 13191043130)

$12.99

$

Usually ships in 2-4 days

0

11

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11

0

12

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

13

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

14

Echo 130111-00530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

15

Echo 13201043130

PIPE, FUEL
(Superseded to P021045540)

$11.99

$

Usually ships in 2-4 days

0

16

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 13120021330

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0

20

Echo 14551042230

GASKET, EXHAUST
(Superseded to 14551042231)

$7.99

$

Usually ships in 2-4 days

0

22

Echo 14561043130

MUFFLER
(Superseded to Discontinued)

$

$

Not available

23

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

24

Echo 14586243130

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

25

Echo 14586643130

GASKET, EXHAUST
(Superseded to 14586643131)

$2.99

$

Usually ships in 2-4 days

0

26

Echo 14586743130

GUIDE, EXHAUST
(Superseded to 14586743131)

$

$

Not available

27

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

28

Echo 14587143130

COVER, MUFFLER
(Superseded to A320000890)

$36.99

$

Usually ships in 2-4 days

0
