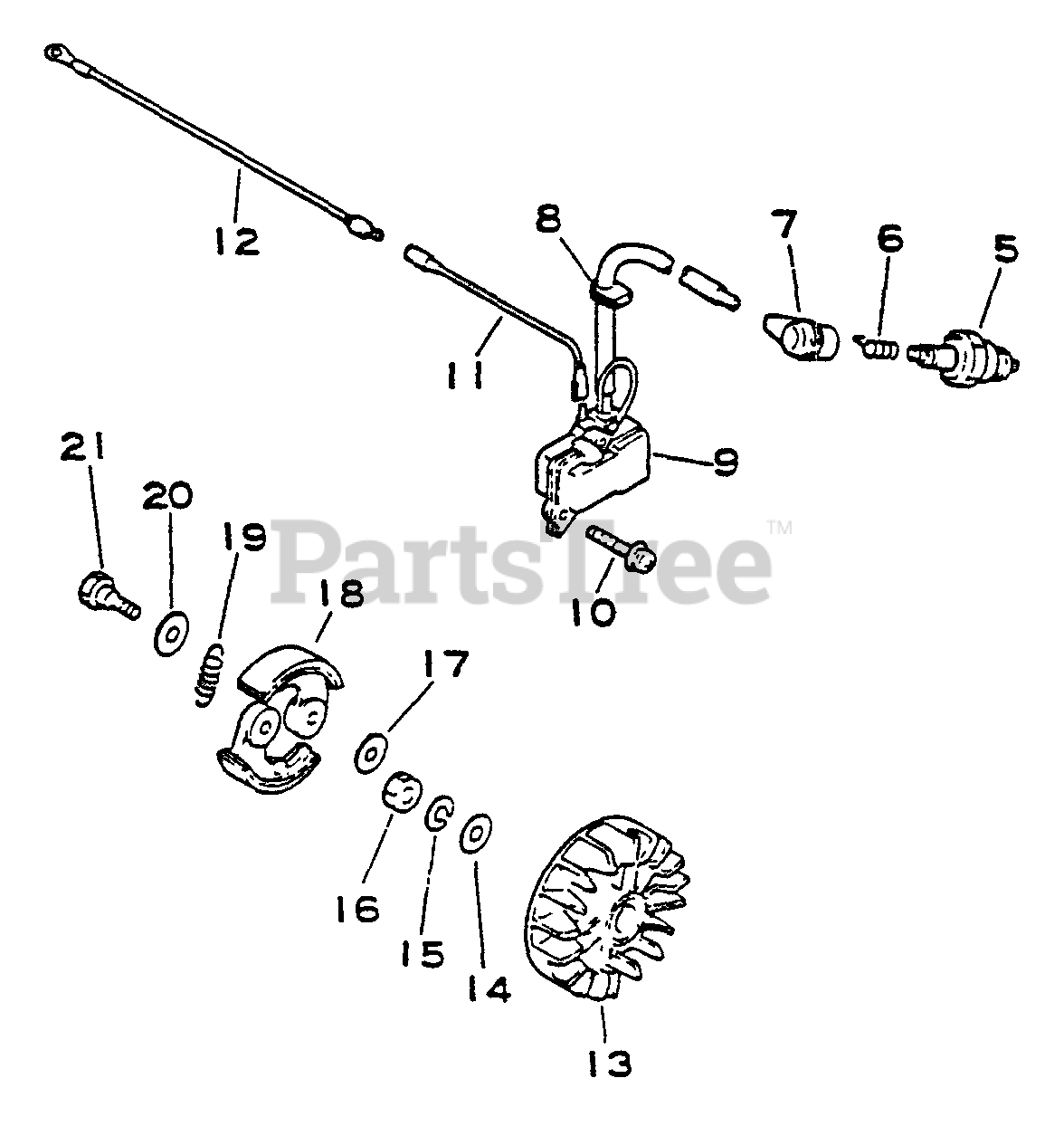

SRM-4600 - Echo Brush Cutter Ignition, Clutch Parts Diagram

Brush Cutter

Ignition, Clutch Parts Diagram

  • Title

5

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

6

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 11

0

7

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

8

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 17

0

9

Echo 15662642230

COIL, IGNITION

$147.99

$

Usually ships in 2-4 days

0

10

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 10

0

11

Echo 16202142230

LEAD - IGNITION

$4.99

$

Usually ships in 2-4 days

0

12

Echo 15663543130

LEAD - GROUND

$1.99

$

In Stock, Qty 11

0

13

Echo 15680142230

FLYWHEEL

$141.99

$

Usually ships in 2-4 days

0

14

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 9

0

15

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 6

0

16

Echo 90050200010

NUT - 10
(Superseded to Discontinued)

$

$

Not available

17

Echo 17504903920

WASHER

$1.99

$

In Stock, Qty 10

0

18

Echo 17500942230

SHOE, CLUTCH
(Superseded to 17500942231)

$31.99

$

Usually ships in 2-4 days

0

19

Echo 17501842230

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

20

Echo 17504803920

WASHER

$1.99

$

In Stock, Qty 5

0

21

Echo 17504606230

BOLT, CLUTCH

$11.99

$

Usually ships in 2-4 days

0
