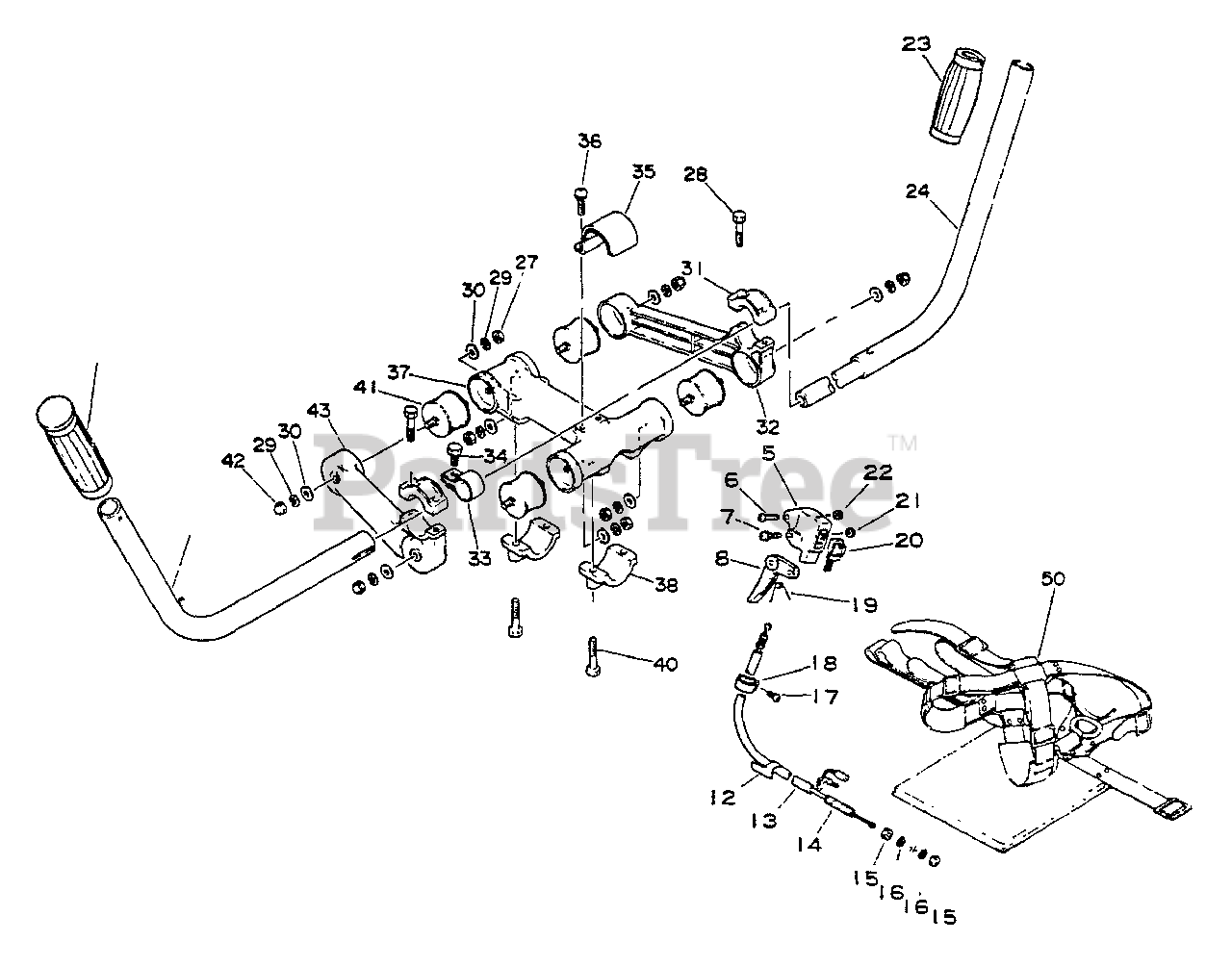

SRM-4600 - Echo Brush Cutter Throttle, Stop Switch, Handles, Harness Parts Diagram

Brush Cutter

Throttle, Stop Switch, Handles, Harness Parts Diagram

  • Title

5

Echo 17802422130

BRACKET, THROTTLE
(Superseded to 17802441830)

$8.49

$

Usually ships in 2-4 days

0

6

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

7

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

8

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 17811106230

CLIP

$2.99

$

Usually ships in 2-4 days

0

13

Echo 17812741030

PIPE

$2.99

$

Usually ships in 2-4 days

0

14

Echo 17800141030

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

15

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

16

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

18

Echo 17810605330

CLAMP

$5.99

$

Usually ships in 2-4 days

0

19

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

20

Echo 16340041030

SWITCH, ON-OFF

$13.99

$

Usually ships in 2-4 days

0

21

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

22

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

23

Echo 35131522130

GRIP

$12.99

$

Usually ships in 2-4 days

0

24

Echo 35111008130

HANDLE

$33.99

$

Usually ships in 2-4 days

0

Echo 35200004230

V.L. UNIT
(Superseded to Discontinued)

$

$

Not available

27

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

28

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

29

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

30

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

31

Echo 35201505330

RETAINER

$7.99

$

In Stock, only 2 left!

0

32

Echo 35201405330

ARM, RETAINER - RIGHT
(Superseded to Discontinued)

$

$

Not available

35

Echo 35209005330

PLATE
(Superseded to Discontinued)

$

$

Not available

36

Echo 90024105014

SCREW 5×14

$0.99

$

Usually ships in 2-4 days

0

37

Echo 35201005330

HOLDER, D.S. HOUSING
(Superseded to Discontinued)

$

$

Not available

38

Echo 35201805330

HOLDER
(Superseded to Discontinued)

$

$

Not available

40

Echo 90010006030

BOLT - 6×30
(Superseded to Discontinued)

$

$

Not available

41

Echo 35201905330

CUSHION
(Superseded to Discontinued)

$

$

Not available

42

Echo 30032303130

NUT - 5 -- CAP
(Superseded to 21041901110)

$0.99

$

In Stock, Qty 9

0

43

Echo 35201305330

ARM, HANDLE - LEFT
(Superseded to Discontinued)

$

$

Not available

33

Echo 35164208130

BAND
(Superseded to Discontinued)

$

$

Not available

34

Echo 90010006012

BOLT - 6×12

$0.99

$

Usually ships in 2-4 days

0

44

Echo 35161008130

HANDLE, FRONT
(Superseded to Discontinued)

$

$

Not available

45

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 1 left!

0

50

Echo 30100051830

SHOULDER STRAP ASSY
(Superseded to 30100051831)

Note: (USA)

$65.99

$

In Stock, Qty 9

0

50

Echo 30100049730

SHOULDER STRAP ASSY
(Superseded to 30100049731)

Note: CANADA MODEL

$208.99

$

Usually ships in 2-4 days

0
