SRM-4605 - Echo Brush Cutter (SN: 20001001 - 20999999) Air Filter, Intake Parts Diagram

Brush Cutter

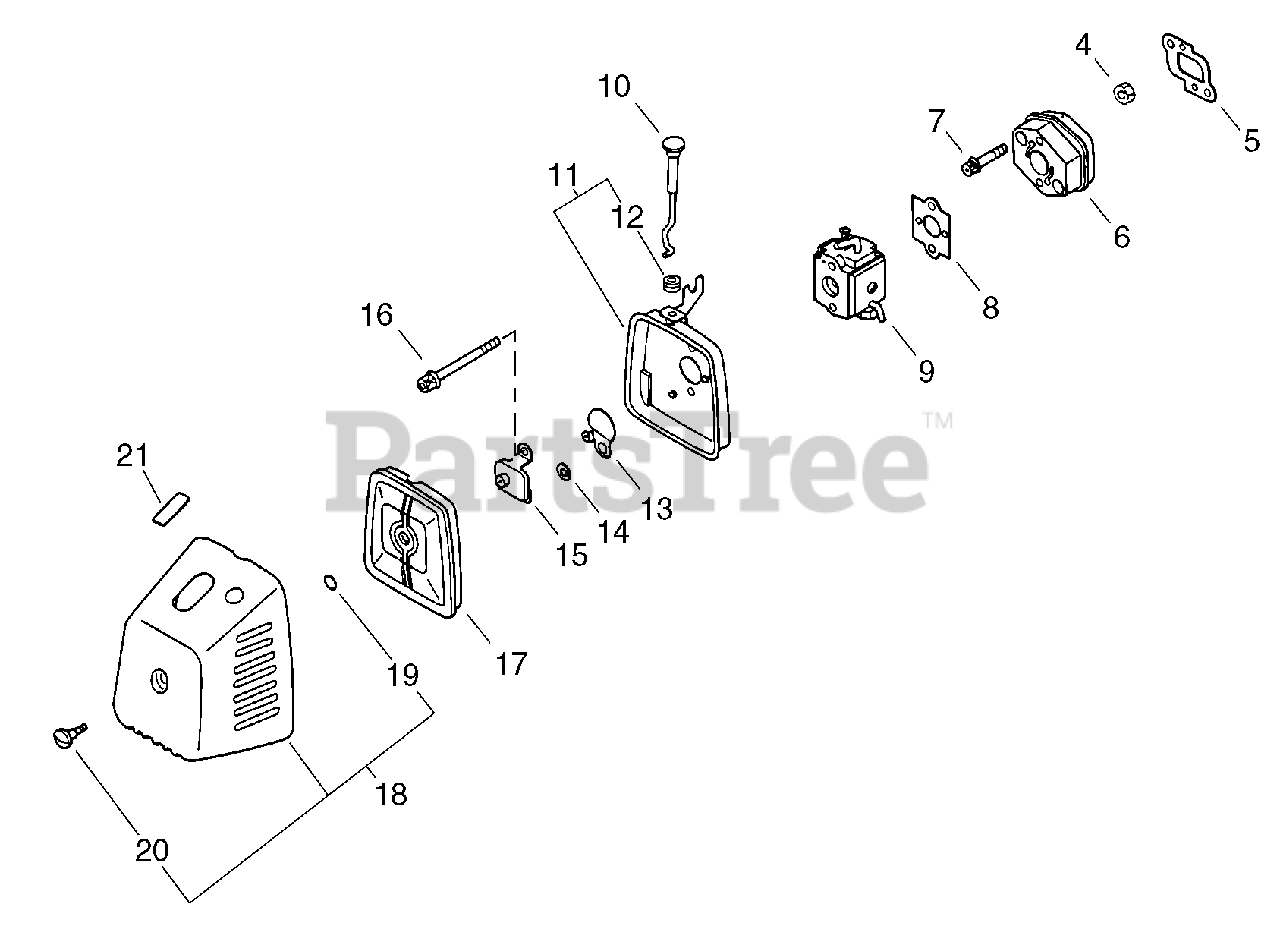

Air Filter, Intake Parts Diagram

  • Title

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

5

Echo 13001642231

GASKET, INTAKE

$1.49

$

In Stock, Qty 5

0

6

Echo 13001743130

INSULATOR, INTAKE

$6.49

$

Usually ships in 2-4 days

0

7

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

8

Echo 13001606232

GASKET, CARBURETOR

$0.99

$

In Stock, Qty 7

0

------------------

CARBURETOR - WT-120B

Note: See Carburetor Diagram For Details

$

$

Not available

10

Echo 17851047530

ROD, CHOKE

$6.49

$

Usually ships in 2-4 days

0

11

Echo 13030143130

CASE ASSY, AIR FILTER

$11.99

$

Usually ships in 2-4 days

0

12

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

13

Echo 17851543130

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

14

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

15

Echo 12900643130

PLATE

$5.49

$

Usually ships in 2-4 days

0

16

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

17

Echo 13031043130

FILTER, AIR

$9.99

$

In Stock, Qty 7

0

18

Echo 13030243132

COVER ASSY, AIR FILTER

$18.99

$

Usually ships in 2-4 days

0

19

Echo 90072000004

O-RING

$1.99

$

In Stock, Qty 13

0

20

Echo 13041540630

SCREW

$3.49

$

In Stock, only 1 left!

0

21

Echo 89012147530

LABEL, CHOKE

$4.99

$

In Stock, only 1 left!

0
