SRM-4605 - Echo Brush Cutter (SN: 20001001 - 20999999) Clutch, Flywheel, Ignition Parts Diagram

Brush Cutter

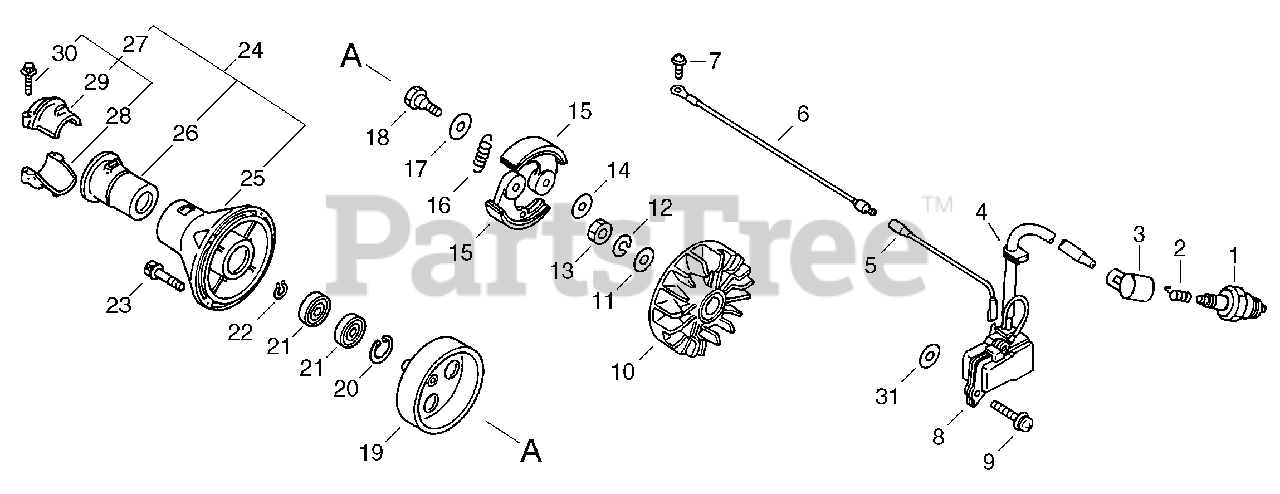

Clutch, Flywheel, Ignition Parts Diagram

  • Title

1

Echo 15901710230

SPARK PLUG -- RCJ-7Y

$4.99

$

In Stock, Qty 20+

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 11

0

3

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 3 left!

0

4

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 17

0

5

Echo 16202142230

LEAD - IGNITION

$4.99

$

Usually ships in 2-4 days

0

6

Echo 15663543130

LEAD - GROUND

$1.99

$

In Stock, Qty 11

0

7

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

8

Echo 15660112920

COIL, IGNITION
(Superseded to 15660112921)

$160.99

$

Usually ships in 2-4 days

0

9

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 10

0

10

Echo 15680142230

FLYWHEEL

$141.99

$

Usually ships in 2-4 days

0

11

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 9

0

12

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 6

0

13

Echo 90050300010

NUT - 10

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17504903920

WASHER

$1.99

$

In Stock, Qty 10

0

15

Echo 17500942231

SHOE, CLUTCH

$31.99

$

Usually ships in 2-4 days

0

16

Echo 17501842230

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

17

Echo 17504803920

WASHER

$1.99

$

In Stock, Qty 5

0

18

Echo 17504606230

BOLT, CLUTCH

$11.99

$

Usually ships in 2-4 days

0

19

Echo 17500543130

DRUM, CLUTCH
(Superseded to A556000181)

$81.99

$

Usually ships in 2-4 days

0

20

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

21

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

22

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

23

Echo 9111805020

SCREW - 5X20

$1.49

$

Usually ships in 2-4 days

0

24

Echo P021012920

FAN CASE ASSY

$101.99

$

Usually ships in 2-4 days

0

25

Echo 61020543131

CASE, FAN

$51.99

$

Usually ships in 2-4 days

0

26

Echo 61091051830

CUSHION

$12.99

$

In Stock, only 1 left!

0

27

Echo P021012810

MAIN PIPE CLAMP KIT

$22.99

$

Usually ships in 2-4 days

0

28

Echo 61092255630

CLAMP, MAIN PIPE - LOWER

$7.49

$

Usually ships in 2-4 days

0

29

Echo 61092243130

CLAMP, MAIN PIPE - UPPER

$7.99

$

Usually ships in 2-4 days

0

30

Echo 9111805025

SCREW - 5X25

$1.49

$

Usually ships in 2-4 days

0

31

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0
