SRM-4605 - Echo Brush Cutter (SN: 20001001 - 20999999) Piston, Cylinder Parts Diagram

Brush Cutter

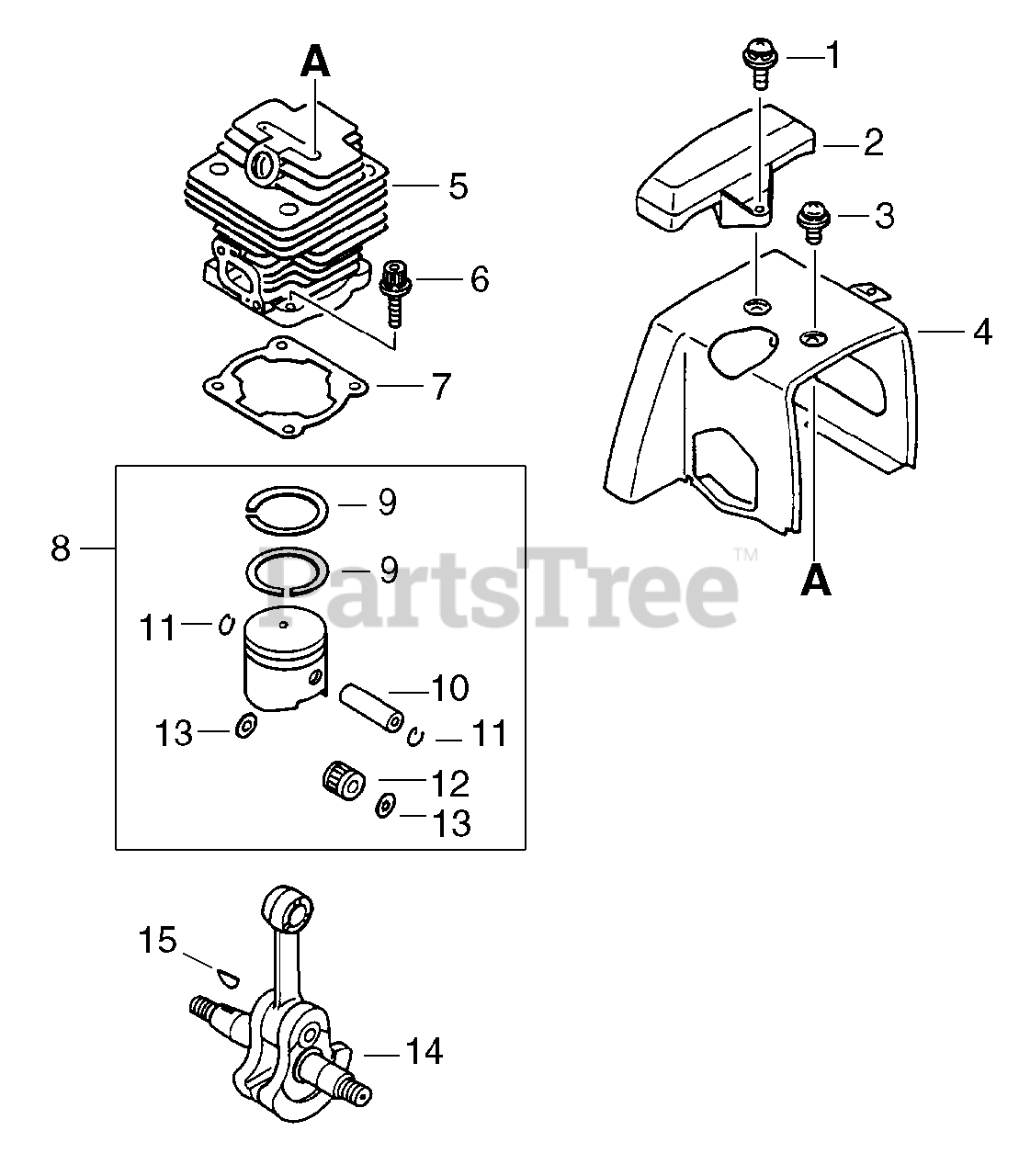

Piston, Cylinder Parts Diagram

  • Title

1

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11

0

2

Echo 15990543130

GUARD, TOP

$13.99

$

Usually ships in 2-4 days

0

3

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

4

Echo 10151442230

COVER, ENGINE

$11.99

$

Usually ships in 2-4 days

0

5

Echo 10101147530

CYLINDER

$165.99

$

Usually ships in 2-4 days

0

6

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

7

Echo 10101042231

GASKET, CYLINDER

$2.49

$

Usually ships in 2-4 days

0

8

Echo P021015770

PISTON KIT
(Superseded to P021015771)

$105.99

$

Usually ships in 2-4 days

0

9

Echo 10001143230

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

10

Echo 100013-00410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

11

Echo V580000010

RING, SNAP Ø10

$0.99

$

Usually ships in 2-4 days

0

12

Echo 10001212331

BEARING, NEEDLE 10

$13.99

$

In Stock, only 2 left!

0

13

Echo V307000050

WASHER, THRUST 10

$5.99

$

In Stock, only 3 left!

0

14

Echo 10010043130

CRANKSHAFT ASSY

$265.99

$

Usually ships in 2-4 days

0

15

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0
