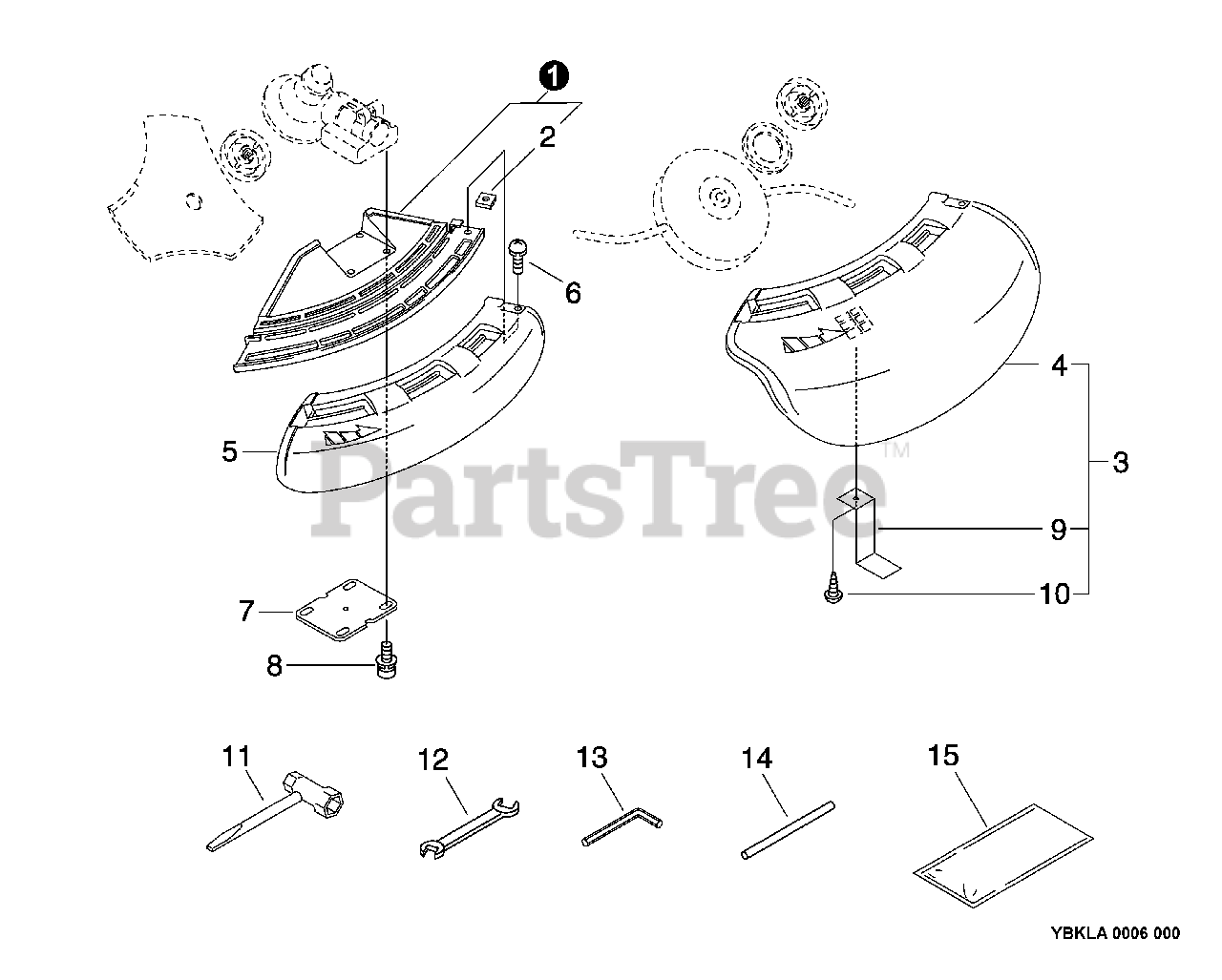

SRM-4605 U - Echo Brush Cutter (SN: S98426001001 - S98426999999) Debris Shield, Tools Parts Diagram

Brush Cutter

Debris Shield, Tools Parts Diagram

  • Title

1

Echo C550000102

BRACKET ASSY, SHIELD

Note: Includes ITEM 2 Use With BLADES

$18.99

$

Usually ships in 2-4 days

0

2

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

3

Echo P021045120

DEBRIS SHIELD KIT

Note: Includes ITEMS 4, 9, 10 Use With TRIMMER HEADS

$28.99

$

Usually ships in 2-4 days

0

4

Echo C550000082

SHIELD, DEBRIS

$31.99

$

Usually ships in 2-4 days

0

9

Echo C554000001

CUTTER, LINE
(Superseded to C554000002)

$18.99

$

In Stock, only 2 left!

0

10

Echo 90025205012

SCREW, TAPPING 5×12

$0.99

$

Usually ships in 2-4 days

0

5

Echo C550000092

SHIELD, BLADE

$24.99

$

Usually ships in 2-4 days

0

6

Echo 9111805022

BOLT 5×22

$1.49

$

Usually ships in 2-4 days

0

7

Echo C552000200

PLATE, SHIELD

$4.49

$

Usually ships in 2-4 days

0

8

Echo V203001980

BOLT 5×25

$1.99

$

Usually ships in 2-4 days

0

11

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

12

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

13

Echo X605000100

WRENCH, ALLEN 4 MM

$1.99

$

In Stock, only 3 left!

0

14

Echo X606000080

TOOL, LOCKING 5×120 MM

$1.99

$

In Stock, Qty 8

0

15

Echo 89851007130

BAG, TOOL
(Superseded to 89851039130)

$1.99

$

In Stock, only 3 left!

0
