SRM-4605 U - Echo Brush Cutter (SN: S98426001001 - S98426999999) Engine, Engine Cover Parts Diagram

Brush Cutter

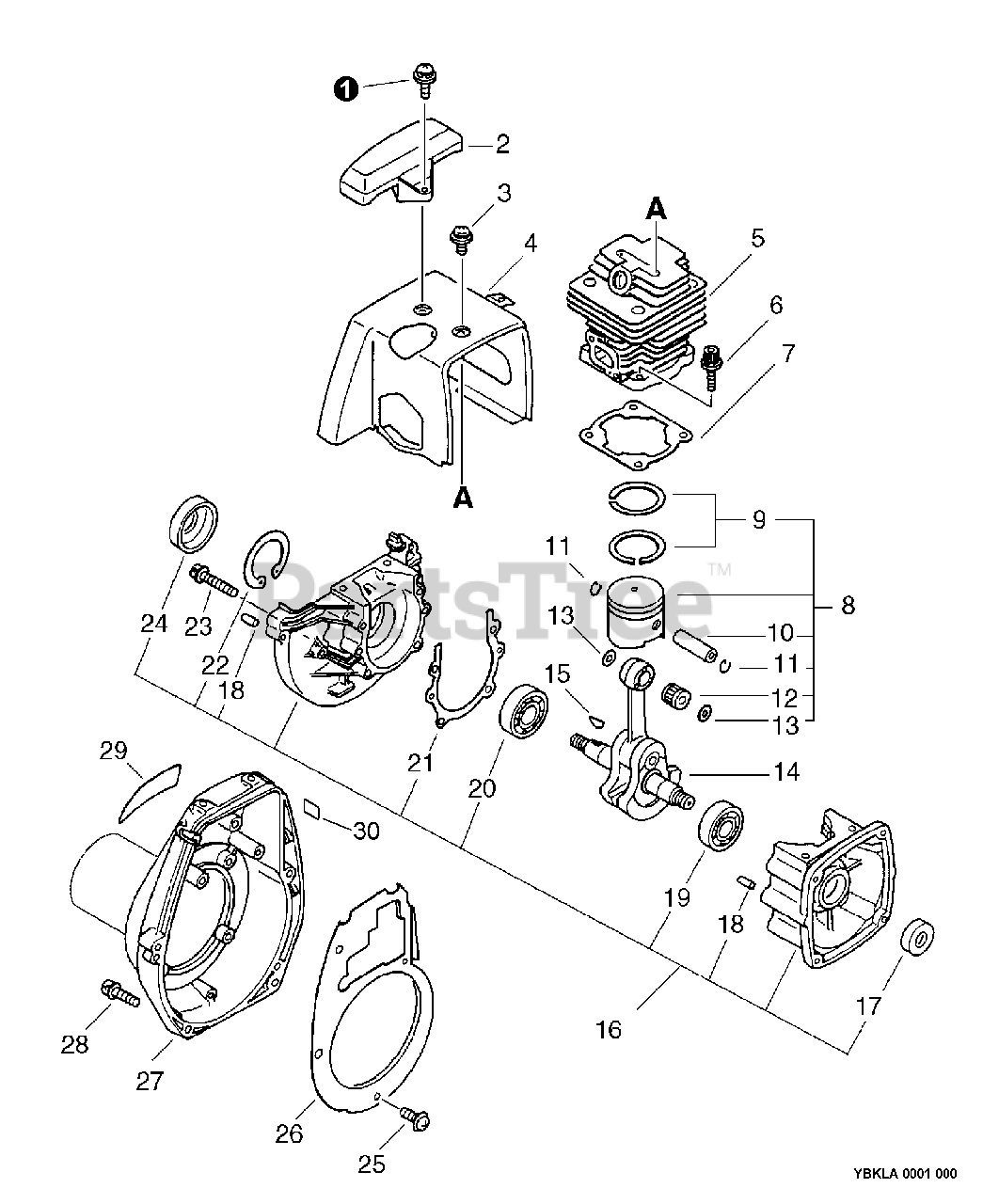

Engine, Engine Cover Parts Diagram

  • Title

1

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11

0

2

Echo 15990543130

GUARD, TOP

$13.99

$

Usually ships in 2-4 days

0

3

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

4

Echo 10151442230

COVER, ENGINE

$11.99

$

Usually ships in 2-4 days

0

5

Echo 10101147530

CYLINDER

$165.99

$

Usually ships in 2-4 days

0

6

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

7

Echo 10101042231

GASKET, CYLINDER

$2.49

$

Usually ships in 2-4 days

0

8

Echo P021015771

PISTON KIT

Note: Includes ITEMS 9-13

$105.99

$

Usually ships in 2-4 days

0

9

Echo 10001143230

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

10

Echo 100013-00410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

11

Echo V580000010

RING, SNAP Ø10

$0.99

$

Usually ships in 2-4 days

0

12

Echo 10001212331

BEARING, NEEDLE 10

$13.99

$

In Stock, only 2 left!

0

13

Echo V307000050

WASHER, THRUST 10

$5.99

$

In Stock, only 3 left!

0

14

Echo 10010043130

CRANKSHAFT ASSY

$265.99

$

Usually ships in 2-4 days

0

15

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0

16

Echo 10020442230

CRANKCASE KIT

Note: Includes ITEMS 17-24

$480.99

$

Usually ships in 2-4 days

0

17

Echo 10021227930

SEAL, OIL 12

$6.49

$

Usually ships in 2-4 days

0

18

Echo 90033050100

PIN, LOCATING 5×10

$1.49

$

Usually ships in 2-4 days

0

19

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

20

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

21

Echo 10024242230

GASKET, CRANKCASE

$1.99

$

Usually ships in 2-4 days

0

22

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

23

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

24

Echo 100213-02830

SEAL, OIL 18

$7.99

$

In Stock, only 1 left!

0

25

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

26

Echo 10153442231

SHIELD, FAN

$12.99

$

Usually ships in 2-4 days

0

27

Echo A172002550

COVER, FAN

$75.99

$

Usually ships in 2-4 days

0

28

Echo 9111805025

BOLT 5×25

$1.49

$

Usually ships in 2-4 days

0

29

Echo X547001110

LABEL - MODEL SRM-4605

$4.49

$

Usually ships in 2-4 days

0

30

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 2 left!

0
