SRM-4605 U - Echo Brush Cutter (SN: S98426001001 - S98426999999) Engine, Engine Cover Parts Diagram

Brush Cutter

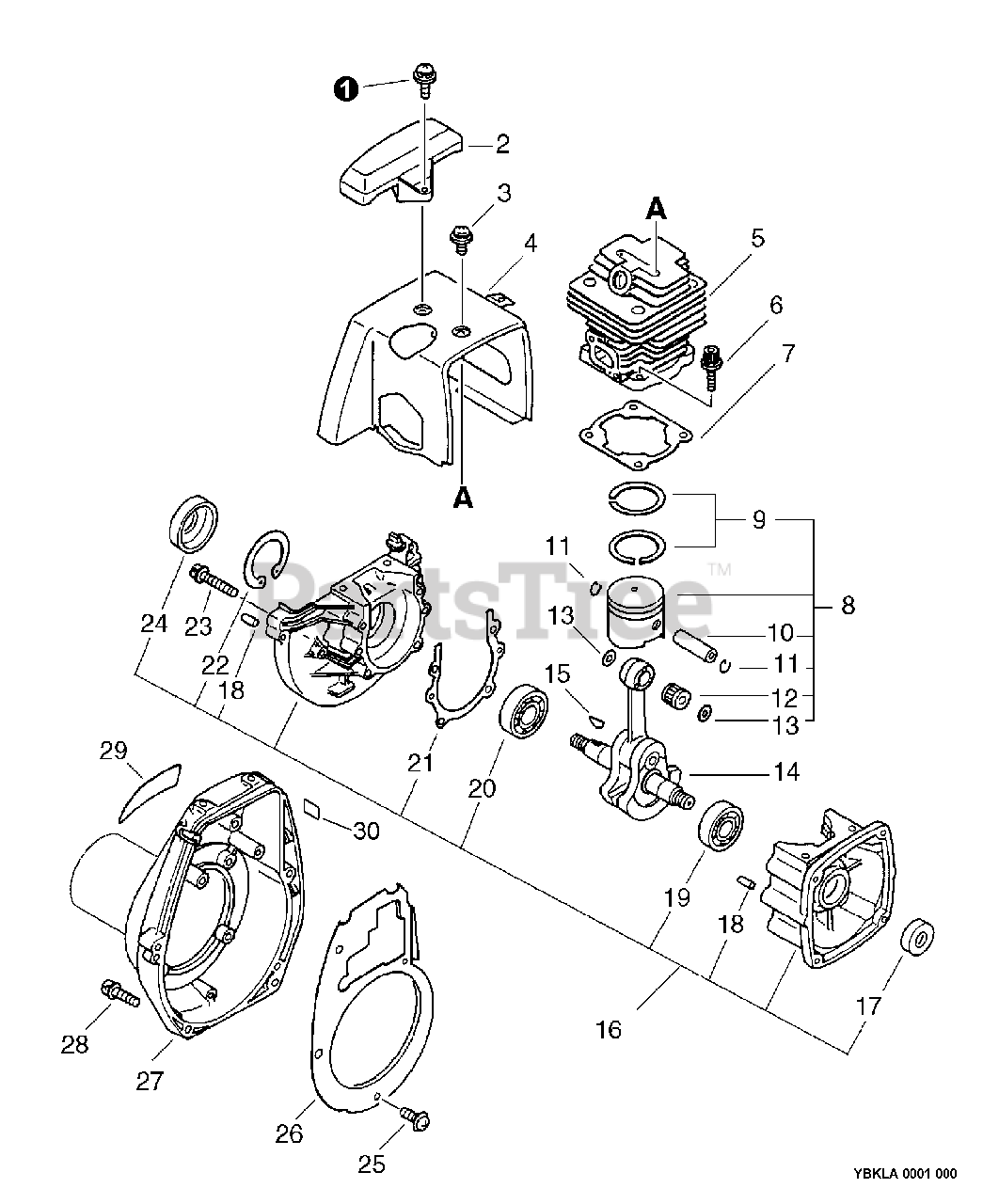

Engine, Engine Cover Parts Diagram

  • Title

1

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 15

0

2

Echo 15990543130

GUARD - TOP

$11.99

$

Usually ships in 2-4 days

0

3

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

4

Echo 10151442230

COVER, ENGINE

$9.99

$

Usually ships in 2-4 days

0

5

Echo 10101147530

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

6

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

7

Echo 10101042231

GASKET, CYLINDER

$1.99

$

Usually ships in 2-4 days

0

8

Echo P021015771

PISTON KIT

Note: Includes ITEMS 9-13

$98.99

$

Usually ships in 2-4 days

0

9

Echo 10001143230

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

10

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

11

Echo V580000010

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0

12

Echo 10001212331

BEARING, NEEDLE

$10.99

$

In Stock, Qty 11

0

13

Echo V307000050

WASHER - 10

$4.99

$

In Stock, only 3 left!

0

14

Echo 10010043130

CRANKSHAFT ASSY

$221.99

$

Usually ships in 2-4 days

0

15

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 20+

0

16

Echo 10020442230

CRANKCASE KIT

Note: Includes ITEMS 17-24

$400.99

$

Usually ships in 2-4 days

0

17

Echo 10021227930

SEAL, OIL - 12

$5.49

$

Usually ships in 2-4 days

0

18

Echo 90033050100

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

19

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

20

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

21

Echo 10024242230

GASKET, CRANKCASE

$1.99

$

Usually ships in 2-4 days

0

22

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 16

0

23

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 5

0

24

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

25

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

26

Echo 10153442231

SHIELD, FAN

$10.99

$

Usually ships in 2-4 days

0

27

Echo A172002550

CASE, FAN

$62.99

$

Usually ships in 2-4 days

0

28

Echo 9111805025

SCREW - 5X25

$0.99

$

Usually ships in 2-4 days

0

29

Echo X547001110

LABEL - MODEL SRM-4605U

$3.99

$

Usually ships in 2-4 days

0

30

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0
