SRM-4605 U - Echo Brush Cutter (SN: S98426001001 - S98426999999) Gear Case Parts Diagram

Brush Cutter

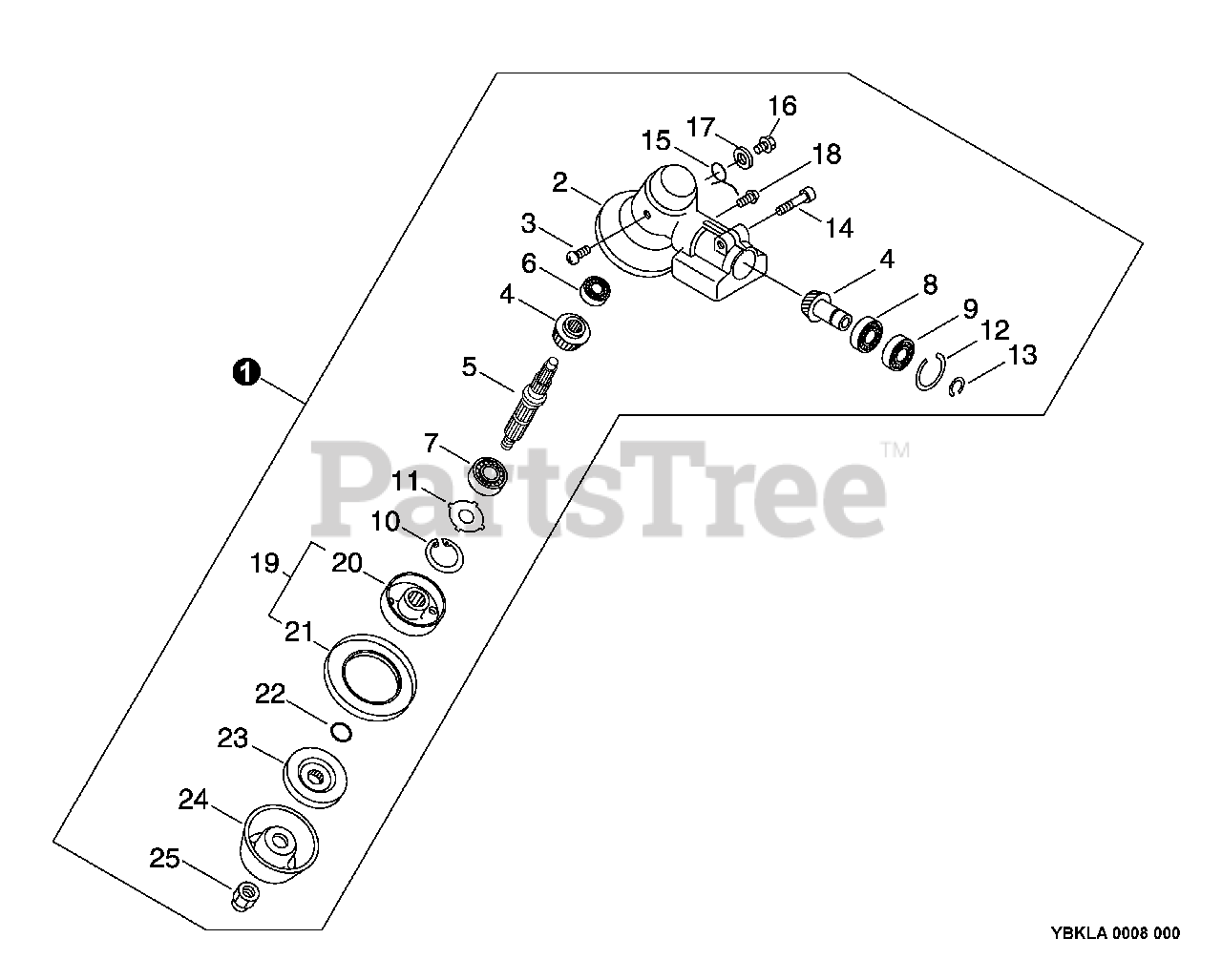

Gear Case Parts Diagram

  • Title

1

Echo P021012593

GEAR CASE ASSY

Note: Includes ITEMS 2-25

$204.99

$

Usually ships in 2-4 days

0

2

Echo 61041056932

CASE, GEAR
(Superseded to P021044790)

$74.99

$

Usually ships in 2-4 days

0

3

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 5

0

4

Echo 61030056930

GEAR SET

$140.99

$

Usually ships in 2-4 days

0

5

Echo 61031056933

GEAR - SHAFT

$50.99

$

Usually ships in 2-4 days

0

6

Echo 90081000629

BEARING, BALL - 629

$18.99

$

In Stock, only 2 left!

0

7

Echo 90081206201

BEARING, BALL - 6201

$14.99

$

In Stock, only 4 left!

0

8

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 20+

0

9

Echo 90080306001

BEARING, BALL - 6001

$19.99

$

Usually ships in 2-4 days

0

10

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

11

Echo 61044456830

WASHER

$1.99

$

Usually ships in 2-4 days

0

12

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

13

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

14

Echo 9111806030

SCREW - 6X30

$1.99

$

Usually ships in 2-4 days

0

15

Echo V452001310

SPRING

$8.49

$

Usually ships in 2-4 days

0

16

Echo 61043450031

BOLT - 8X8

$2.49

$

In Stock, only 4 left!

0

17

Echo 90060350008

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

18

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

19

Echo 61031352932

BLADE ADAPTER KIT
(Superseded to P050010710)

Note: Includes ITEMS 20-21

$38.99

$

Usually ships in 2-4 days

0

20

Echo 61031352132

ADAPTOR, BLADE - UPPER
(Superseded to C535000011)

$41.99

$

Usually ships in 2-4 days

0

21

Echo 61035256830

GUARD - UPPER

$27.99

$

Usually ships in 2-4 days

0

22

Echo 90072000012

O-RING - 12

$1.99

$

In Stock, only 1 left!

0

23

Echo 61031452130

ADAPTOR, BLADE - LOWER

$27.99

$

Usually ships in 2-4 days

0

24

Echo 69922956830

GUARD

$26.99

$

Usually ships in 2-4 days

0

25

Echo 61032052130

NUT - 10

$5.99

$

Usually ships in 2-4 days

0
