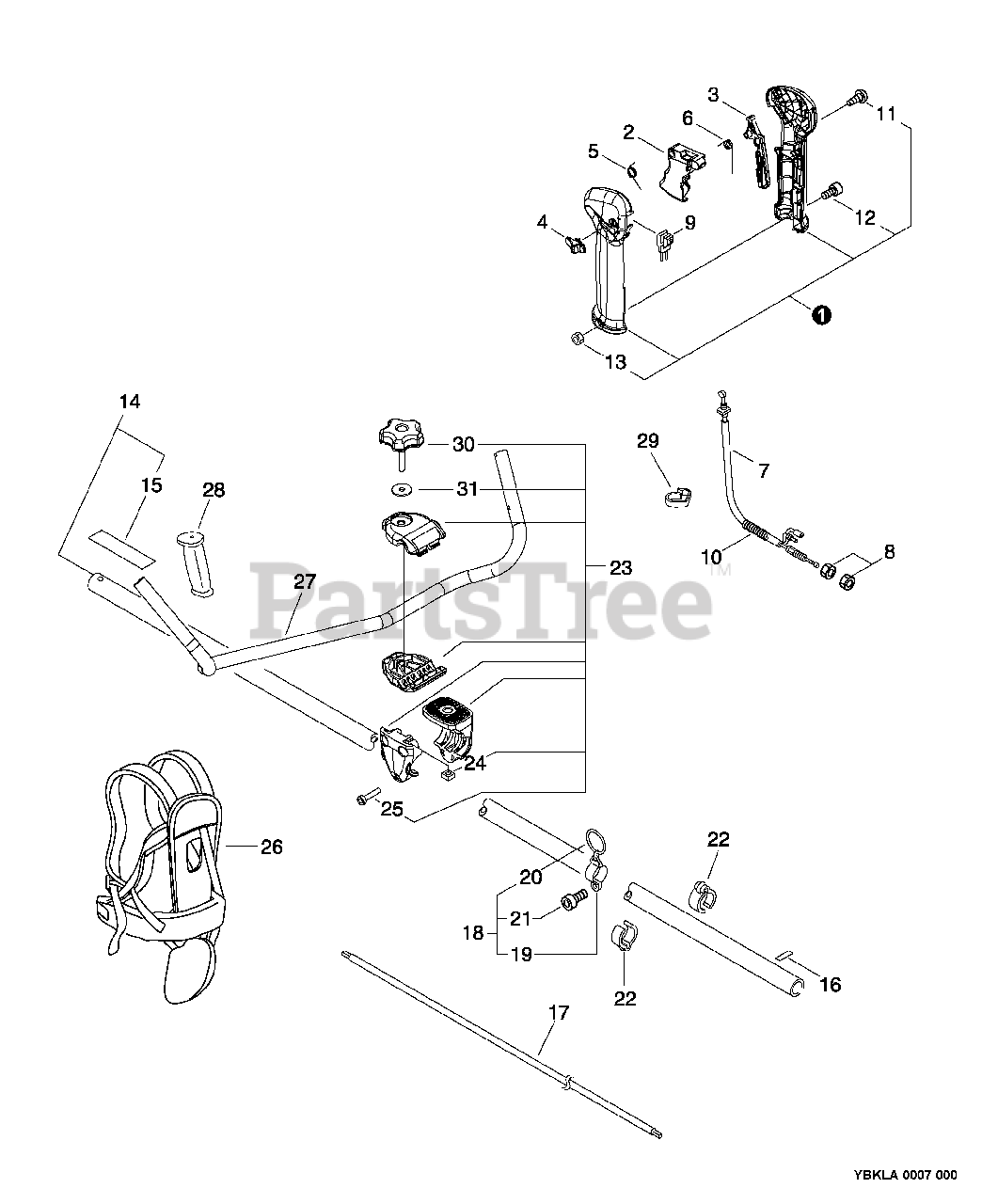

SRM-4605 U - Echo Brush Cutter (SN: S98426001001 - S98426999999) Handle, Main Pipe, Throttle Control Parts Diagram

Brush Cutter

Handle, Main Pipe, Throttle Control Parts Diagram

  • Title

1

Echo P021014090

THROTTLE CONTROL ASSY

Note: Includes ITEMS 11-13

$45.99

$

Usually ships in 2-4 days

0

11

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

12

Echo 9111905030

BOLT

$1.49

$

Usually ships in 2-4 days

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

2

Echo C450000270

TRIGGER, THROTTLE

$8.99

$

Usually ships in 2-4 days

0

3

Echo C460000111

LOCKOUT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

4

Echo C463000020

LATCH

$2.49

$

Usually ships in 2-4 days

0

5

Echo V452000360

SPRING, TORSION

$2.49

$

Usually ships in 2-4 days

0

6

Echo V452000350

SPRING, TORSION

$2.49

$

Usually ships in 2-4 days

0

7

Echo V430002350

CABLE, THROTTLE

$12.99

$

Usually ships in 2-4 days

0

8

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

9

Echo 16340048030

SWITCH, ON-OFF
(Superseded to A440000310)

$12.99

$

Usually ships in 2-4 days

0

10

Echo V475007500

TUBE

$3.99

$

Usually ships in 2-4 days

0

14

Echo P021044250

MAIN PIPE ASSY

Note: Includes ITEM 15

$88.99

$

Usually ships in 2-4 days

0

15

Echo 890617-43130

LABEL, CAUTION - ISO

$27.99

$

Usually ships in 2-4 days

0

16

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

17

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

18

Echo P021012660

HANGER ASSY, HARNESS
(Superseded to P021012661)

Note: Includes ITEMS 19-21

$6.99

$

In Stock, only 3 left!

0

19

Echo 30121004630

HANGER, HARNESS
(Superseded to 30121004631)

$5.49

$

Usually ships in 2-4 days

0

20

Echo 30101505330

RING, HARNESS

$4.99

$

Usually ships in 2-4 days

0

21

Echo 9111905012

BOLT 5×12

$1.49

$

Usually ships in 2-4 days

0

22

Echo 22492452930

CLIP 28 MM

$10.99

$

Usually ships in 2-4 days

0

23

Echo P021012742

MOUNTING KIT, HANDLEBAR

Note: Includes ITEMS 24-31

$110.99

$

In Stock, only 2 left!

0

24

Echo 90056550008

NUT 8×1.25

$1.49

$

Usually ships in 2-4 days

0

25

Echo 9111805030

BOLT 5×30

$1.49

$

Usually ships in 2-4 days

0

30

Echo V299000110

KNOB, SCREW M8

$15.99

$

Usually ships in 2-4 days

0

31

Echo 60501454230

WASHER 8

$4.49

$

Usually ships in 2-4 days

0

26

Echo C062000194

HARNESS, BRUSHCUTTER
(Superseded to C062000184)

$68.99

$

Usually ships in 2-4 days

0

27

Echo C400000000

HANDLEBAR

$102.99

$

Usually ships in 2-4 days

0

28

Echo C403000031

GRIP, HANDLE

$11.99

$

Usually ships in 2-4 days

0

29

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0
