SRM-4605 U - Echo Brush Cutter (SN: S98426001001 - S98426999999) Handle, Main Pipe, Throttle Control Parts Diagram

Brush Cutter

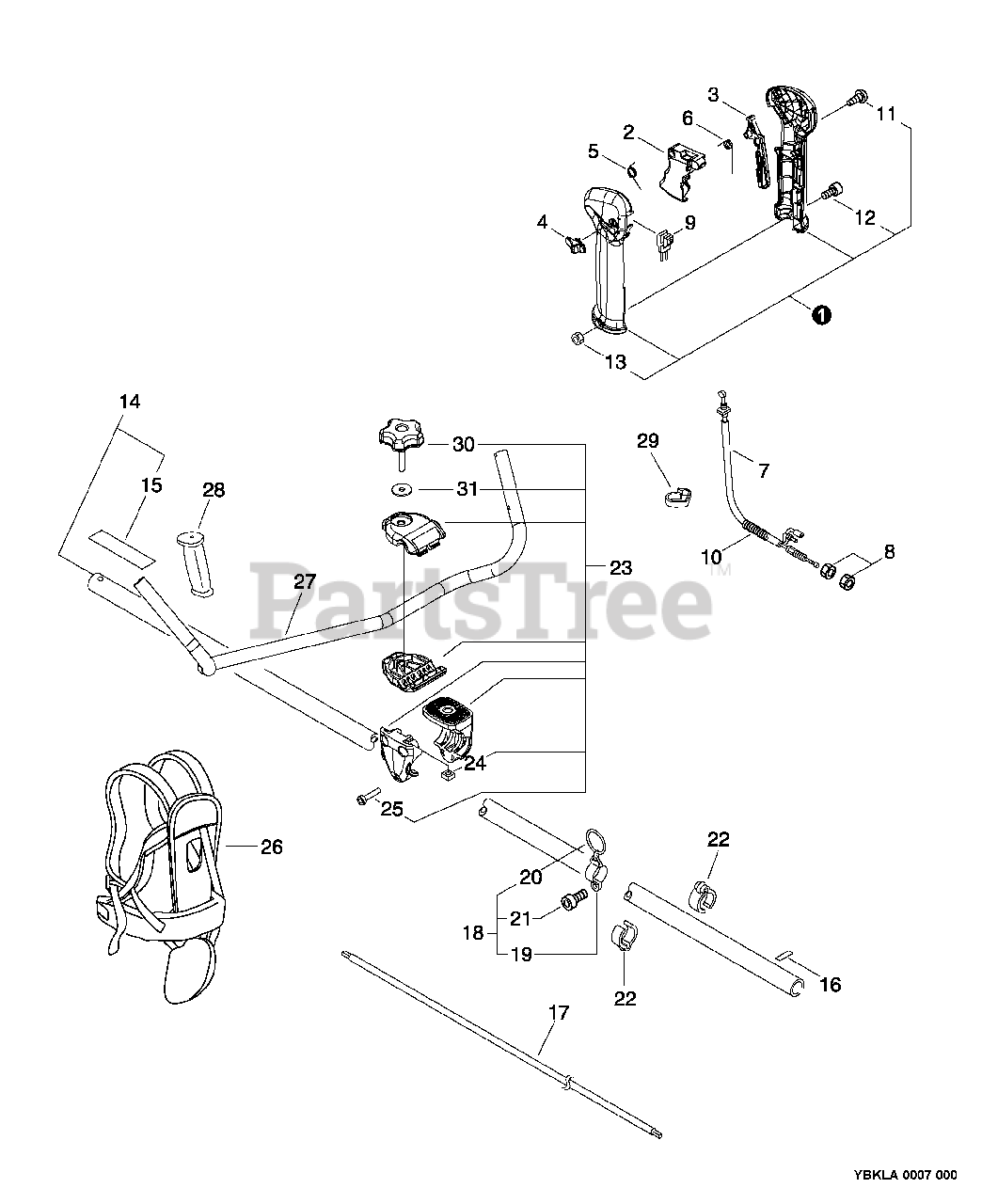

Handle, Main Pipe, Throttle Control Parts Diagram

  • Title

1

Echo P021014090

CONTROL HANDLE ASSY

Note: Includes ITEMS 11-13

$41.99

$

Usually ships in 2-4 days

0

11

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 16

0

12

Echo 9111905030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

2

Echo C450000270

TRIGGER, THROTTLE

$8.49

$

Usually ships in 2-4 days

0

3

Echo C460000111

LEVER, TRIGGER LOCKOUT

$4.99

$

Usually ships in 2-4 days

0

4

Echo C463000020

LOCK, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

5

Echo V452000360

SPRING, TRIGGER

$2.49

$

Usually ships in 2-4 days

0

6

Echo V452000350

SPRING, LOCKOUT LEVER

$2.49

$

Usually ships in 2-4 days

0

7

Echo V430002350

CABLE, THROTTLE

$11.99

$

Usually ships in 2-4 days

0

8

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo 16340048030

IGNITION SWITCH ASSY
(Superseded to A440000310)

$11.99

$

Usually ships in 2-4 days

0

10

Echo V475007500

TUBE

$3.49

$

Usually ships in 2-4 days

0

14

Echo P021044250

MAIN PIPE ASSY

Note: Includes ITEM 15

$82.99

$

Usually ships in 2-4 days

0

15

Echo 89061743130

LABEL - CAUTION

$25.99

$

Usually ships in 2-4 days

0

16

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 18

0

17

Echo 61001106230

DRIVESHAFT - SOLID

$51.99

$

Usually ships in 2-4 days

0

18

Echo P021012660

HANGER ASSY
(Superseded to P021012661)

Note: Includes ITEMS 19-21

$6.49

$

In Stock, only 2 left!

0

19

Echo 30121004630

CLAMP
(Superseded to 30121004631)

$4.99

$

Usually ships in 2-4 days

0

20

Echo 30101505330

RING

$4.99

$

Usually ships in 2-4 days

0

21

Echo 9111905012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

22

Echo 22492452930

CLIP

$9.99

$

Usually ships in 2-4 days

0

23

Echo P021012742

HANDLE BRACKET KIT

Note: Includes ITEMS 24-31

$102.99

$

In Stock, only 1 left!

0

24

Echo 90056550008

NUT - 8

$1.49

$

Usually ships in 2-4 days

0

25

Echo 9111805030

SCREW - 5X30

$1.49

$

Usually ships in 2-4 days

0

30

Echo V299000110

THUMBSCREW

$14.99

$

Usually ships in 2-4 days

0

31

Echo 60501454230

WASHER - 8

$3.99

$

Usually ships in 2-4 days

0

26

Echo C062000194

HARNESS ASSY
(Superseded to C062000184)

$63.99

$

In Stock, only 2 left!

0

27

Echo C400000000

HANDLE - FRONT

$95.99

$

Usually ships in 2-4 days

0

28

Echo C403000031

GRIP, HANDLE

$10.99

$

Usually ships in 2-4 days

0

29

Echo 15911209961

CLIP

$4.49

$

Usually ships in 2-4 days

0
