SRM-4605 U - Echo Brush Cutter (SN: S98426001001 - S98426999999) Starter Parts Diagram

Brush Cutter

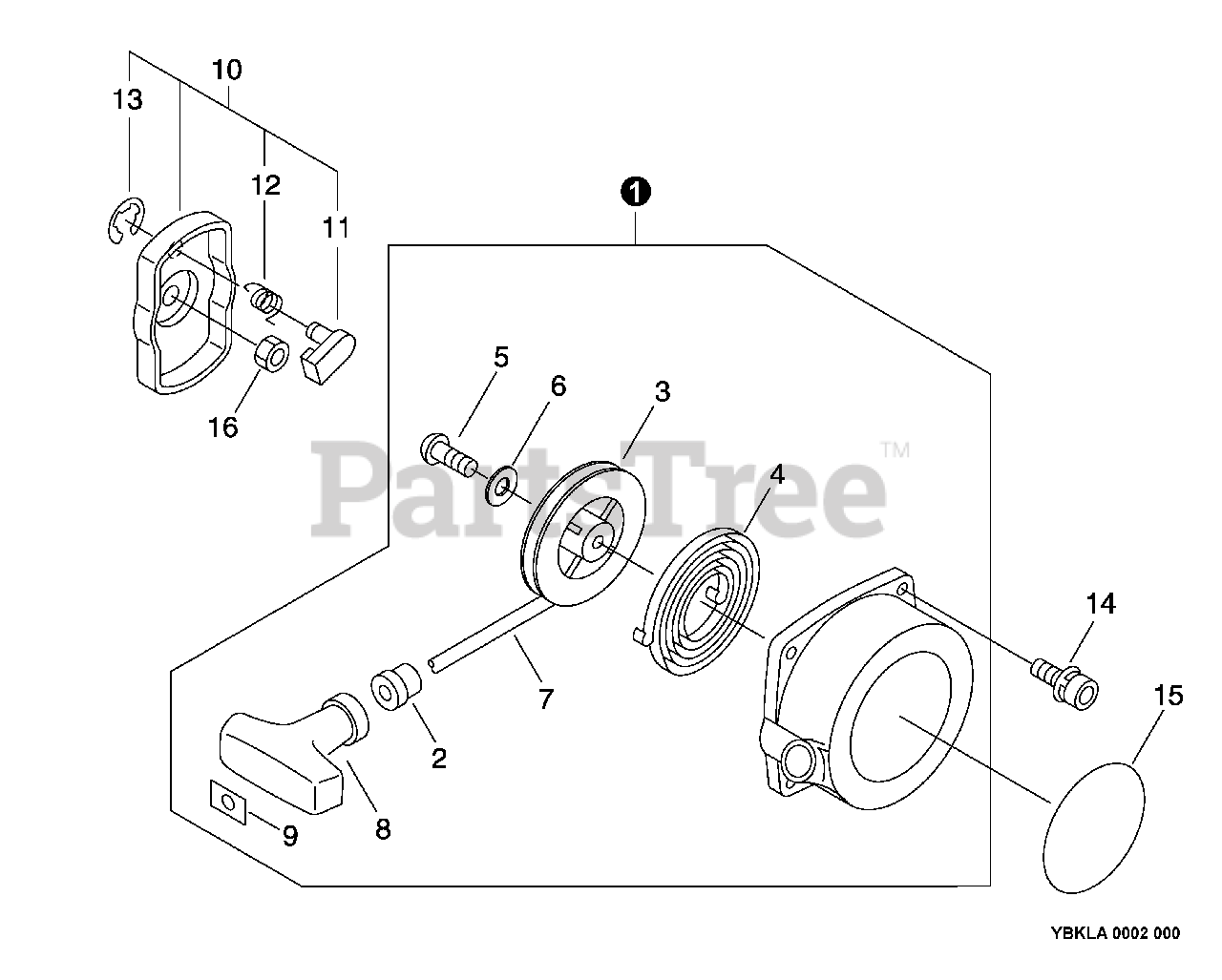

Starter Parts Diagram

  • Title

1

Echo A051000170

STARTER ASSY, RECOIL

Note: Includes ITEMS 2-9

$74.99

$

Usually ships in 2-4 days

0

2

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

3

Echo 17721543130

REEL, ROPE

$16.99

$

In Stock, only 2 left!

0

4

Echo 17722040630

SPRING, RECOIL

$15.99

$

In Stock, only 1 left!

0

5

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

6

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

7

Echo 17722601110

ROPE, STARTER 4.0×880

$6.99

$

Usually ships in 2-4 days

0

8

Echo 17722811120

GRIP, STARTER

$6.99

$

Usually ships in 2-4 days

0

9

Echo 177246-11120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

10

Echo A052000370

PULLEY ASSY, STARTER

Note: Includes ITEMS 11-13

$14.99

$

In Stock, Qty 8

0

11

Echo A514000080

PAWL, STARTER
(Superseded to 17721840630)

$3.49

$

In Stock, Qty 20+

0

12

Echo V452000520

SPRING, RETURN
(Superseded to 17723440630)

$3.99

$

Usually ships in 2-4 days

0

13

Echo V583000140

E-RING 4
(Superseded to P022002100)

$0.99

$

In Stock, only 3 left!

0

14

Echo 9111804020

BOLT 4×20

$1.49

$

Usually ships in 2-4 days

0

15

Echo X502000780

LABEL, ECHO

$4.49

$

Usually ships in 2-4 days

0

16

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0
