SRM-520 ES AR - Echo Brush Cutter (SN: U14926001001 - U14926999999) Clutch Parts Diagram

Brush Cutter

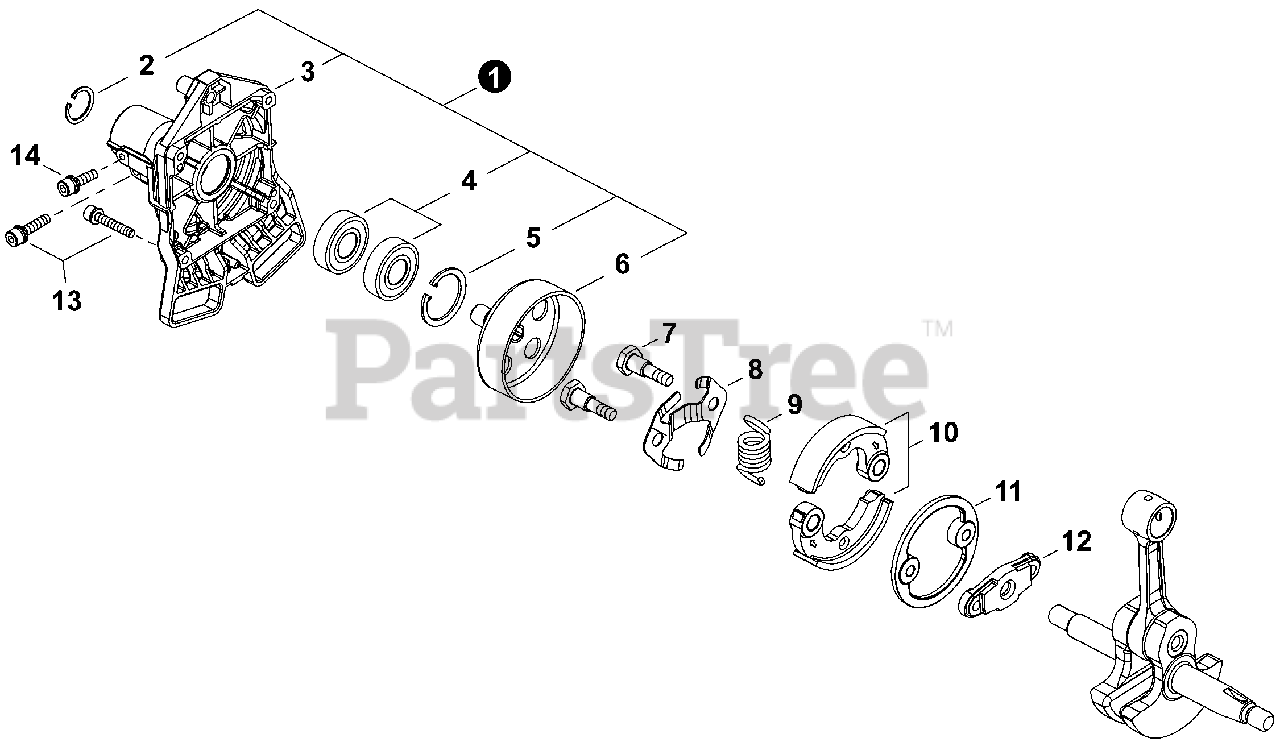

Clutch Parts Diagram

  • Title

1

Echo P100006140

CASE ASSY, CLUTCH

Note: Includes iitems 2-6

$174.99

$

Usually ships in 2-4 days

0

2

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

3

Echo A570000291

CASE, CLUTCH

$81.99

$

Usually ships in 2-4 days

0

4

Echo 9401846001

BEARING, BALL

$9.49

$

Usually ships in 2-4 days

0

5

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

6

Echo A556000181

DRUM, CLUTCH

$81.99

$

Usually ships in 2-4 days

0

7

Echo A557000200

BOLT, CLUTCH

$7.49

$

Usually ships in 2-4 days

0

8

Echo V453000100

SPRING, FLAT

$12.99

$

Usually ships in 2-4 days

0

9

Echo A566000260

SPRING, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

10

Echo P100000100

CLUTCH SHOE SET

$46.99

$

Usually ships in 2-4 days

0

11

Echo V376001650

SPACER

$13.99

$

Usually ships in 2-4 days

0

12

Echo 17501654430

HUB, CLUTCH

$52.99

$

Usually ships in 2-4 days

0

13

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000130

BOLT, TORX 5x10

$0.99

$

In Stock, Qty 20+

0
