SRM-520 ES/U - Echo Brush Cutter (SN: U70926001001 - U70926999999) Gear Case Parts Diagram

Brush Cutter

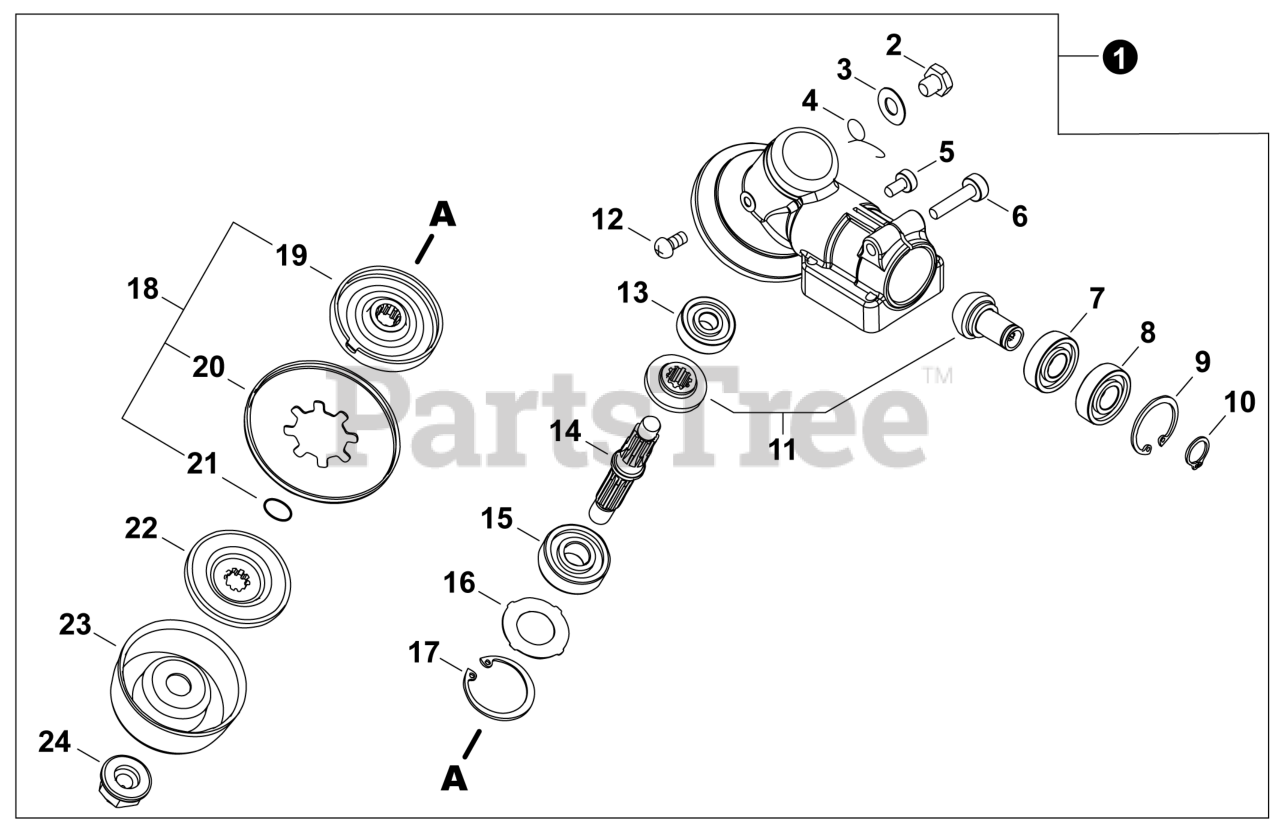

Gear Case Parts Diagram

  • Title

1

Echo P021041342

CASE, GEAR

Note: Includes iitems 2-24

$230.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT M8x8

$2.49

$

In Stock, only 4 left!

0

3

Echo 90060350008

WASHER 8.5x18x0.8T

$1.99

$

Usually ships in 2-4 days

0

4

Echo V452001310

SPRING, TORSION

$8.49

$

Usually ships in 2-4 days

0

5

Echo V805000130

BOLT, TORX 5x10

$0.99

$

In Stock, Qty 20+

0

6

Echo V806000100

BOLT, TORX 6x30

$2.99

$

Usually ships in 2-4 days

0

7

Echo 9406006001

BEARING, BALL 6001
(Superseded to 90080706001)

$13.99

$

In Stock, only 2 left!

0

8

Echo 9406306001

BEARING, BALL 6001Z
(Superseded to 90080306001)

$19.99

$

Usually ships in 2-4 days

0

9

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

10

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

11

Echo 61030056930

GEAR SET

$140.99

$

Usually ships in 2-4 days

0

12

Echo 90022004006

SCREW 4x6

$0.99

$

In Stock, Qty 5

0

13

Echo 9411000629

BEARING, BALL 629

$12.99

$

Usually ships in 2-4 days

0

14

Echo 61031056933

SHAFT, GEAR

$50.99

$

Usually ships in 2-4 days

0

15

Echo 90081206201

BEARING, BALL 6201

$14.99

$

In Stock, only 4 left!

0

16

Echo 61044456830

WASHER

$1.99

$

Usually ships in 2-4 days

0

17

Echo 90070200032

RING, SNAP 32

$2.49

$

In Stock, only 2 left!

0

18

Echo P100009780

RETAINER SET, BLADE

Note: Includes iitems 19-21

$53.99

$

Usually ships in 2-4 days

0

19

Echo C535000011

RETAINER, BLADE

$41.99

$

Usually ships in 2-4 days

0

20

Echo 61035256830

PLATE, ADAPTOR - UPPER

$27.99

$

Usually ships in 2-4 days

0

21

Echo 90072000012

O-RING 12 MM

$1.99

$

In Stock, only 1 left!

0

22

Echo 61031452130

PLATE, ADAPTOR - LOWER

$27.99

$

Usually ships in 2-4 days

0

23

Echo 69922956830

CUP

$26.99

$

Usually ships in 2-4 days

0

24

Echo 61032052130

NUT, LOCK 10 - NYLON INSERT

$5.99

$

Usually ships in 2-4 days

0
