SRM-520 ES/U - Echo Brush Cutter (SN: U70926001001 - U70926999999) Handlebar Parts Diagram

Brush Cutter

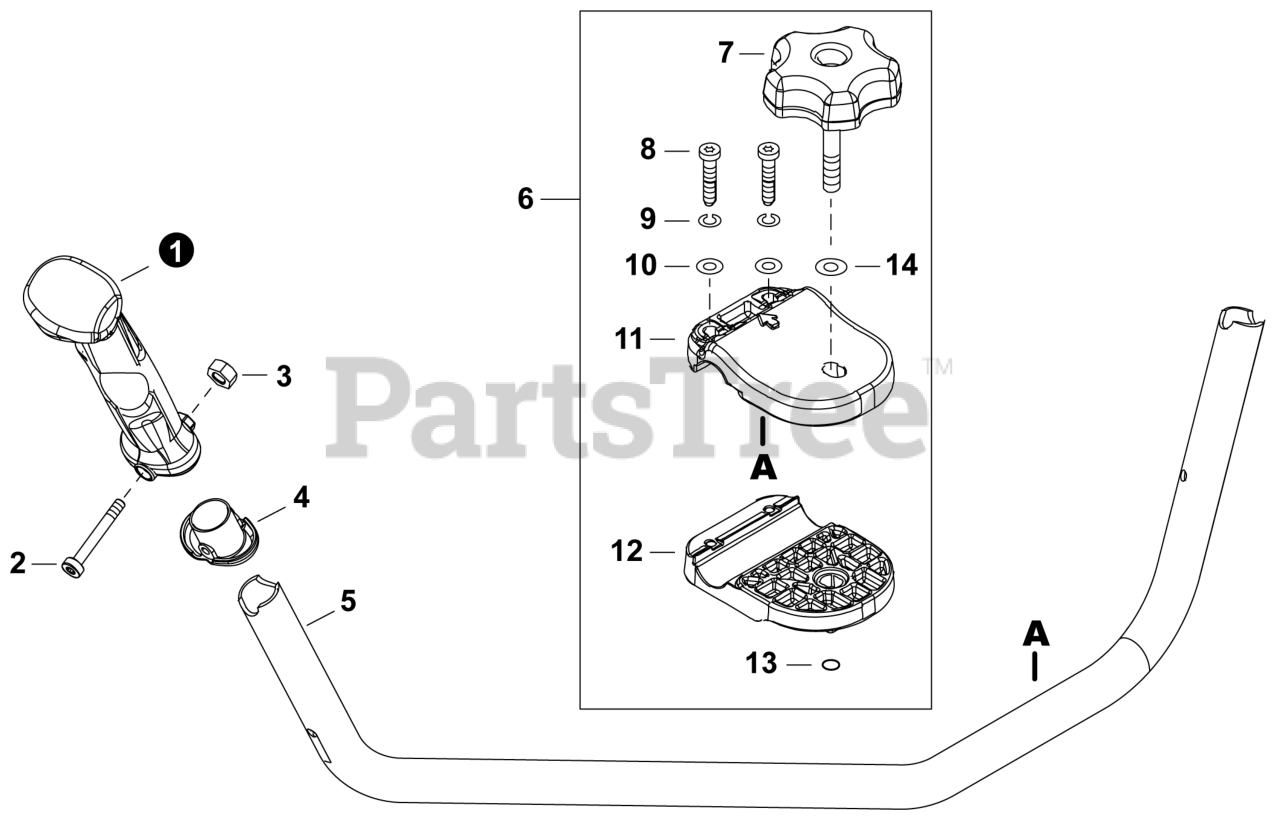

Handlebar Parts Diagram

  • Title

1

Echo C403000810

GRIP, HANDLE

$19.99

$

Usually ships in 2-4 days

0

2

Echo V805000070

BOLT, TORX 5x40

$0.99

$

Usually ships in 2-4 days

0

3

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

4

Echo C441000000

GUARD, HAND

$10.99

$

Usually ships in 2-4 days

0

5

Echo C400001441

U-HANDLE

$38.99

$

Usually ships in 2-4 days

0

6

Echo P100009310

BRACKET KIT, U-HANDLE

Note: Includes iitems 7-14

$48.99

$

Usually ships in 2-4 days

0

7

Echo V299000110

KNOB, SCREW M8

$12.99

$

Usually ships in 2-4 days

0

8

Echo V203002500

BOLT 5x30

$1.49

$

Usually ships in 2-4 days

0

9

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, only 4 left!

0

10

Echo 90062000005

WASHER

$0.99

$

Usually ships in 2-4 days

0

11

Echo C423001070

BRACKET, HANDLE - UPPER

$15.99

$

Usually ships in 2-4 days

0

12

Echo C423001080

BRACKET, HANDLE - LOWER

$15.99

$

Usually ships in 2-4 days

0

13

Echo 90072020007

O-RING 7

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17504903920

WASHER 8.2x17x1.6

$1.49

$

In Stock, Qty 10

0
