SRS-2100 - Echo Pole Saw Engine, Crankcase, Fan Housing, Clutch Drum, Cover Parts Diagram

Pole Saw

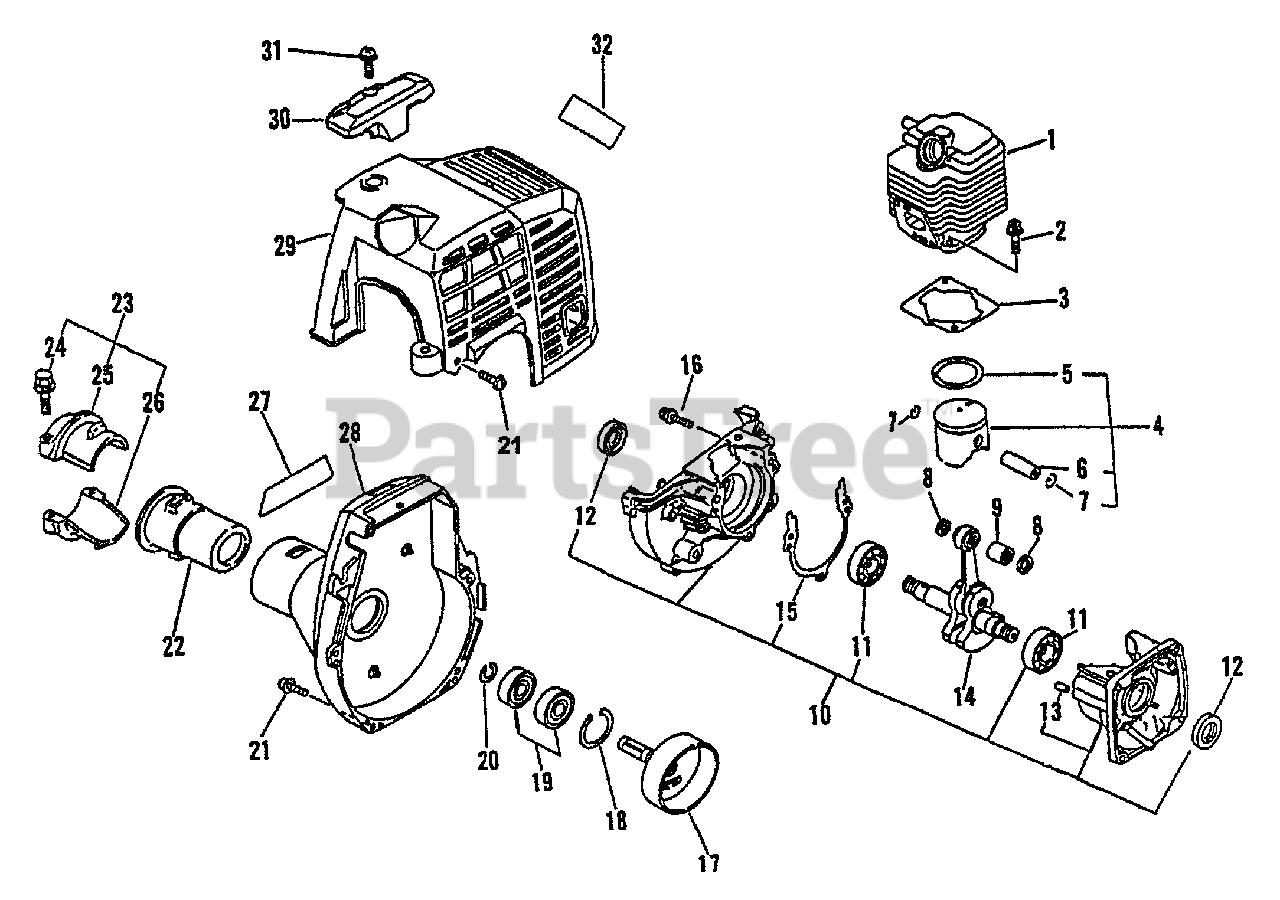

Engine, Crankcase, Fan Housing, Clutch Drum, Cover Parts Diagram

  • Title

1

Echo 10101147630

CYLINDER
(Superseded to 10101148730)

$151.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

3

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Use Kit P/N 88900042031

$4.99

$

In Stock, Qty 12

0

4

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes Items 5 - 8

$78.99

$

Usually ships in 2-4 days

0

5

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

9

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

10

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes Items 11 - 13, 15 & 16

$157.99

$

Usually ships in 2-4 days

0

11

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

12

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

14

Echo 10010044732

CRANKSHAFT ASSY
(Superseded to 10010044733)

Note: Includes ITEM 9

$186.99

$

Usually ships in 2-4 days

0

15

------------------

GASKET, CRANKCASE

Note: Use Kit P/N 88900042031

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

17

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

$16.99

$

In Stock, Qty 5

0

18

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

19

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

20

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

21

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

22

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

23

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: Includes Items 24-26 S/N 001001-014000

$11.99

$

Usually ships in 2-4 days

0

23

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: Includes Items 24-26 S/N 014001 & UP

$21.99

$

Usually ships in 2-4 days

0

24

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 9

0

25

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

26

Echo 61092327432

CLAMP, MAIN PIPE

Note: S/N 001001 - 014000

$7.49

$

Usually ships in 2-4 days

0

26

Echo A575000100

CLAMP, MAIN PIPE - LOWER

Note: S/N 014001 & UP

$9.99

$

Usually ships in 2-4 days

0

27

Echo 89011554330

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

28

Echo 10150352130

FAN CASE ASSY
(Superseded to 10150452130)

Note: S/N 001001 - 014000

$

$

Not available

28

Echo 10150352131

CASE, FAN

Note: S/N 014001 & Up

$78.99

$

Usually ships in 2-4 days

0

29

Echo 10151448930

COVER, ENGINE

$14.99

$

In Stock, only 2 left!

0

30

Echo 15991254130

GUARD - TOP

$9.49

$

In Stock, only 3 left!

0

31

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

32

Echo 89019406360

LABEL - HOT SURFACE

$3.99

$

Usually ships in 2-4 days

0

Echo SB1007

SHORT BLOCK -- SB1007
(Superseded to SB1026)

$

$

Not available

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: OPTIONAL

$19.99

$

In Stock, only 2 left!

0

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: OPTIONAL

$4.99

$

In Stock, Qty 12

0

------------------

GASKET, CRANKCASE

Note: OPTIONAL

$

$

Not available

Echo 13001642031

GASKET, INTAKE

Note: OPTIONAL

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: OPTIONAL

$2.99

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

Note: OPTIONAL

$2.99

$

In Stock, only 4 left!

0

Echo V104000160

GASKET, EXHAUST

Note: OPTIONAL

$2.49

$

In Stock, Qty 20+
