SRS-2100 - Echo Pole Saw Gear Case, Blade, Tools Parts Diagram

Pole Saw

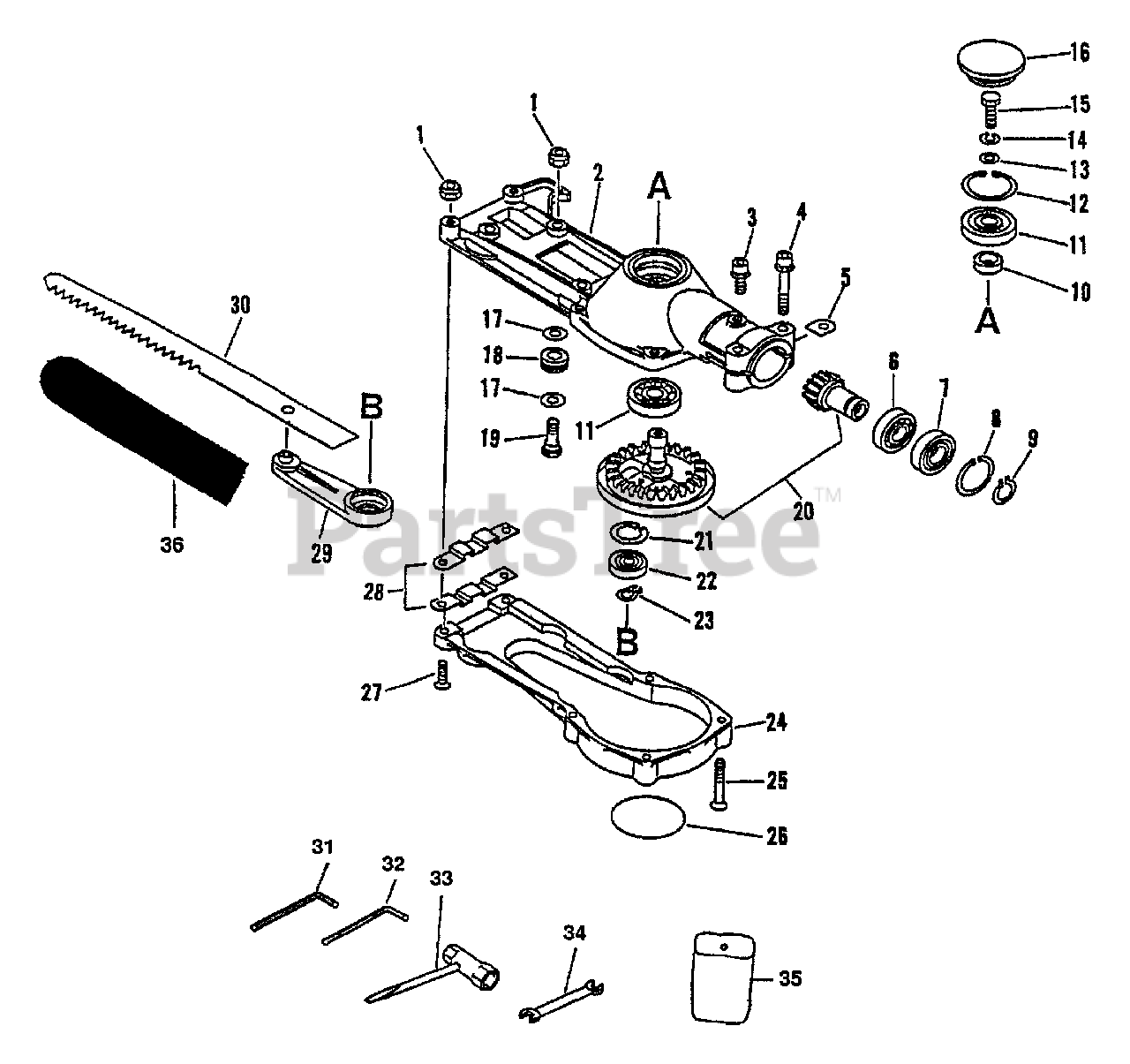

Gear Case, Blade, Tools Parts Diagram

  • Title

Echo 61040254130

GEAR CASE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 1 - 29

$

$

Not available

1

Echo 90056000006

LOCKNUT

$1.49

$

In Stock, Qty 20+

0

2

Echo 61040727630

CASE, GEAR

$167.99

$

Usually ships in 2-4 days

0

3

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

4

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

5

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 7

0

6

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 3 left!

0

7

Echo 90085806901

BEARING, BALL - 6901Z
(Superseded to 9405206901)

$15.99

$

In Stock, only 2 left!

0

8

Echo 90070200024

RING, RETAINING - 24

$1.99

$

In Stock, Qty 5

0

9

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

10

Echo 61031527630

SPACER

$4.49

$

Usually ships in 2-4 days

0

11

Echo 90080306000

BEARING, BALL - 6000Z

$13.99

$

Usually ships in 2-4 days

0

12

Echo 90070200026

RING, RETAINING - 26

$1.99

$

In Stock, Qty 13

0

13

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 10

0

14

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 2 left!

0

15

Echo 90010005016

BOLT - 5X16

$0.99

$

Usually ships in 2-4 days

0

16

Echo 61043127630

LID, GEAR CASE

$2.99

$

Usually ships in 2-4 days

0

17

Echo 69911827730

WASHER

$2.99

$

Usually ships in 2-4 days

0

18

Echo 69911227630

SUPPORT, BLADE

$4.99

$

Usually ships in 2-4 days

0

19

Echo 69911327630

BOLT - 6

$9.49

$

Usually ships in 2-4 days

0

20

Echo 61030154130

GEAR SET

$294.99

$

Usually ships in 2-4 days

0

21

Echo 90070200019

RING, RETAINING - 19

$1.99

$

In Stock, Qty 5

0

22

Echo 90080400607

BEARING, BALL - 607

$14.99

$

In Stock, only 1 left!

0

23

Echo 90070800007

RING, RETAINING - 7
(Superseded to 90070100007)

$1.49

$

In Stock, Qty 5

0

24

Echo 61040927630

LID, GEAR CASE

$36.99

$

Usually ships in 2-4 days

0

25

Echo 90017505030

BOLT - 5X30

$1.99

$

Usually ships in 2-4 days

0

26

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, Qty 10

0

27

Echo 90017505018

BOLT - 5X18

$1.99

$

In Stock, Qty 5

0

28

Echo 69911027630

SUPPORT, BLADE

$4.99

$

Usually ships in 2-4 days

0

29

Echo 61030227630

CONNECTING ROD ASSY
(Superseded to Discontinued)

$

$

Not available

30

Echo 99945200001

GUIDE, BLADE

$20.99

$

In Stock, only 2 left!

0

31

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

32

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 4 left!

0

33

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

34

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0

35

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, Qty 8

0

36

Echo 89852354330

COVER, BLADE

$4.99

$

Usually ships in 2-4 days

0

Echo 99945200030

2-1/2 FOOT EXTENSION

Note: See Gear Case, Blade, Tools

$

$

Not available
