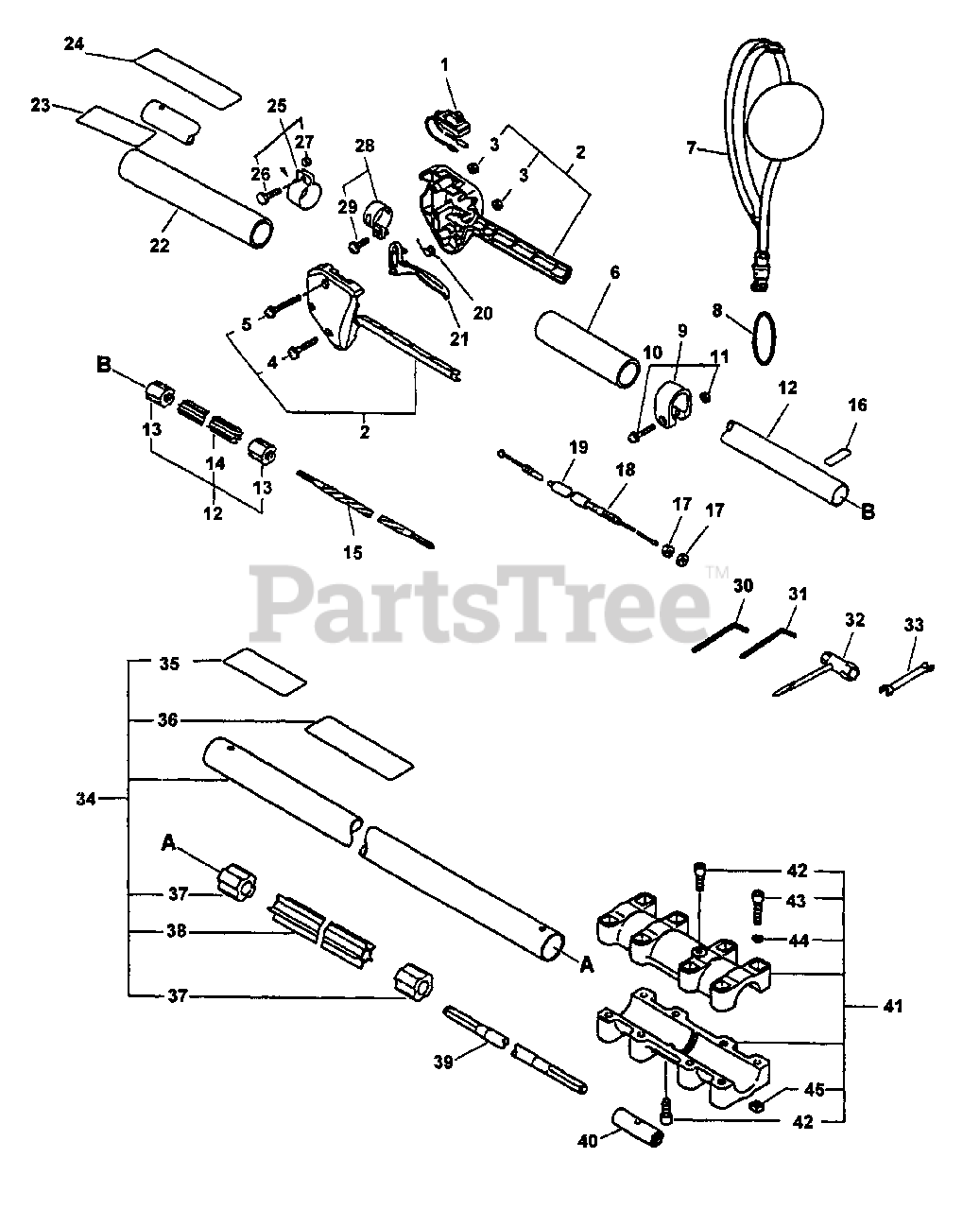

SRS-2400 - Echo Pole Saw (Type 1E) Driveshaft, Handles, Throttle, Stop Switch, Extension Parts Diagram

Pole Saw (Type 1E)

Driveshaft, Handles, Throttle, Stop Switch, Extension Parts Diagram

  • Title

1

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$9.49

$

In Stock, Qty 10

0

2

Echo 17800352130

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 3 - 5

$5.49

$

In Stock, Qty 6

0

3

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

5

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

6

Echo 35121352130

GRIP, HANDLE

$10.99

$

In Stock, Qty 18

0

7

Echo 30100054331

SHOULDER STRAP ASSY
(Superseded to C062000080)

$22.99

$

Usually ships in 2-4 days

0

8

Echo 30101652730

RING

$1.99

$

Usually ships in 2-4 days

0

9

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 10-11

$10.99

$

In Stock, only 2 left!

0

10

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 15

0

11

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 61020654330

MAIN PIPE ASSY

Note: Includes ITEMS 13- 14

$85.99

$

Usually ships in 2-4 days

0

13

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

14

Echo 61021754330

LINER - FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

15

Echo 61001354330

DRIVESHAFT - FLEXIBLE

$71.99

$

Usually ships in 2-4 days

0

16

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 18

0

17

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

18

Echo 17800144430

CABLE, THROTTLE

$11.99

$

In Stock, Qty 6

0

19

Echo 17812750330

TUBE - VINYL

$1.49

$

In Stock, Qty 10

0

20

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 10

0

21

Echo 17801052130

TRIGGER, THROTTLE

$3.99

$

In Stock, Qty 20+

0

22

Echo 35101254330

GRIP, HANDLE

$40.99

$

In Stock, only 1 left!

0

23

Echo 89017854331

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0

24

Echo 89016054331

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

25

Echo 30120708930

CLAMP

Note: INCLUDES ITEMS 26 & 27

$5.49

$

In Stock, only 2 left!

0

26

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

27

Echo 69901203330

SPACER

$1.99

$

In Stock, Qty 15

0

28

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 29

$10.99

$

In Stock, only 3 left!

0

29

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

30

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

31

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

32

Echo X602000020

T-WRENCH - 17X19mm

$3.99

$

In Stock, Qty 6

0

33

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0

34

Echo 61020452130

MAIN PIPE ASSY

Note: INCLUDES ITEMS 35 - 38

$42.99

$

In Stock, only 2 left!

0

35

Echo 89016055330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

36

Echo 89017854331

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0

37

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

38

Echo 61021752130

LINER - FLEXIBLE

$10.99

$

Usually ships in 2-4 days

0

39

Echo 61001352130

DRIVESHAFT - FLEXIBLE

$12.99

$

Usually ships in 2-4 days

0

40

Echo 61001252130

CONNECTOR, SHAFT
(Superseded to Discontinued)

$

$

Not available

41

Echo 61060252130

CLAMP, MAIN PIPE
(Superseded to Discontinued)

Note: INCLUDES ITEMS 42 - 45

$

$

Not available

42

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

43

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

44

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 2 left!

0

45

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, only 3 left!

0
