SRS Z1 (5901675) - Ferris SRS Z1 Series 48" Stand-On Mower, 23hp Briggs & Stratton Parking Brake Group Parts Diagram

SRS Z1 Series 48" Stand-On Mower, 23hp Briggs & Stratton

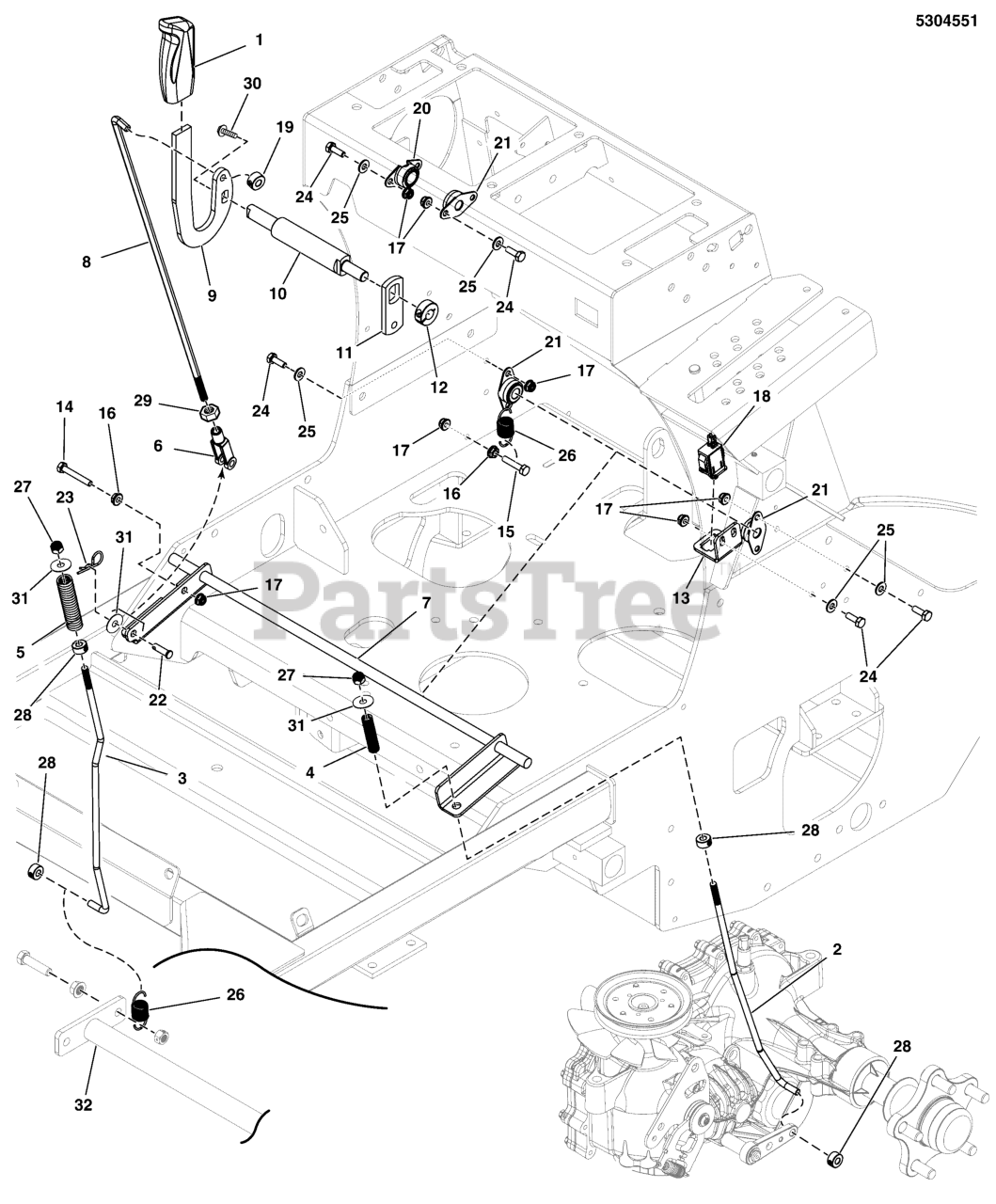

Parking Brake Group Parts Diagram

  • Title

1

Ferris 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 1 left!

0

2

Ferris 5104991

ROD, BRAKE CTRL, LOWER - LH
(Superseded to 5104991FS)

$14.99

$

Usually ships in 2-12 days

0

3

Ferris 5104992

ROD, BRAKE CTRL, LOWER - RH
(Superseded to 5104992FS)

$14.99

$

Usually ships in 2-12 days

0

4

Ferris 5020637

SPRING-COMP, .375IDX2.75LGX.054WR, SS
(Superseded to 5020637YP)

$5.99

$

Usually ships in 2-12 days

0

5

Ferris 5023242

SPRING-COMP, .496ID X 3.00LG X .112WR
(Superseded to 5023242SM)

$6.99

$

In Stock, only 1 left!

0

6

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

7

Ferris 5414231A

WELD, BRAKE SHAFT PIVOT - BLK

$55.99

$

Usually ships in 2-12 days

0

8

Ferris 5104548

ROD, BRAKE, STAND-ON
(Superseded to 5104548FS)

$22.99

$

Usually ships in 2-12 days

0

9

Ferris 5414538A

PLATE, BRAKE LEVER, SRSZ - BLK
(Superseded to 84008395)

$12.99

$

Usually ships in 2-12 days

0

10

Ferris 5104953

SHAFT, UPPERBRAKE ROD SHORT, SRSZ1
(Superseded to 5104953FS)

$34.99

$

Usually ships in 2-12 days

0

11

Ferris 5106314

PLATE, BRAKE TAB, STAND-ON
(Superseded to 5106314FS)

$11.99

$

Usually ships in 2-12 days

0

12

Ferris 5010580

COLLAR, 1/2 SET (1/2 SPLIT COLLAR IN MODEL)
(Superseded to 5010580FS)

$15.99

$

Usually ships in 2-12 days

0

13

Ferris 5415132A

PLATE, PARKING BRAKE SWITCH - BLK

$8.99

$

Usually ships in 2-12 days

0

14

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2 GD5 CZ
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

15

Ferris 5025010X10

BOLT, 1/4-20 X 1-1/4 GD5 CZ
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 9

0

16

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

17

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

18

SEE ELECTRICAL GROUP

$

$

Not available

19

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

20

Ferris 5104270

BEARING, 5/8" FLANGED, PLASTIC BALL
(Superseded to 5104270YP)

$4.99

$

Usually ships in 2-12 days

0

21

Ferris 5101123

BEARING, 1/2 FLANGED, PLASTIC BALL
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

22

Ferris 5025213X8

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

23

Ferris 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

24

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

25

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5010213

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK
(Superseded to 5010213YP)

$14.99

$

Usually ships in 2-12 days

0

27

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

28

Ferris 5104748

COLLAR, DOUBLE SPLIT, 7MM
(Superseded to 5104748FS)

$13.99

$

Usually ships in 2-12 days

0

29

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

30

Ferris 2860664

SCREW-HEX SEMS WSHR 1/4-20 X.88 DOG PT
(Superseded to 2860664SM)

$5.99

$

In Stock, only 2 left!

0

31

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

32

SEE MAIN FRAME GROUP

$

$

Not available
