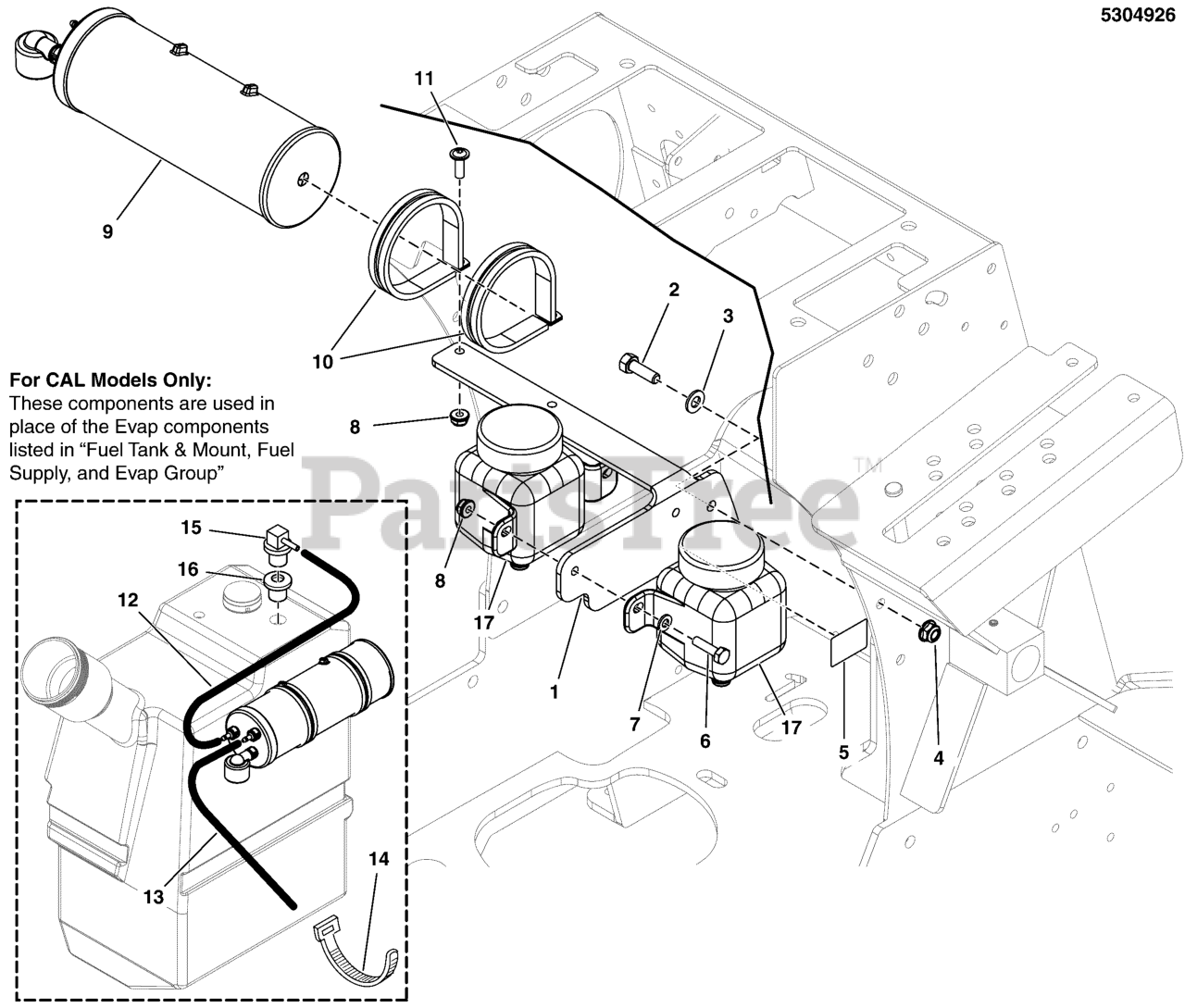

SRS Z1 (5901687) - Ferris SRS Z1 Series 48" Stand-On Mower, 22hp Kawasaki, CARB Evap Canister Group - CAL Models Only Parts Diagram

SRS Z1 Series 48" Stand-On Mower, 22hp Kawasaki, CARB

Evap Canister Group - CAL Models Only Parts Diagram

  • Title

1

Ferris 5416149A

PLATE, HYDRO BOTTLE MNT, SRSZ1,CAL - BLK

$

$

Currently unavailable

2

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5105111

DECAL, HYDRAULIC OIL, 20W-50, 1" X 1.44"
(Superseded to 5105111FS)

$2.49

$

Usually ships in 2-12 days

0

6

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 313037

CNSTR, CARB, 9 GAL
(Superseded to 313037YP)

$92.99

$

In Stock, only 1 left!

0

10

Ferris 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

11

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 7700552X10

HOSE, VAPOR, 5MM ID, 10.00 LG

$

$

Currently unavailable

13

Ferris 7700552X31

HOSE, VAPOR, 5MM ID, 31.00 LG
(Superseded to 7700552X32YP)

$9.99

$

In Stock, only 1 left!

0

14

Ferris 5021030

TIE,SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

15

Ferris 770046

REMOTE VENT ASSEMBLY

Note: (SV)

$16.99

$

In Stock, only 2 left!

0

16

Ferris 209043

GROMMET (SV)
(Superseded to 799624)

Note: (SV)

$8.99

$

In Stock, only 3 left!

0

17

SEE HYDRAULIC GROUP

$

$

Not available
