SRS Z1 (5901944) - Ferris SRS Z1 Series 48" Stand-On Mower, 22hp Kawasaki, Rear-Discharge 48" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

SRS Z1 Series 48" Stand-On Mower, 22hp Kawasaki, Rear-Discharge

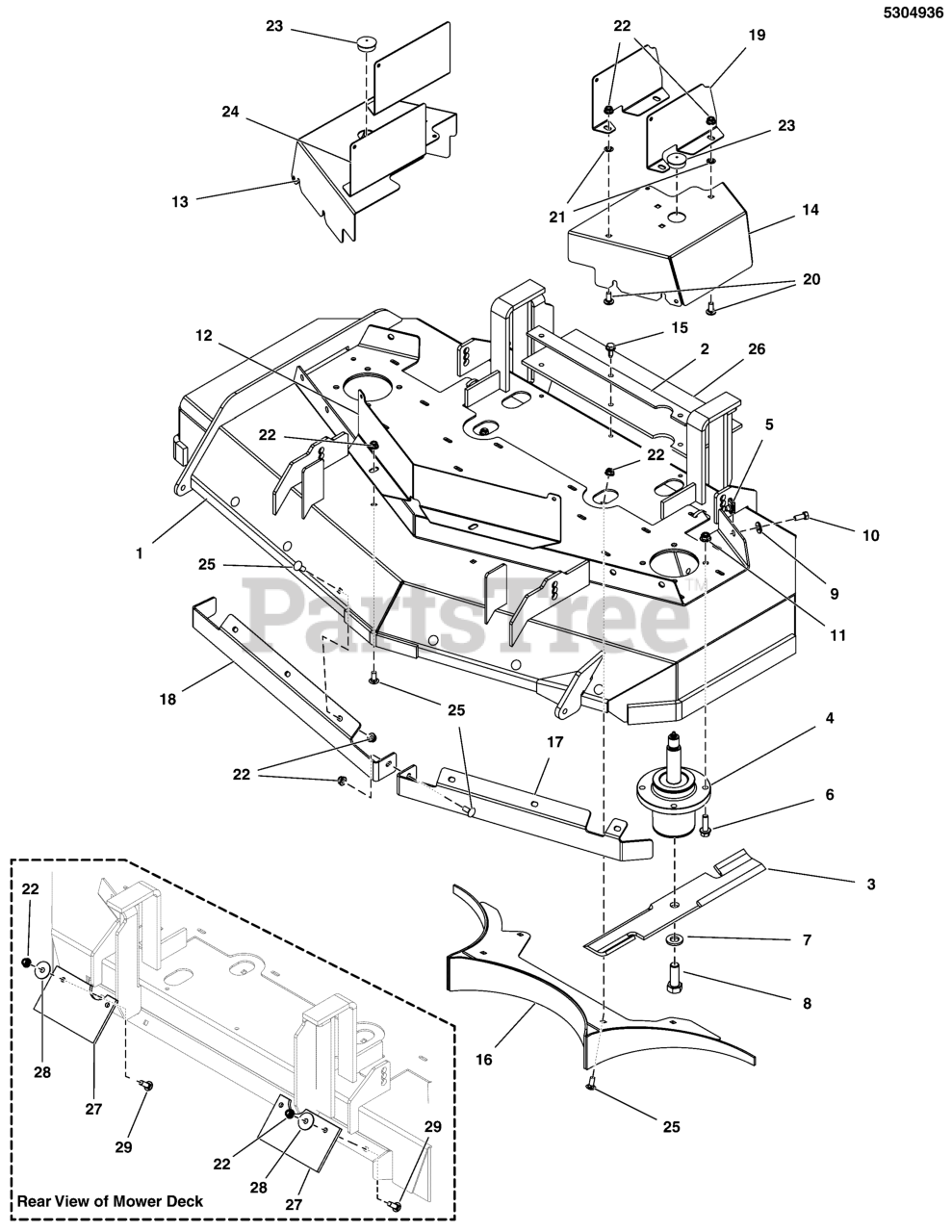

48" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

  • Title

1

Ferris 5601019

DECK SHELL W/DECALS, Z148RDCE (5415509B)

$1976.99

$

Usually ships in 2-12 days

0

2

Ferris 5416320AAFS

PLATE

$11.99

$

Usually ships in 2-12 days

0

3

Ferris 5103303S

BLADE SET, 48 DECK

Note: (SET OF 3 BLADES)

$76.99

$

Usually ships in 2-12 days

0

4

Ferris 5061096SM

ASSM, SPINDLE, LONG S

$243.99

$

Usually ships in 2-12 days

0

5

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, Qty 10

0

6

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

7

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

8

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

11

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 14

0

12

Ferris 84007859

GUARD, Center

$

$

Currently unavailable

13

Ferris 84007860

GUARD, LH

$

$

Currently unavailable

14

Ferris 84007861

GUARD, RH

$

$

Currently unavailable

15

Ferris 1664847CA

SCREW-HEX WSHR HD TAPTT5/16-18X0.750

$

$

Currently unavailable

16

Ferris 84007863

BAFFLE, Rear

$

$

Currently unavailable

17

Ferris 5416077BFS

BAFFLE, DISCHARGE

$33.99

$

Usually ships in 2-12 days

0

18

Ferris 5416078BFS

BAFFLE, DISCHARGE

$36.99

$

Usually ships in 2-12 days

0

19

Ferris 84007857

PLATE, Cover, Left

$

$

Currently unavailable

20

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

21

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

22

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, only 1 left!

0

24

Ferris 84007862

GUARD, Top

$

$

Currently unavailable

25

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5105362FS

FLAP

$60.99

$

Usually ships in 2-12 days

0

27

Ferris 5105363FS

FLAP

$16.99

$

Usually ships in 2-12 days

0

28

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0
