SRS Z2 (5901852) - Ferris SRS Z2 Series 52" Stand-On Mower, 26hp Kawasaki 52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

SRS Z2 Series 52" Stand-On Mower, 26hp Kawasaki

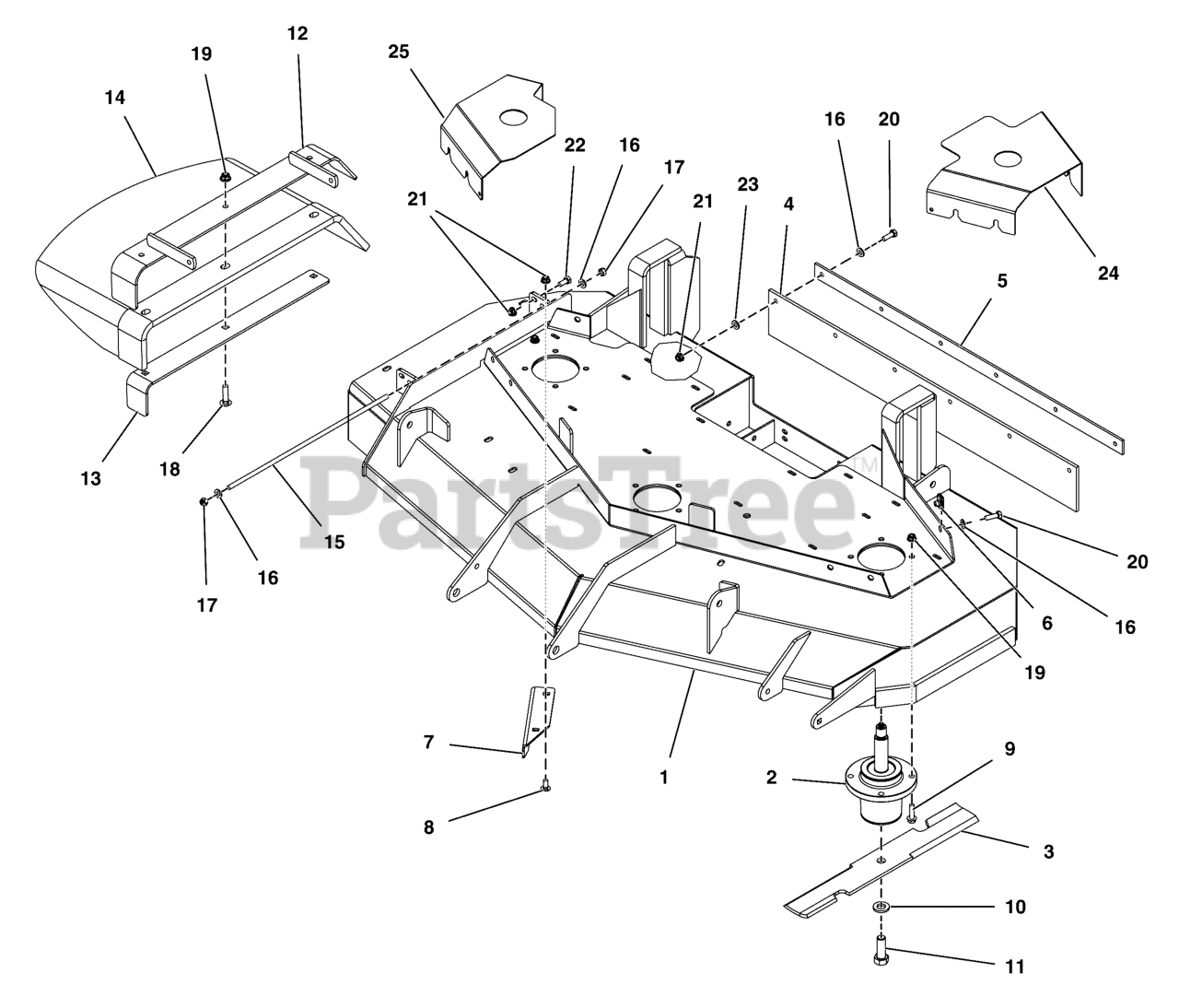

52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Ferris 5600887

DECK SHELL W/ DECALS, 52, SRSZ2-DOM

Note: (5413861B)(S/N: 4001542418 and below)

$2308.99

$

Usually ships in 2-12 days

0

1

Ferris 5601319

DECK SHELL W/ DECALS, 52, SRSZ2, (5422061B)

Note: (5421061B)(S/N: 4001542419 and above)

$1823.99

$

Usually ships in 2-12 days

0

2

Ferris 5061096

SPINDLE ASSM, ALUMINUM, LONG SHAFT
(Superseded to 5061096SM)

$243.99

$

Usually ships in 2-12 days

0

3

Ferris 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)

Note: (SET OF THREE BLADES)

$

$

Currently unavailable

4

Ferris 5102015

FLAP, STRIPER, 61" DECK, IS3100, S200X
(Superseded to 5102015YP)

$62.99

$

Usually ships in 2-12 days

0

5

Ferris 5405238A

PLATE, SUPPORT - BLKV
(Superseded to 5405238AYP)

$30.99

$

Usually ships in 2-12 days

0

6

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

7

Ferris 5405557A

PLATE, DEFLECTOR, 52 DECK - BLK
(Superseded to 5405557AAFS)

$19.99

$

Usually ships in 2-12 days

0

8

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025390X12

BOLT, 3/8-16 X 1-1/2, FLANGE, GD 5, CZ
(Superseded to 5025390X12YP)

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

11

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5413400A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413400AA)

$66.99

$

Usually ships in 2-12 days

0

13

Ferris 5413398A

SUPPORT, DISCHARGE CHUTE - BLK

$31.99

$

Usually ships in 2-12 days

0

14

Ferris 5413500

CHUTE, RUBBER DISCHARGE (5104442)

Note: (5104442)

$216.99

$

Usually ships in 2-12 days

0

15

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

16

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

18

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 13

0

20

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

23

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5419925B

GUARD, DECK, 52 - LH - RED
(Superseded to 5419925BFS)

$34.99

$

In Stock, only 1 left!

0

25

Ferris 5419926B

GUARD, DECK, 52 - RH - RED
(Superseded to 5419926BFS)

$29.99

$

In Stock, only 1 left!

0
