SRS Z2 (5901948) - Ferris SRS Z2 Series 52" Stand-On Mower, 28hp Briggs & Stratton Hydraulic Group Parts Diagram

SRS Z2 Series 52" Stand-On Mower, 28hp Briggs & Stratton

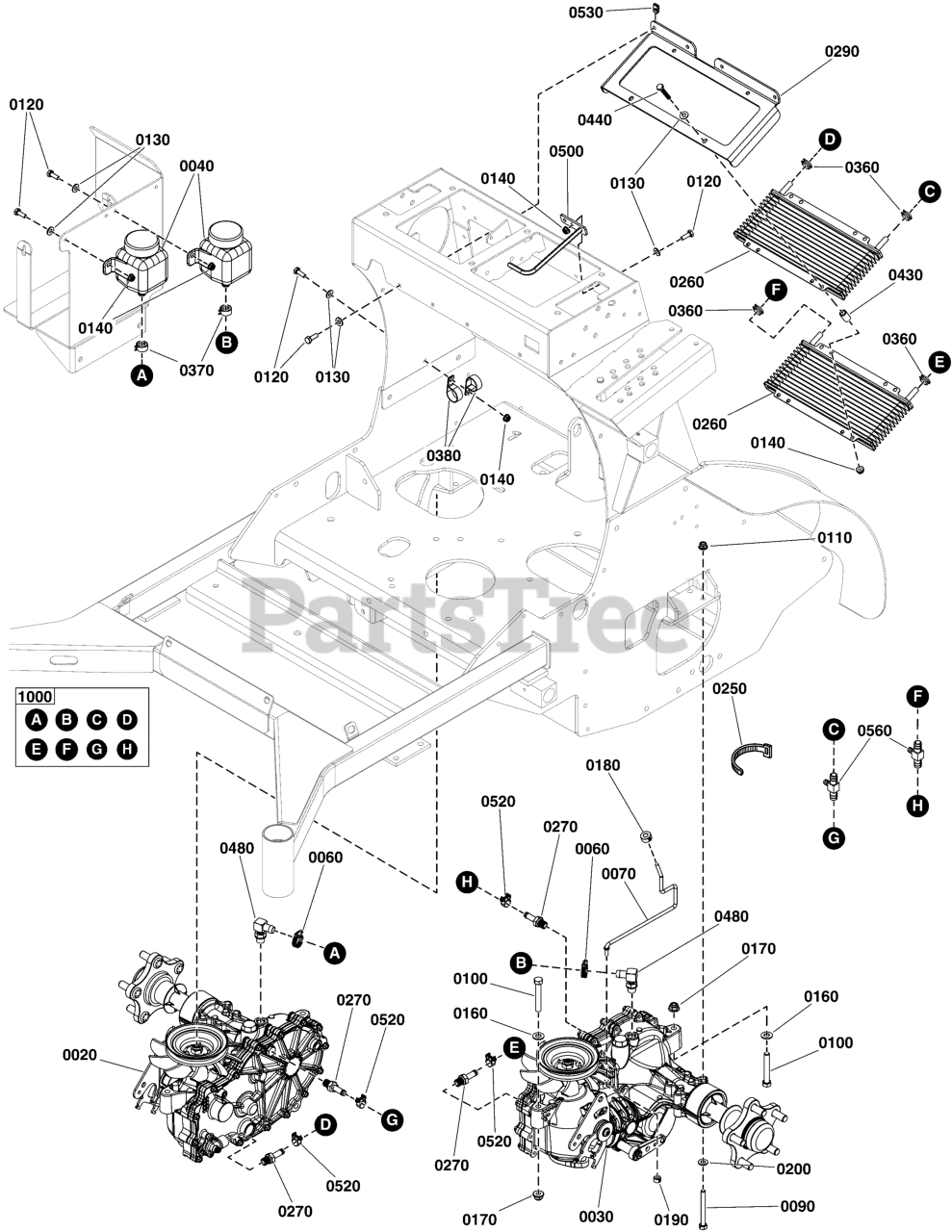

Hydraulic Group Parts Diagram

  • Title

0020

Ferris 5108072

TRANXSAXLE, ZT3800, OIL COOLER READY, RH
(Superseded to 5108072FS)

$1492.99

$

Usually ships in 2-12 days

0

0030

Ferris 5108073

TRANXSAXLE, ZT3800, OIL COOLER READY, LH
(Superseded to 5108073FS)

$1582.99

$

Usually ships in 2-12 days

0

0040

Ferris 5100473

RESERVOIR, HYDRO OIL, 350 ML
(Superseded to 5100473SM)

Note: (Includes item #0040-10)

$43.99

$

In Stock, only 4 left!

0

0040-10

Ferris 5100778X1

RESERVIOR CAP

Note: (Not illustrated)

$20.99

$

Usually ships in 2-12 days

0

0060

Ferris 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

0070

Ferris 5104598

ROD, HYDRO RELEASE, STAND ON
(Superseded to 5104598FS)

$14.99

$

Usually ships in 2-12 days

0

0090

Ferris 5025011X24

BOLT, 5/16-18 X 3" GD5 YZ
(Superseded to 5025011X24SM)

Note: (Torque transmission mounting bolts to 17-22 ft-lbs (23-30 Nm)

$4.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

Note: (Torque transmission mounting bolts to 30-35 ft-lbs (41-47 Nm)

$2.99

$

In Stock, only 3 left!

0

0110

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0120

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0130

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

0160

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0170

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0180

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.99

$

In Stock, only 3 left!

0

0190

Ferris 5022481

COLLAR, Set, 1/4"
(Superseded to 5022481SM)

$6.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0250

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 2 left!

0

0260

Ferris 5101721

OIL COOLER, .75 X 11.0 X 24 PLATES
(Superseded to 5101721FS)

$138.99

$

Usually ships in 2-12 days

0

0270

Ferris 5108692

FITTING, STR 3/8 BARB - 9/16 O-RING
(Superseded to 5108692FS)

$8.49

$

Usually ships in 2-12 days

0

0290

Ferris 5419988AA

COOLER MOUNT, SRSZ2 - BLK
(Superseded to 5419988AAFS)

$32.99

$

Usually ships in 2-12 days

0

0360

Ferris 5023268

CLAMP, Hose
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

0370

Ferris 5025474

CLAMP, HOSE, .75 FREE DIA.
(Superseded to 5025474SM)

$3.49

$

In Stock, Qty 11

0

0380

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0430

Ferris 5103660

SPACER, .32 X .50 X .83, CZ
(Superseded to 5103660YP)

$5.49

$

In Stock, only 3 left!

0

0440

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2 GD5 CZ
(Superseded to 5025010X12SM)

$3.49

$

In Stock, only 1 left!

0

0480

Ferris 5100370

FITTING, 9/16 O-RING-1/2" HOSE, 90 DEG
(Superseded to 5100370YP)

$19.99

$

Usually ships in 2-12 days

0

0500

Ferris 5108543

KEEPER, COOLER HOSE, SRS-Z2
(Superseded to 5108543FS)

$15.99

$

Usually ships in 2-12 days

0

0520

Ferris 5108736

CLAMP, HOSE, 5/8", FI TYPE
(Superseded to 5108736FS)

$3.99

$

Usually ships in 2-12 days

0

0530

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

0560

Ferris 5108746

FITTING, TEE, HOSE, 3/8-3/8-1/4
(Superseded to 5108746FS)

$35.99

$

Usually ships in 2-12 days

0

1000

Refer to: Hydraulic Group - Hoses and Loom

$

$

Not available
