SRS Z2 (5902070) - Ferris SRS Z2 Series 60" Stand-On Mower, 28hp Briggs & Stratton 60" Mower Deck Group - Pulleys, Belts, and Idler Arm Parts Diagram

SRS Z2 Series 60" Stand-On Mower, 28hp Briggs & Stratton

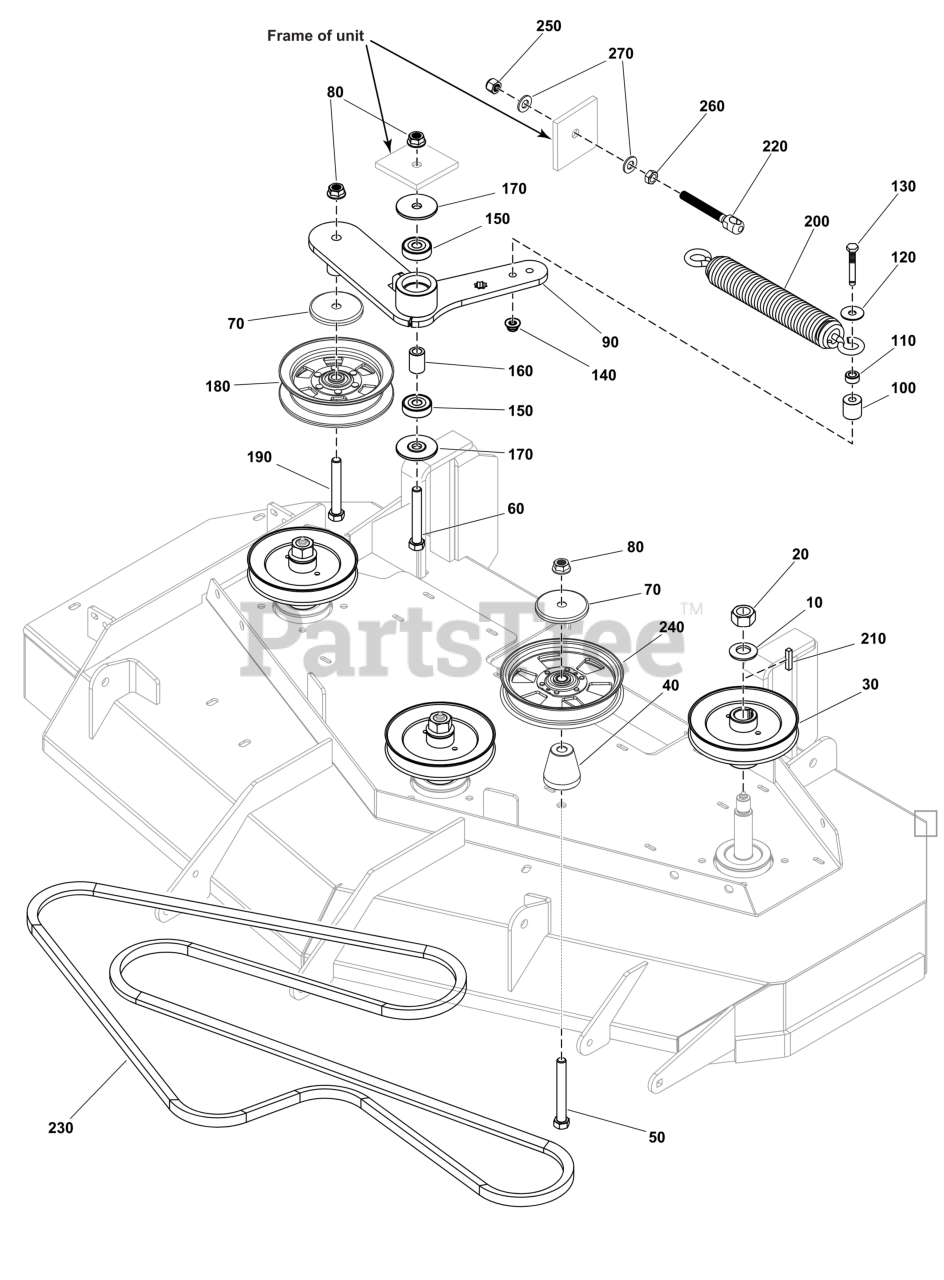

60" Mower Deck Group - Pulleys, Belts, and Idler Arm Parts Diagram

  • Title

10

Ferris 5025406FS

WASHER, Beveled
(Superseded to 770223)

$4.49

$

In Stock, only 2 left!

0

20

Ferris 5025405SM

NUT, 3/4-16 HEX

$3.99

$

In Stock, Qty 8

0

30

Ferris 5104679FS

PULLEY

$80.99

$

In Stock, only 1 left!

0

40

Ferris 5105523FS

SPACER

$30.99

$

Usually ships in 2-12 days

0

50

Ferris 5025017X36SM

BOLT, 1/2-13 X 4-1/2"

$6.49

$

In Stock, only 1 left!

0

60

Ferris 5025017X32YP

BOLT, 1/2-13 X 4 GD5

$6.49

$

In Stock, only 2 left!

0

70

Ferris 5105145YP

SHIELD

$4.49

$

Usually ships in 2-12 days

0

80

Ferris 770225

NUT

$3.49

$

In Stock, Qty 16

0

90

Ferris 5413996AAFS

ARM, IDLER

$106.99

$

Usually ships in 2-12 days

0

100

Ferris 5100896SM

SPACER

$8.99

$

Usually ships in 2-12 days

0

110

Ferris 5044933SM

SPACER, .39 X .75 X .

$4.99

$

In Stock, only 3 left!

0

120

Ferris 5025165SM

WASHER, 3/8" FENDER

$4.49

$

In Stock, Qty 12

0

130

Ferris 5025013X18SM

BOLT, 3/8-16 X 2-1/4"

$4.49

$

In Stock, only 2 left!

0

140

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

150

Ferris 5104383YP

BEARING

$10.99

$

Usually ships in 2-12 days

0

160

Ferris 5104456YP

SPACER, .51 X .84 X 1

$4.49

$

Usually ships in 2-12 days

0

170

Ferris 5104379YP

SPACER

$9.49

$

Usually ships in 2-12 days

0

180

Ferris 5104716YP

PULLEY, IDLER

$60.99

$

In Stock, only 1 left!

0

190

Ferris 5025017X28SM

BOLT, 1/2-13 X 3-1/2"

$5.99

$

In Stock, only 4 left!

0

200

Ferris 5105092FS

SPRING, Extension

$57.99

$

Usually ships in 2-12 days

0

210

Ferris 5050407X20SM

KEY, 1/4" SQ X 2.50

$6.49

$

In Stock, only 1 left!

0

220

Ferris 5105844YP

ANCHOR, SPRING

$16.99

$

Usually ships in 2-12 days

0

230

Ferris 5104064YP

BELT, 5V, 145.40"EL,

$114.99

$

In Stock, Qty 8

0

240

Ferris 5104717YP

PULLEY

$58.99

$

Usually ships in 2-12 days

0

250

Ferris 5025098SM

NUT, 1/2-20 HEX NYLON

$6.49

$

In Stock, Qty 11

0

260

Ferris 5025089SM

NUT, 1/2-20 HEX JAM

$4.49

$

In Stock, only 3 left!

0

270

Ferris 5025158SM

WASHER, 1/2" SAE

$4.49

$

In Stock, Qty 20+

0
