SRS Z2 (5902164) - Ferris SRS Z2 Series 52" Stand-On Mower, 26hp Kawasaki 52" iCD+ Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

SRS Z2 Series 52" Stand-On Mower, 26hp Kawasaki

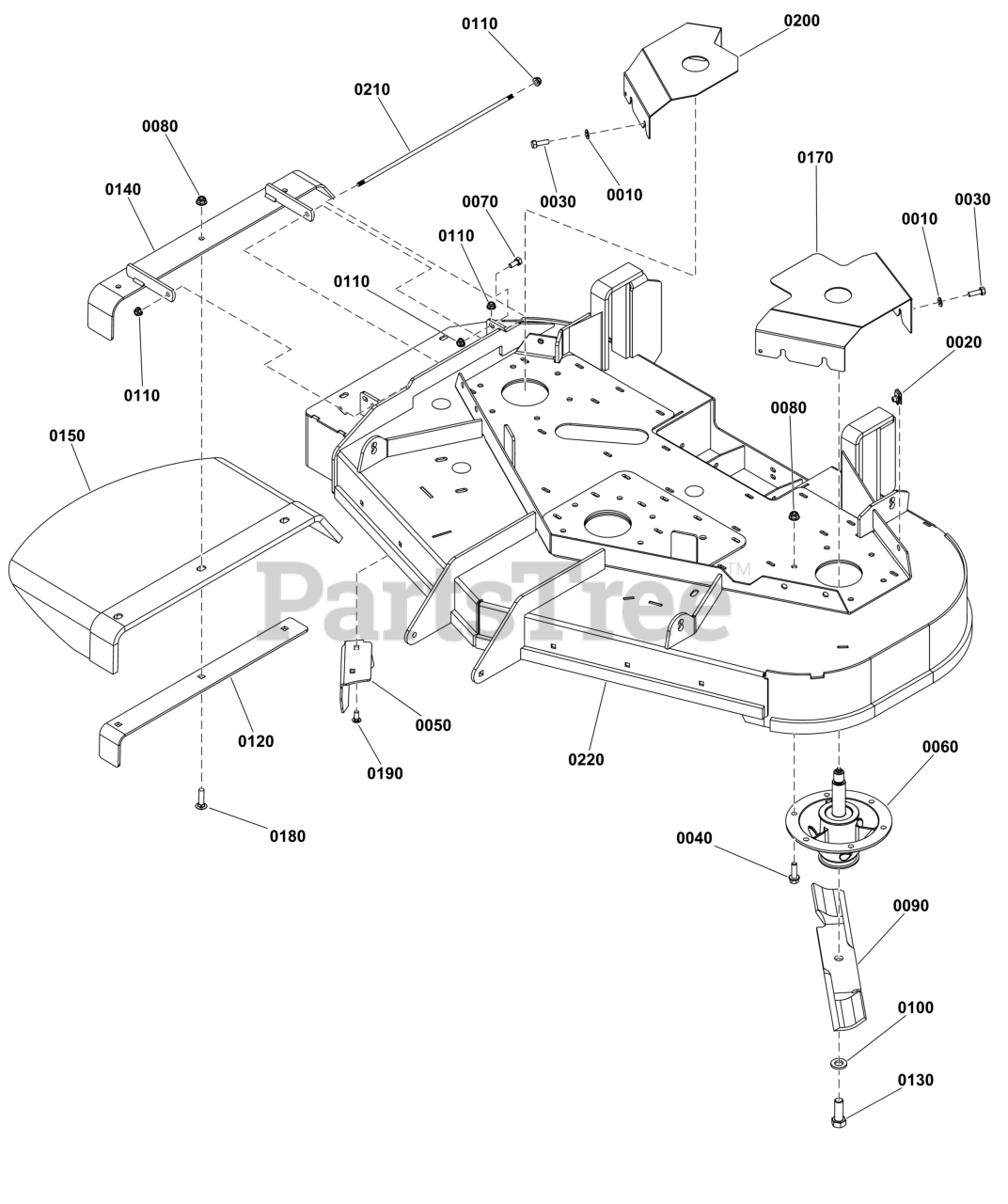

52" iCD+ Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

0010

Ferris 703350

WASHER

$4.49

$

In Stock, Qty 20+

0

0020

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, Qty 20+

0

0030

Ferris 5025011X8FS

BOLT

$3.99

$

In Stock, Qty 20+

0

0040

Ferris 5025390X10FS

BOLT

$2.99

$

Usually ships in 2-12 days

0

0050

Ferris 84013116

DEFLECTOR

Note: (Includes items # 0190 - Qty (2) and 0110 - Qty (2)).

$

$

Currently unavailable

0060

Ferris 5104744YP

ASSEMBLY-SPINDLE

Note: (S/N: 4002454521 and below)

$210.99

$

In Stock, Qty 8

0

0060

Ferris 5100993SM

SPINDLE ASSY

Note: (S/N: 4002454522 and above)

$179.99

$

In Stock, only 4 left!

0

0070

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, Qty 20+

0

0080

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0090

Ferris 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)

Note: (SET OF THREE BLADES)

$

$

Currently unavailable

0100

Ferris 5025477SM

WASHER, 5/8" YZ

$4.49

$

In Stock, Qty 20+

0

0110

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0120

Ferris 84003245

PLATE, SUPPORT

$29.99

$

In Stock, Qty 5

0

0130

Ferris 5025320X14FS

BOLT

$4.49

$

In Stock, Qty 20+

0

0140

Ferris 84008171

MOUNT

$92.99

$

Usually ships in 2-12 days

0

0150

Ferris 84011105

CHUTE, Discharge

$

$

Currently unavailable

0170

PLATE, Spindle, Left

Note: (Includes items #0010 - Qty (3) and #0030 - Qty (3)).

$

$

Not available

0180

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$4.49

$

In Stock, only 2 left!

0

0190

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

In Stock, Qty 14

0

0200

PLATE, Spindle, Right

Note: (Includes items #0010 - Qty (3) and #0030 - Qty (3)).

$

$

Not available

0210

Ferris 84012860

ROD, Chute (Includes hardware)

$

$

Currently unavailable

0220

Ferris 84012850

DECK SHELL w/Decals (North American Models)

Note: (S/N: 4002454521 and below)(Refer to Note: *)Note: *If replacing the mower deck on a unit in this serial number range you must order these components: 84013440 - Qty (1), 5100993SM - Qty (3), 5106748FS - Qty (3), and 5050407X8SM - Qty (3).

$

$

Currently unavailable

0220

Ferris 84013440

DECK SHELL w/Decals (North American Models)

Note: (S/N: 4002454522 and above)

$

$

Currently unavailable
