SRS Z2 (5902165) - Ferris SRS Z2 Series 52" Stand-On Mower, 28hp Briggs & Stratton 52" iCD+ Mower Deck Group - Pulleys, Belts, and Idler Arm Parts Diagram

SRS Z2 Series 52" Stand-On Mower, 28hp Briggs & Stratton

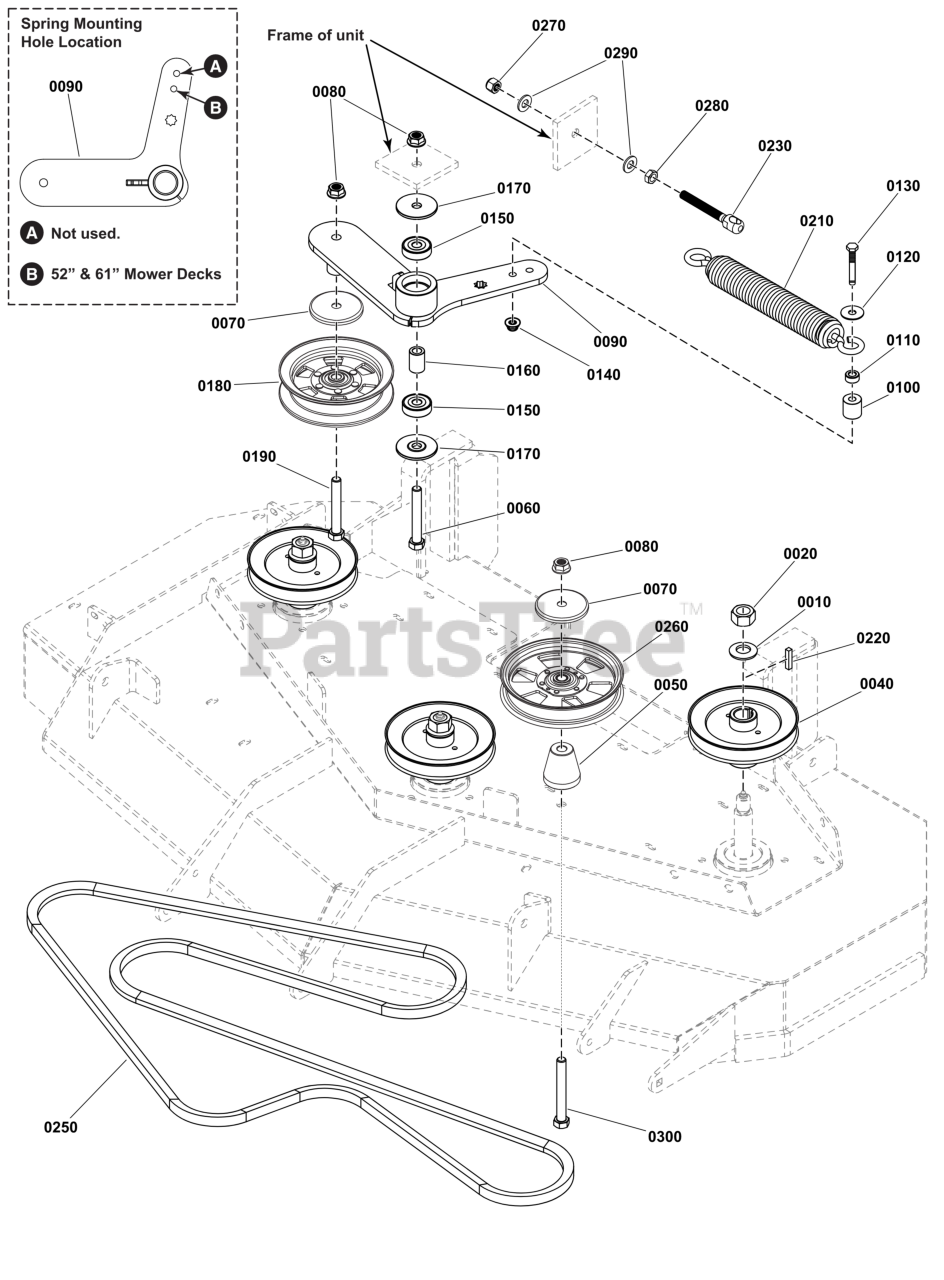

52" iCD+ Mower Deck Group - Pulleys, Belts, and Idler Arm Parts Diagram

  • Title

0010

Ferris 770223

WASHER, Belleville, 3/4

$

$

Currently unavailable

0020

Ferris 5025405SM

NUT, 3/4-16 HEX

$3.99

$

In Stock, Qty 20+

0

0040

Ferris 5104540FS

PULLEY

Note: (S/N: 4002454521 and below)

$49.99

$

In Stock, Qty 6

0

0040

Ferris 5106478FS

PULLEY, Spindle

Note: (S/N: 4002454522 and above)

$112.99

$

In Stock, Qty 6

0

0050

Ferris 5105523FS

SPACER

$30.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025017X32YP

BOLT, 1/2-13 X 4 GD5

$6.49

$

In Stock, Qty 10

0

0070

Ferris 5105145YP

SHIELD

$4.49

$

In Stock, Qty 20+

0

0080

Ferris 770225

NUT

$3.49

$

In Stock, Qty 20+

0

0090

Ferris 5413996AAFS

ARM, IDLER

$

$

Not available

0100

Ferris 5100896SM

SPACER

$8.99

$

Usually ships in 2-12 days

0

0110

Ferris 5044933SM

SPACER, .39 X .75 X .

$4.99

$

In Stock, Qty 17

0

0120

Ferris 5025165SM

WASHER, 3/8" FENDER

$4.49

$

In Stock, Qty 19

0

0130

Ferris 5025013X18SM

BOLT, 3/8-16 X 2-1/4"

$4.49

$

In Stock, Qty 20+

0

0140

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0150

Ferris 5104383YP

BEARING

$10.99

$

In Stock, Qty 16

0

0160

Ferris 5104456YP

SPACER, .51 X .84 X 1

$4.49

$

In Stock, Qty 18

0

0170

Ferris 5104379YP

SPACER

$9.49

$

In Stock, Qty 10

0

0180

Ferris 5104716YP

PULLEY, IDLER

$60.99

$

In Stock, Qty 20+

0

0190

Ferris 5025017X28SM

BOLT, 1/2-13 X 3-1/2"

$5.99

$

In Stock, Qty 18

0

0210

Ferris 5105092FS

SPRING, Extension

$57.99

$

In Stock, only 1 left!

0

0220

Ferris 5050407X20SM

KEY, 1/4" SQ X 2.50

Note: (S/N: 4002454521 and below)

$6.49

$

In Stock, Qty 9

0

0220

Ferris 5050407X8SM

KEY, 1/4" SQ. X 1.00

Note: (S/N: 4002454522 and above)

$4.49

$

In Stock, Qty 10

0

0230

Ferris 5105844YP

ANCHOR, SPRING

$16.99

$

In Stock, only 2 left!

0

0250

Ferris 84003255

BELT, DRIVE

$105.99

$

In Stock, Qty 5

0

0260

Ferris 5104717YP

PULLEY

$58.99

$

Usually ships in 2-12 days

0

0270

Ferris 5025098SM

NUT, 1/2-20 HEX NYLON

$6.49

$

In Stock, Qty 12

0

0280

Ferris 5025089SM

NUT, 1/2-20 HEX JAM

$4.49

$

In Stock, Qty 20+

0

0290

Ferris 5025158SM

WASHER, 1/2" SAE

$4.49

$

In Stock, Qty 20+

0

0300

Ferris 5025017X36SM

BOLT, 1/2-13 X 4-1/2"

$6.49

$

In Stock, Qty 7

0
