SRS Z3X (5901691) - Ferris SRS Z3X Series 61" Stand-On Mower, 30hp Kawasaki 61" Mower Deck Group - Deck Hangers Parts Diagram

SRS Z3X Series 61" Stand-On Mower, 30hp Kawasaki

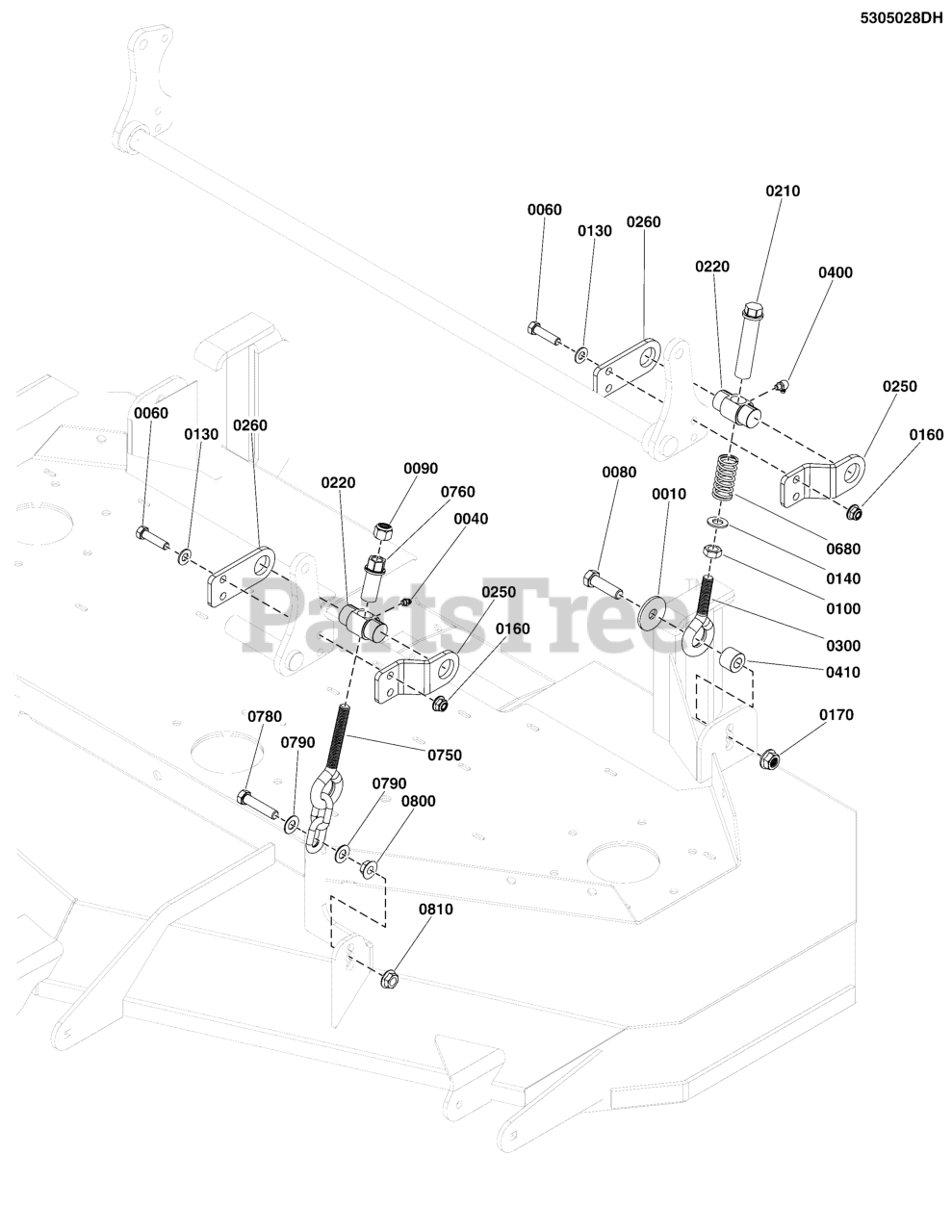

61" Mower Deck Group - Deck Hangers Parts Diagram

  • Title

0010

Ferris 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

$3.99

$

In Stock, only 1 left!

0

0040

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 1 left!

0

0060

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

0100

Ferris 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, only 1 left!

0

0130

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 20+

0

0160

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0170

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0210

Ferris 5109915FS

ADJUSTER, HEIGHT

$7.49

$

Usually ships in 2-12 days

0

0220

Ferris 5104238

PIVOT, DECK LIFT TRUNION, GREASABLE
(Superseded to 84003302)

$36.99

$

In Stock, only 2 left!

0

0250

Ferris 5413899A

BRACKET, OUTER TRUNION MNT - BLK
(Superseded to 84003301)

$17.99

$

Usually ships in 2-12 days

0

0260

Ferris 5413900A

BRACKET, INNER TRUNION MNT - BLK
(Superseded to 84003300)

$9.99

$

Usually ships in 2-12 days

0

0300

Ferris 5025579

EYE BOLT, 1/2-20 X 4.25,1.88THRD,1EYE,CZ
(Superseded to 5025579FS)

$13.99

$

Usually ships in 2-12 days

0

0400

Ferris 5025447

GREASE FITTING, 1/4-28 STRAIGHT, 90 DEGREE
(Superseded to 5025447FS)

$3.99

$

Usually ships in 2-12 days

0

0410

Ferris 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

$7.49

$

In Stock, only 2 left!

0

0680

Ferris 5105582

SPRING, COMPRESSION, .76 X .97 X 2", BLK
(Superseded to 5105582FS)

$6.49

$

In Stock, only 3 left!

0

0750

Ferris 5104309

HANGER, FRONT DECK-2LINK, 5.5" EB
(Superseded to 5104309YP)

$18.99

$

In Stock, only 2 left!

0

0760

Ferris 5105629

ADJUSTER, SHORT, DECK LIFT, CZ
(Superseded to 5105629FS)

$16.99

$

In Stock, only 2 left!

0

0780

Ferris 80018782

CAPSCREW-HEX HD 7/16-14X2.000 G8 CL/ZC
(Superseded to 1927531SM)

$5.49

$

In Stock, only 2 left!

0

0790

Ferris 80004028

WSHR,7/16 ID X .065 THK, FLAT,ZINC/CLEAR
(Superseded to 703183)

$3.99

$

In Stock, Qty 12

0

0800

Ferris 5025533

NUT, HEX, 7/16-14, SER, FLG, GD5, YZ
(Superseded to 5025533FS)

$2.99

$

Usually ships in 2-12 days

0

0810

Ferris 1930650

NUT-HEX FLANGE 7/16-14 TWO WAY LK GA BLK
(Superseded to 1930650SM)

$5.49

$

In Stock, Qty 10

0
