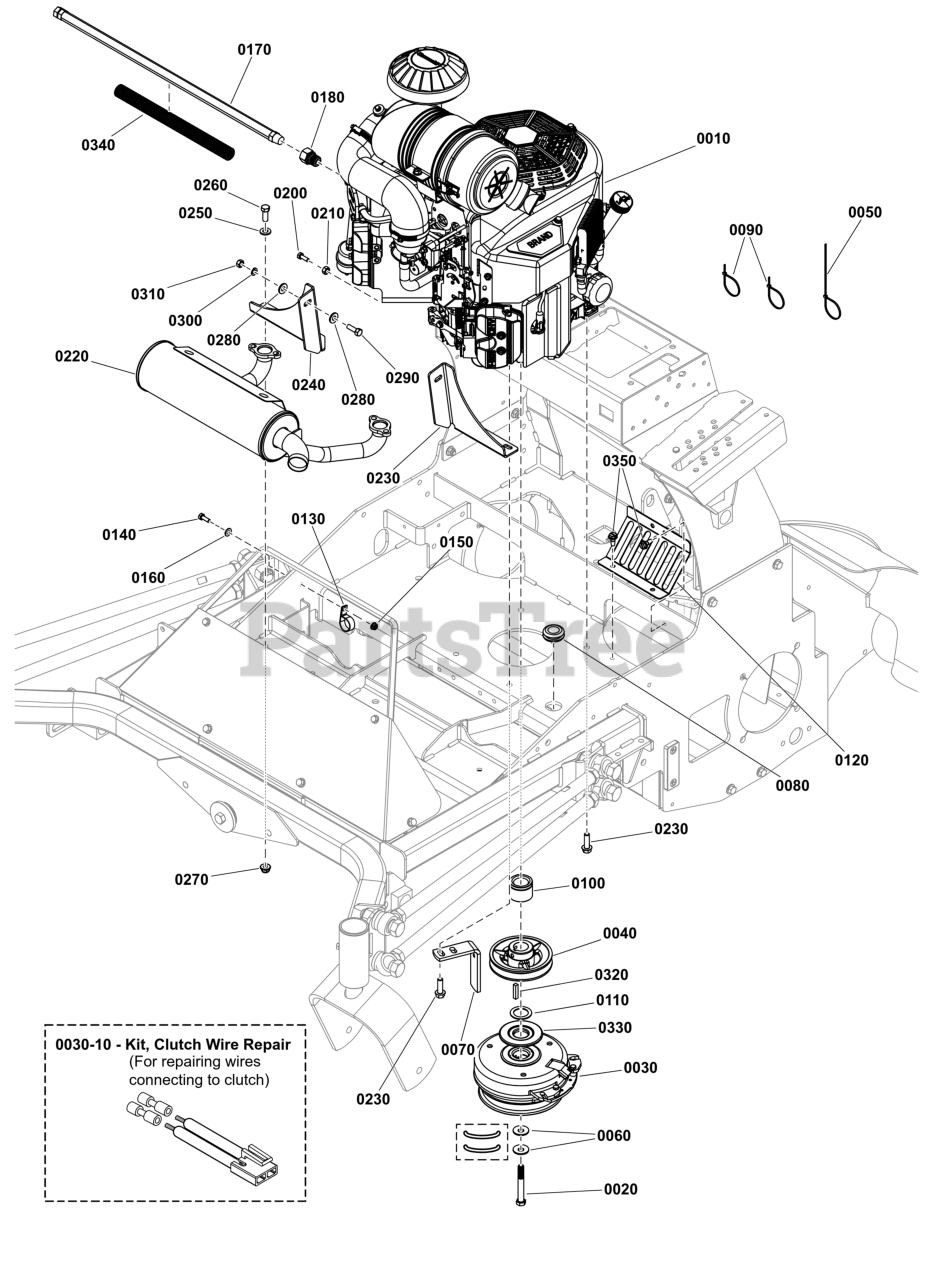

SRS Z3X (5901955) - Ferris SRS Z3X Series 52" Stand-On Mower, 27hp Kawasaki Engine and PTO Group Parts Diagram

SRS Z3X Series 52" Stand-On Mower, 27hp Kawasaki

Engine and PTO Group Parts Diagram

  • Title

0010

ENGINE, KAWASAKI, FX850V-LS00-S

Note: (Refer to Note: *)

$

$

Not available

0020

Ferris 5103300

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4, GD 8
(Superseded to 5103300YP)

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm)).

$5.99

$

In Stock, only 2 left!

0

0030

Ferris 5110177

CLUTCH, 250 LBS., 1.13", WGC
(Superseded to 5110177FS)

$509.99

$

Usually ships in 2-12 days

0

0030-10

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

$66.99

$

Usually ships in 2-12 days

0

0040

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$51.99

$

In Stock, only 2 left!

0

0050

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

0060

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0

0070

Ferris 5404967AA

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

In Stock, only 2 left!

0

0080

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

0090

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 2 left!

0

0100

Ferris 5100926

SPACER, 1.13 X 1.75 X 1.35, CZ
(Superseded to 5100926YP)

$29.99

$

Usually ships in 2-12 days

0

0110

Ferris 5102271

SHIM, .062 THK X 1-1/8 ID X 1-5/8 OD
(Superseded to 5102271FS)

$4.49

$

Usually ships in 2-12 days

0

0120

Ferris 5416571B

PLATE, FAN GUARD - RED
(Superseded to 5416571BFS)

$16.99

$

Usually ships in 2-12 days

0

0130

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

In Stock, only 2 left!

0

0140

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 7

0

0150

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 20+

0

0160

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0170

Ferris 5105630

HOSE, OIL DRAIN, 24"
(Superseded to 5105630FS)

$32.99

$

Usually ships in 2-12 days

0

0180

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$16.99

$

In Stock, only 2 left!

0

0200

Ferris 80005611

SCREW, Hex Head, M8 X 20

$

$

Currently unavailable

0210

Ferris 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

$3.49

$

Usually ships in 2-12 days

0

0220

Ferris 5104730

MUFFLER, 26, KAWASAKI, 801 BLOCK, SRS Z2
(Superseded to 5104730FS)

$278.99

$

In Stock, only 1 left!

0

0230

Ferris 5025640

BOLT, 3/8-16X1-1/4 SF, GD8, PHOS, SER HD
(Superseded to 84003591)

Note: (Torque engine mounting bolt to 50 ft-lbs (68 Nm)).

$3.49

$

In Stock, Qty 15

0

0230

Ferris 5422394B

PLATE, MUFFLER BRACKET LH, Z3 - RED

$

$

Currently unavailable

0240

Ferris 5422420B

PLATE, MUFFLER BRACKET RH, Z3 - RED

$

$

Currently unavailable

0250

Ferris 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$4.49

$

In Stock, Qty 5

0

0260

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 20+

0

0270

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0280

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$4.49

$

In Stock, Qty 10

0

0290

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 20+

0

0300

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 11

0

0310

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

0320

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 20+

0

0330

Ferris 5108851

WATER GUARD, WARNER C 250 FT-LBS CLUTCH
(Superseded to 84006413)

$14.99

$

Usually ships in 2-12 days

0

0340

Ferris 5050862X12

WIRE LOOM, 3/4 ID X 12 IN
(Superseded to 5050862X12SM)

$4.49

$

Usually ships in 2-12 days

0

0350

Ferris 5025059X6

BOLT, 5/16-18 X 3/4", SELF-TAPPING
(Superseded to 5025059X6FS)

$4.49

$

In Stock, only 2 left!

0
