SRS Z3X (5902123) - Ferris SRS Z3X Series 52" Stand-On Mower, 37hp Briggs & Stratton Electrical Group Parts Diagram

SRS Z3X Series 52" Stand-On Mower, 37hp Briggs & Stratton

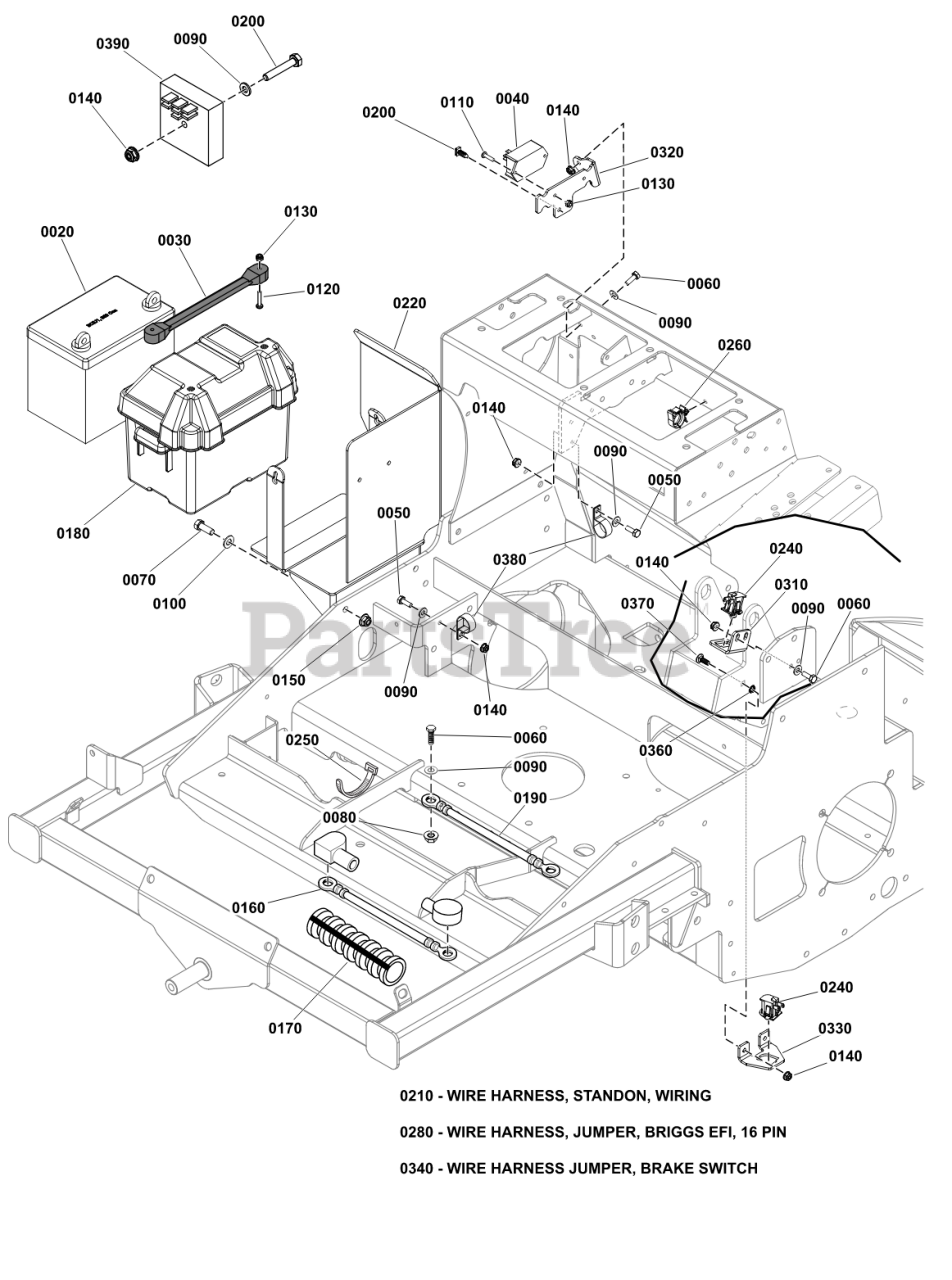

Electrical Group Parts Diagram

  • Title

0020

BATTERY, 11U1L, 350 CCA

Note: (Refer to Note: *)

$

$

Not available

0030

Ferris 5021670SM

STRAP, RUBBER

$14.99

$

In Stock, only 1 left!

0

0040

Ferris 5104879FS

MODULE

$81.99

$

In Stock, only 1 left!

0

0050

Ferris 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, Qty 16

0

0070

Ferris 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, only 3 left!

0

0080

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

0090

Ferris 84007033

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0100

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 5025179X6SM

SCREW - #10-24

$7.49

$

Usually ships in 2-12 days

0

0120

Ferris 5025270SM

SCREW, #10-24 X 1" RS

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 5025271FS

NUT

$3.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025391FS

NUT

$4.49

$

In Stock, Qty 7

0

0150

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0160

Ferris 5021542SM

BATTERY CABLE, POSITI

$31.99

$

Usually ships in 2-12 days

0

0170

Ferris 5050927X19FS

WIRE, Loom

$5.49

$

In Stock, only 1 left!

0

0180

Ferris 5100688YP

BATTERY BOX, W/ DRAIN

$69.99

$

Usually ships in 2-12 days

0

0190

Ferris 5101396YP

CABLE-BATTERY, BLACK

$37.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025010X12SM

BOLT, 1/4-20

$3.49

$

In Stock, only 1 left!

0

0210

Ferris 5105537FS

HARNESS, WIRING

$207.99

$

Usually ships in 2-12 days

0

0220

Ferris 5416573BFS

WELDMENT

$136.99

$

Usually ships in 2-12 days

0

0240

Ferris 1732004SM

SWITCH-PUSH BUTTON

$9.49

$

In Stock, Qty 9

0

0250

Ferris 5021029SM

TIE WRAP, 11" Long

$

$

Not available

0260

Ferris 5104705YP

CLIP

$2.99

$

Usually ships in 2-12 days

0

0280

Ferris 84006567

HARNESS, Jumper

$116.99

$

Usually ships in 2-12 days

0

0310

Ferris 5416656AA

PLATE, BRAKE SWITCH, Z3 - BLK

$

$

Currently unavailable

0320

Ferris 5415790AA

PLATE, WIRE GUIDE / TDM MOUNT, EFI - BLACK

$

$

Currently unavailable

0330

Ferris 5105692FS

PLATE, SWITCH

$6.49

$

Usually ships in 2-12 days

0

0340

Ferris 5416834FS

HARNESS, JUMPER

$32.99

$

Usually ships in 2-12 days

0

0360

Ferris 703826

BOLT, PUSHNUT 1/4

$3.49

$

In Stock, Qty 20+

0

0370

Ferris 703575

BOLT, 1/4-20X.750, SQ

$3.99

$

In Stock, only 2 left!

0

0380

Ferris 5021500FS

CLAMP

$4.49

$

Usually ships in 2-12 days

0

0390

Ferris 84006408

MODULE, Throttle Control

$235.99

$

Usually ships in 2-12 days

0
