SRS Z3X (5902217) - Ferris SRS Z3X Series 52" Stand-On Mower, 40hp Briggs & Stratton 52" iCD+ Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

SRS Z3X Series 52" Stand-On Mower, 40hp Briggs & Stratton

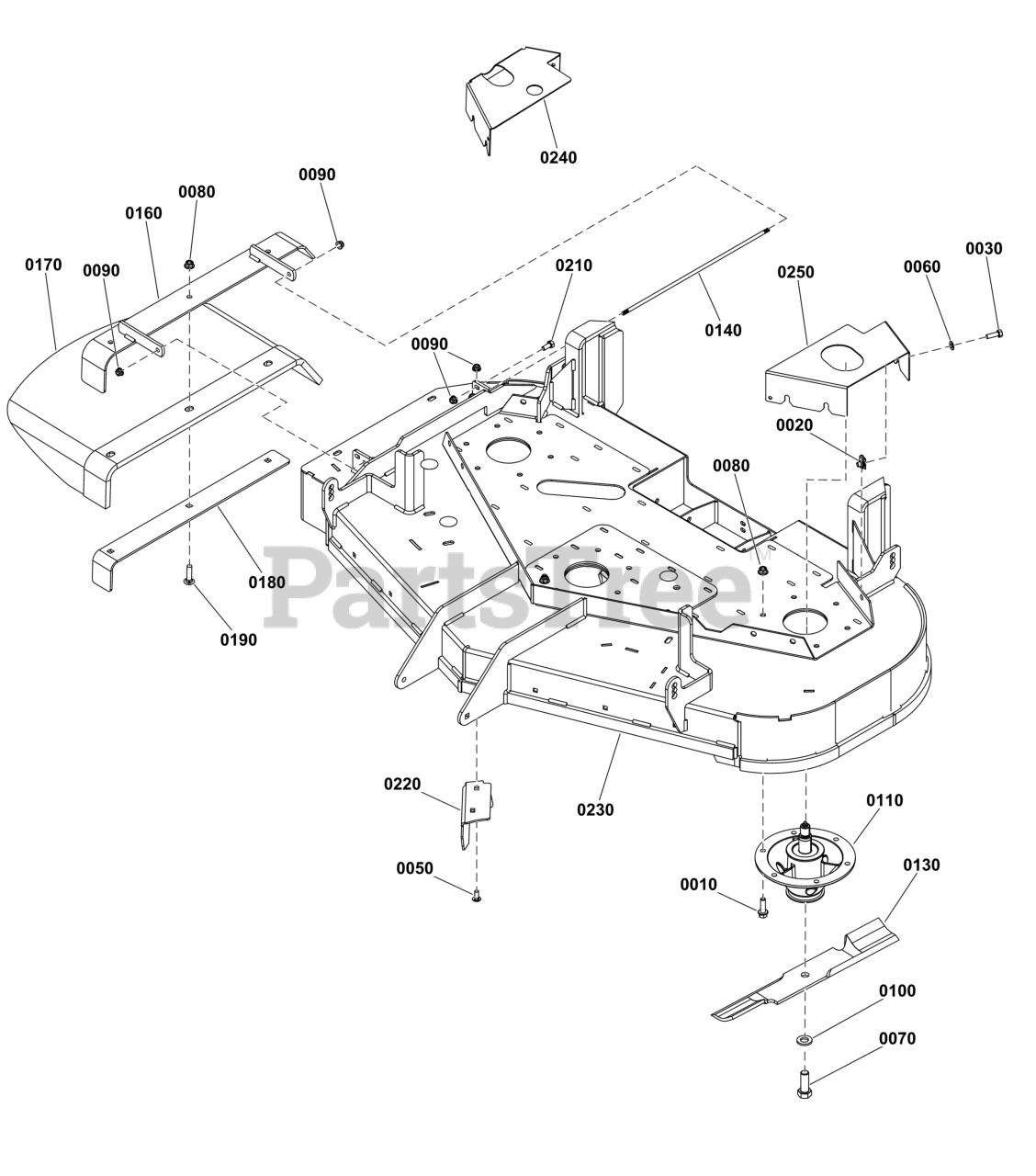

52" iCD+ Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

0010

Ferris 5025390X10FS

BOLT

Note: (Torque spindle mounting bolts to: 25-30 ft-lbs (34-41 Nm))

$2.99

$

Usually ships in 2-12 days

0

0020

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, Qty 20+

0

0030

Ferris 5025011X8FS

BOLT

$3.99

$

In Stock, Qty 20+

0

0050

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

In Stock, Qty 14

0

0060

Ferris 703350

WASHER

$4.49

$

In Stock, Qty 20+

0

0070

Ferris 5025320X14FS

BOLT

Note: (Torque blade mounting bolts to: 120-135 ft-lbs (163-183 Nm))

$4.49

$

In Stock, Qty 20+

0

0080

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0090

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0100

Ferris 5025477SM

WASHER, 5/8" YZ

$4.49

$

In Stock, Qty 20+

0

0110

Ferris 5100993SM

SPINDLE ASSY

$179.99

$

In Stock, only 4 left!

0

0130

Ferris 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)

Note: (Set of 3 blades)

$

$

Currently unavailable

0140

Ferris 84012860

ROD, Chute (Includes hardware)

$

$

Currently unavailable

0160

Ferris 84008171

MOUNT

$92.99

$

Usually ships in 2-12 days

0

0170

Ferris 84011105

CHUTE, Discharge

$

$

Currently unavailable

0180

Ferris 84003245

PLATE, SUPPORT

$29.99

$

In Stock, Qty 5

0

0190

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$4.49

$

In Stock, only 2 left!

0

0210

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, Qty 20+

0

0220

PLATE, DEFLECTOR, 52+ DECK - BLK

$

$

Not available

0230

Ferris 84012849

WELD, MOWER DECK, SRSZ3-52+ - RED

$

$

Currently unavailable

0240

GUARD, Z3-52+, DECK-RH - RED

$

$

Not available

0250

GUARD, Z3-52+, DECK-LH - RED

$

$

Not available
