SRT 9516 (7800942-00) - Snapper Rear-Tine Tiller Engine Group Parts Diagram

Rear-Tine Tiller

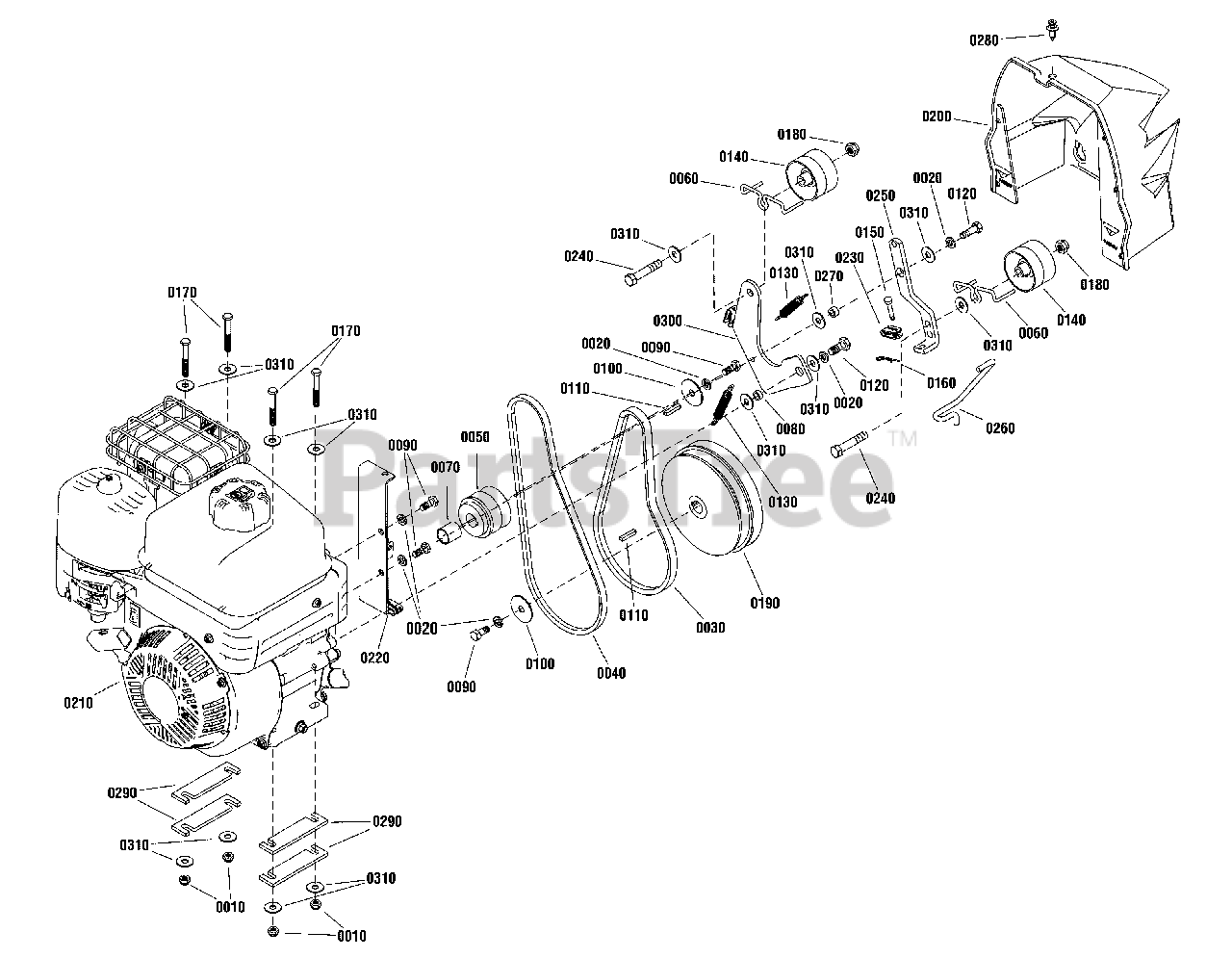

Engine Group Parts Diagram

  • Title

0010

Snapper 5025056

NUT, Nylock, 5/16-18
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

0020

Snapper 1916165

WASHER, Locking, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0030

Snapper 1716766

BELT, Forward
(Superseded to 1716766SM)

$23.99

$

In Stock, Qty 7

0

0040

Snapper 1722144

BELT, Reverse
(Superseded to 37X139MA)

$22.99

$

In Stock, Qty 5

0

0050

Snapper 1722158

PULLEY, Two-Groove, 3/4
(Superseded to 1722158SM)

$185.99

$

Usually ships in 2-12 days

0

0060

Snapper 1722162

GUIDE, Belt, Reverse
(Superseded to 1722162SM)

$36.99

$

Usually ships in 2-12 days

0

0070

Snapper 706216

SPACER, Drive Pulley, .9

$16.99

$

Usually ships in 2-12 days

0

0080

Snapper 1738666

BUSHING, Reverse Arm
(Superseded to 1738666YP)

$16.99

$

Usually ships in 2-12 days

0

0090

Snapper 1921515

BOLT, Heax Head 5/16-24 x 3/4
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0100

Snapper 1716770

WASHER, 5/16 x 1 1/2
(Superseded to 1716770SM)

$6.99

$

Usually ships in 2-12 days

0

0110

Snapper 1716771

KEY, Square, 3/16 x 1
(Superseded to 1716771YP)

$5.99

$

Usually ships in 2-12 days

0

0120

Snapper 1921982

BOLT, Heax Head 5/16-24 x 1
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

0130

Snapper 1716802

SPRING, Forward Arm
(Superseded to 1716802SM)

$11.99

$

Usually ships in 2-12 days

0

0140

Snapper 1716803

PULLEY, Idler, Forward
(Superseded to 1716803SM)

$45.99

$

Usually ships in 2-12 days

0

0150

Snapper 1716702

PIN, Clevis
(Superseded to 1716702SM)

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper 1716703

PIN, Cotter, 5/64 x 1/2
(Superseded to 1716703SM)

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper 1921978

CAPSCREW, Hex Head, 5/16-18 x 2
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

0180

Snapper 5025096

NUT, Nylock, 3/8-16
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

0190

Snapper 1722163

PULLEY, Two-Groove, Transmission
(Superseded to 1722163SM)

$125.99

$

Usually ships in 2-12 days

0

0200

Snapper 706109

COVER, Belt

$854.99

$

Usually ships in 2-12 days

0

0210

Snapper 130G32-0040-F1

* ENGINE, 9.5 GrossTP B&S 950 Series, Mod. 130G32-0040-F1

$

$

Currently unavailable

0220

Snapper 706199

CABLE PULL ASSEMBLY

$32.99

$

Usually ships in 2-12 days

0

0230

Snapper 706200

YOKE, Dual Slot

$5.49

$

Usually ships in 2-12 days

0

0240

Snapper 7091305

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 7091305SM)

$4.49

$

In Stock, Qty 6

0

0250

Snapper 1738668

ARM, Forward
(Superseded to 1738668YP)

$24.99

$

Usually ships in 2-12 days

0

0260

Snapper 1738650

GUIDE, Belt
(Superseded to 1738650YP)

$42.99

$

Usually ships in 2-12 days

0

0270

Snapper 1738651

BUSHING, Forward Arm
(Superseded to 1738651YP)

$18.99

$

Usually ships in 2-12 days

0

0280

Snapper 1738772

RIVET, Push-In, Plastic
(Superseded to 1738772YP)

$9.49

$

Usually ships in 2-12 days

0

0290

Snapper 1738654

SHIM, Engine Weight Block
(Superseded to 1738654YP)

$20.99

$

Usually ships in 2-12 days

0

0300

Snapper 1738665

ARM, Reverse
(Superseded to 1738665YP)

$83.99

$

Usually ships in 2-12 days

0

0310

Snapper 1918265

WASHER, Flat, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0
