SRT XD (RSSXD161999KE) - Spartan 61" Zero-Turn Mower (SN: 400000000 - 999999999) 61 Inch Cutting Deck Assembly Parts Diagram

61" Zero-Turn Mower

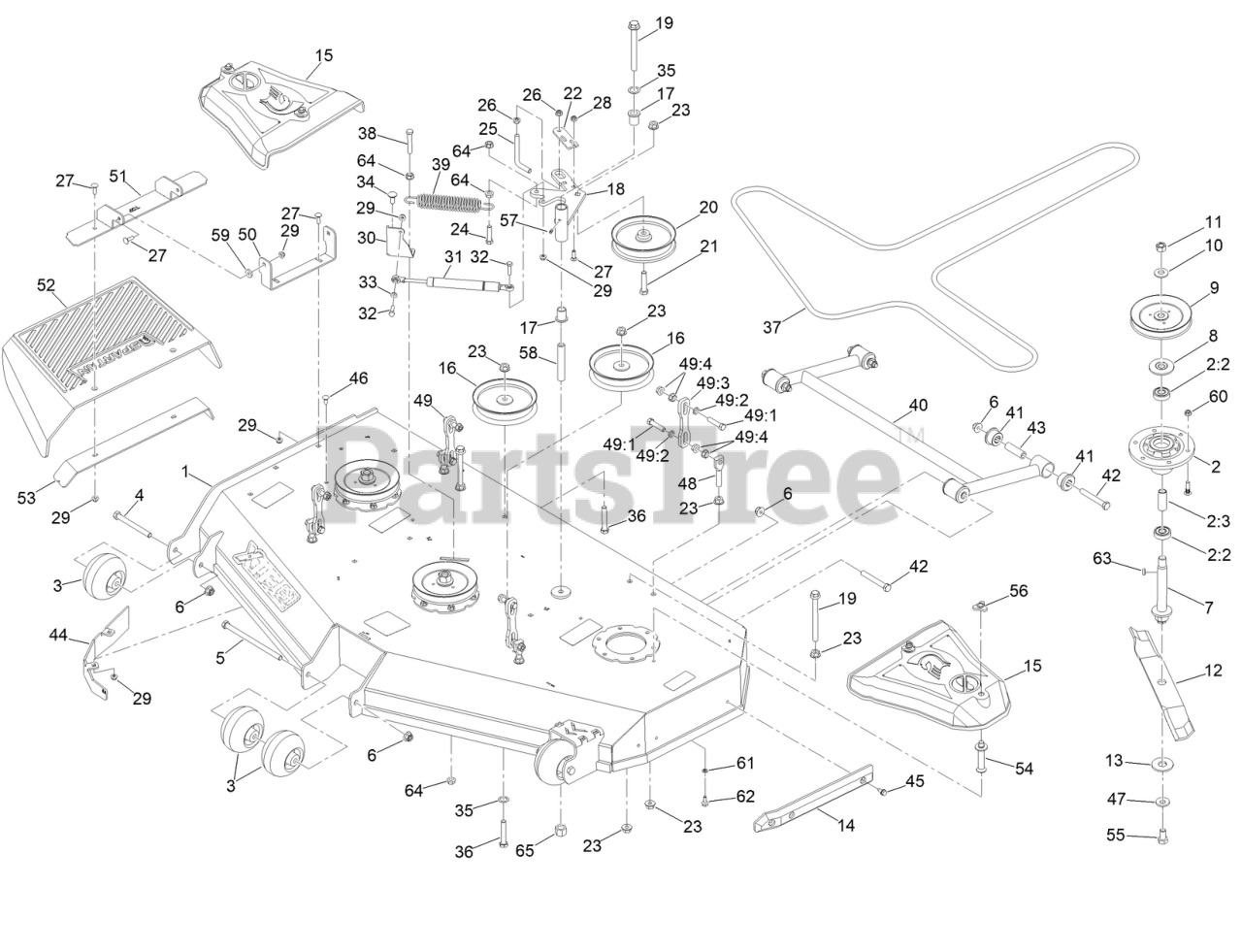

61 Inch Cutting Deck Assembly Parts Diagram

  • Title

1

Toro 148-0787

ASM-DECK W/DECALS

$

$

Currently unavailable

2

Toro 148-0005

SPINDLE ASM 6" DECK

$

$

Currently unavailable

2:2

Toro 116-0720

BEARING-BALL

$25.99

$

In Stock, Qty 20+

0

2:3

Toro 148-0026

SPACER, BEARING

$4.99

$

Usually ships in 3-6 days

0

3

Toro 422-0061-00

MWR ANTI-SCALP WHL W/O GREASE FITTING

$

$

Currently unavailable

4

Toro 418-0016-00

SCREW-HH

$

$

Currently unavailable

5

Toro 418-0015-00

1/2-13 X 8-1/2 HEX C/S GR 2 ZINC YELLOW

$

$

Currently unavailable

6

Toro 413-0002-00

NUT-LOCK

$

$

Currently unavailable

7

Toro 148-0106

SHAFT - SPINDLE

$

$

Currently unavailable

8

Toro 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

9

Toro 148-0030

PULLEY

$

$

Currently unavailable

10

Toro 148-0113

M20 SPRING WASHER (44.5MMOD/ 3.3MM THK)

$

$

Currently unavailable

11

Toro 148-0111

M20X1.5 C8.8 HEX NUT

$

$

Currently unavailable

12

Toro 148-0099

BLADE-ROTARY

$

$

Currently unavailable

13

Toro 148-0108

WASHER-HEX

$

$

Currently unavailable

14

Toro 429-0001-00

MWR NYLON DECK GUARD

$

$

Currently unavailable

15

Toro 148-0093

COVER-BELT

$

$

Currently unavailable

16

Toro 433-0015-00

6-3/4IN IDLER PULLEY 15/16IN SPACER ASSY

$

$

Currently unavailable

17

Toro 410-0007-00

3/4IN ID X15/16IN OD X 1-1/8IN FLNG BUSH

$

$

Currently unavailable

18

Toro 490-0019-00-P11

MWR DECK IDLER PULLEY ARM ASSY PAINT

$

$

Currently unavailable

19

Toro 418-0009-00

1/2-13 X 5-1/2 HEX FLANGE BOLT GR 8 ZY

$

$

Currently unavailable

20

Toro 433-0014-00

6-3/4IN IDLER PULLEY 7/16IN SPACER ASM

$

$

Currently unavailable

21

Toro 325-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

22

Toro 439-0257-00-P11

DECK IDLER PULLEY BELT RETNR BRKT PAINT

$

$

Currently unavailable

23

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

24

Toro 324-7

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

25

Toro 148-1137

BOLT-L

$

$

Currently unavailable

26

Toro 413-0020-00

3/8-16 HEX FLANGE NUT W/SERR ZINC YELLOW

$

$

Currently unavailable

27

Toro 418-0060-00

5/16-18 X 1 CARRIAGE BOLT GR 8 YZ

$

$

Currently unavailable

28

Toro 413-0022-00

NUT-HF

$

$

Currently unavailable

29

Toro 413-0027-00

NUT-HF, NI

$

$

Currently unavailable

30

Toro 439-0335-00-P11

DECK BELT IDLER DAMPER MTG BRKT PAINTED

$

$

Currently unavailable

31

Toro 434-0009-00

IDLER GAS SPRING

$

$

Currently unavailable

32

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

33

Toro 413-0016-00

.312IDX.625ODX.062 THK THRUST BRG OI BRZ

$

$

Currently unavailable

34

Toro 3232-1

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

35

Toro 418-0110-00

.767IDX1.125ODX.016 THK TRIP WV WASHER

$

$

Currently unavailable

36

Toro 418-0246-00

1/2-13 X 2-3/4 HEX FLANGE BOLT (GR.8) YZ

$

$

Currently unavailable

37

Toro 461-0002-00

61 DECK BELT

$

$

Currently unavailable

38

Toro 418-0013-00

BOLT-HH

$

$

Currently unavailable

39

Toro 434-0007-00

MWR DECK SPRING

$

$

Currently unavailable

40

Toro 490-0014-00-P11

54IN/61IN DECK FRAME STABILIZER PAINTED

$

$

Currently unavailable

41

Toro 732-2000-00

RED A80 SUSP BUSHING

$

$

Currently unavailable

42

Toro 418-0021-00

1/2-13 X 3-3/4 HEX C/S (GR.5) ZC/YEL

$

$

Currently unavailable

43

Toro 732-2001-00

UTV A-ARM BUSHING SLEEVE

$

$

Currently unavailable

44

Toro 148-0208-P11

BAFFLE-WIPER

$

$

Currently unavailable

45

Toro 9264964

SCREW-HWH, THREAD CUT

$1.99

$

In Stock, only 4 left!

0

46

Toro 418-0008-00

BOLT-CARR

$

$

Currently unavailable

47

Toro 148-0114

M16 SPRING WASHER (39MMOD/ 3.9MM THK)

$

$

Currently unavailable

48

Toro 448-0001-00

MWR DECK HEIGHT ADJUSTMENT STUD

$

$

Currently unavailable

49

Toro 435-0007-KT

MWR DECK SUSP LINK ASSY

$

$

Currently unavailable

49:1

Toro 435-0007-00-P11

MWR DECK SUSP LINK PAINT

$

$

Currently unavailable

49:2

Toro 324-8

SCREW-HH

$6.49

$

In Stock, Qty 8

0

49:3

Toro 419-0010-00

.443 ID X .749 OD X .125 THK NYLON BLACK

$

$

Currently unavailable

49:4

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

50

Toro 439-0111-00-P11

MWR CHUTE MTG BRKT PAINTED

$

$

Currently unavailable

51

Toro 490-0056-00-P11

RT/SRT DECK CHUTE HINGE ASSY PAINT

$

$

Currently unavailable

52

Toro 481-0011-00

2020 RT/SRT RUBBER DISCHARGE CHUTE

$

$

Currently unavailable

53

Toro 439-0190-00-P11

2020 DECK CHUTE HINGE BACKER BRKT PAINT

$

$

Currently unavailable

54

Toro 148-0094

PIN-BELT COVER

$

$

Currently unavailable

55

Toro 148-0109

M16X1.5-30MM C10.9 HEX BOLT

$

$

Currently unavailable

56

Toro 148-0234

NUT-KNOB

$

$

Currently unavailable

57

Toro 424-0002-00

1/4IN DRIVE TYPE GREASE FITTING YZ

$

$

Currently unavailable

58

Toro 425-0006-00

MWR INNER IDLER SPACER

$

$

Currently unavailable

59

Toro 419-0006-00

.312 ID X .875OD X .1875 THK F/W NYL

$

$

Currently unavailable

60

Toro 413-0029-00

NUT-HEX

$

$

Currently unavailable

61

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

62

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

63

Toro 148-0118

6MM X 6MM X 20MM ROUNDED MACHINE KEY

$

$

Currently unavailable

64

Toro 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

65

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
