SRT XDE (RSSXDE61801KX) - Spartan 61" Zero-Turn Mower (SN: 400000000 - 999999999) Transmission Assembly Parts Diagram

61" Zero-Turn Mower

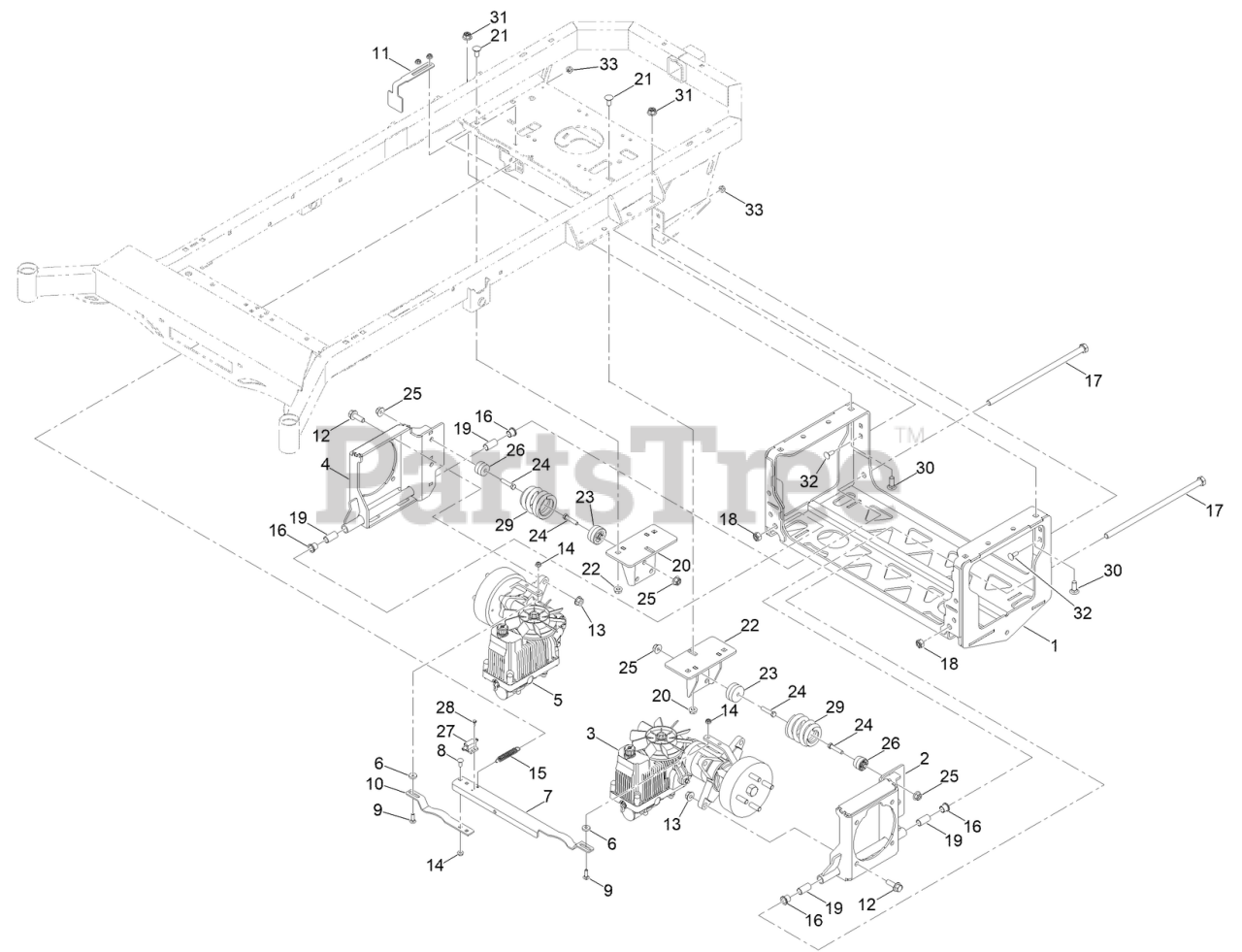

Transmission Assembly Parts Diagram

  • Title

1

Toro 148-0991-P11

HYDRO FRAME ASM

$

$

Currently unavailable

2

Toro 490-0009-00-P11

MWR LT RR SUSP ASSY-SRT-PRO HD

$

$

Currently unavailable

3

Toro 450-0005-00

HTJ12 PARKER LT SIDE HYDROSTATIC TRANSM

$

$

Currently unavailable

4

Toro 490-0010-00-P11

MWR RT RR SUSP ASSY-SRT-PRO HD PAINTED

$

$

Currently unavailable

5

Toro 450-0006-00

HTJ12 PARKER RT SIDE HYDROSTATIC TRANSM

$

$

Currently unavailable

6

Toro 419-0006-00

.312 ID X .875OD X .1875 THK F/W NYL

$

$

Currently unavailable

7

Toro 439-0607-00-P11

MWR PARK BRAKE BRKT LT PAINT

$

$

Currently unavailable

8

Toro 418-0008-00

BOLT-CARR

$

$

Currently unavailable

9

Toro 418-0010-00

BOLT-CARR

$

$

Currently unavailable

10

Toro 439-0606-00-P11

MWR PARK BRAKE BRKT RT PAINT

$

$

Currently unavailable

11

Toro 439-0066-00-P11

STAND TRANS BRAKE INTERLOCK BRKT PAINT

$

$

Currently unavailable

12

Toro 100-6116

SCREW-HHF

$9.99

$

Usually ships in 3-6 days

0

13

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

14

Toro 413-0019-00

5/16-18 NYLON INSERT FLANGE L/NUT ZC

$

$

Currently unavailable

15

Toro 434-0003-00

MWR BRAKE PEDAL RELEASE SPRING

$

$

Currently unavailable

16

Toro 135-9063

BUSHING-FLANGE

$4.99

$

Usually ships in 3-6 days

0

17

Toro 418-0058-00

5/8-11 X 15IN HEX C/S GR 2 ZC 3IN THD L

$

$

Currently unavailable

18

Toro 413-0050-00

5/8-11 NYLON INSERT FLANGE L/NUT ZINC

$

$

Currently unavailable

19

Toro 410-0019-00

.625 ID X .750 OD X 1.500IN OI BUSHING

$

$

Currently unavailable

20

Toro 490-0069-00-P11

MWR SUSP FRAME BRKT ASSY PAINT

$

$

Currently unavailable

21

Toro 3232-1

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

22

Toro 413-0001-00

7/16-14 HEX FLANGE NUT W/SERR ZINC

$

$

Currently unavailable

23

Toro 434-0010-00

SUSP SPRING INSIDE GUIDE

$

$

Currently unavailable

24

Toro 418-0051-00

3/8-16 X 1-3/4 HEX C/S GR 2 ZINC

$

$

Currently unavailable

25

Toro 413-0013-00

3/8-16 NYLON INSERT FLANGE L/NUT YZ

$

$

Currently unavailable

26

Toro 434-0011-00

SUSP SPRING OUTSIDE GUIDE

$

$

Currently unavailable

27

Toro 486-0030-00

NO PLUNGER LIMIT SWITCH

$

$

Currently unavailable

28

Toro 418-0032-00

8-32 X 1/2 IND. HWH SLOT TYPE F TCS ZINC

$

$

Currently unavailable

29

Toro 587-0002-00

SRT RR SUSP SPRING

$

$

Currently unavailable

30

Toro 3233-1

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

31

Toro 413-1005-00

1/2-13 HEX FLANGE 2-WAY REV CNTR L/NYZ

$

$

Currently unavailable

32

Toro 418-0045-00

3/8-16 X 1 CARRIAGE BOLT YZ GR.8

$

$

Currently unavailable

33

Toro 413-0029-00

NUT-HEX

$

$

Currently unavailable
