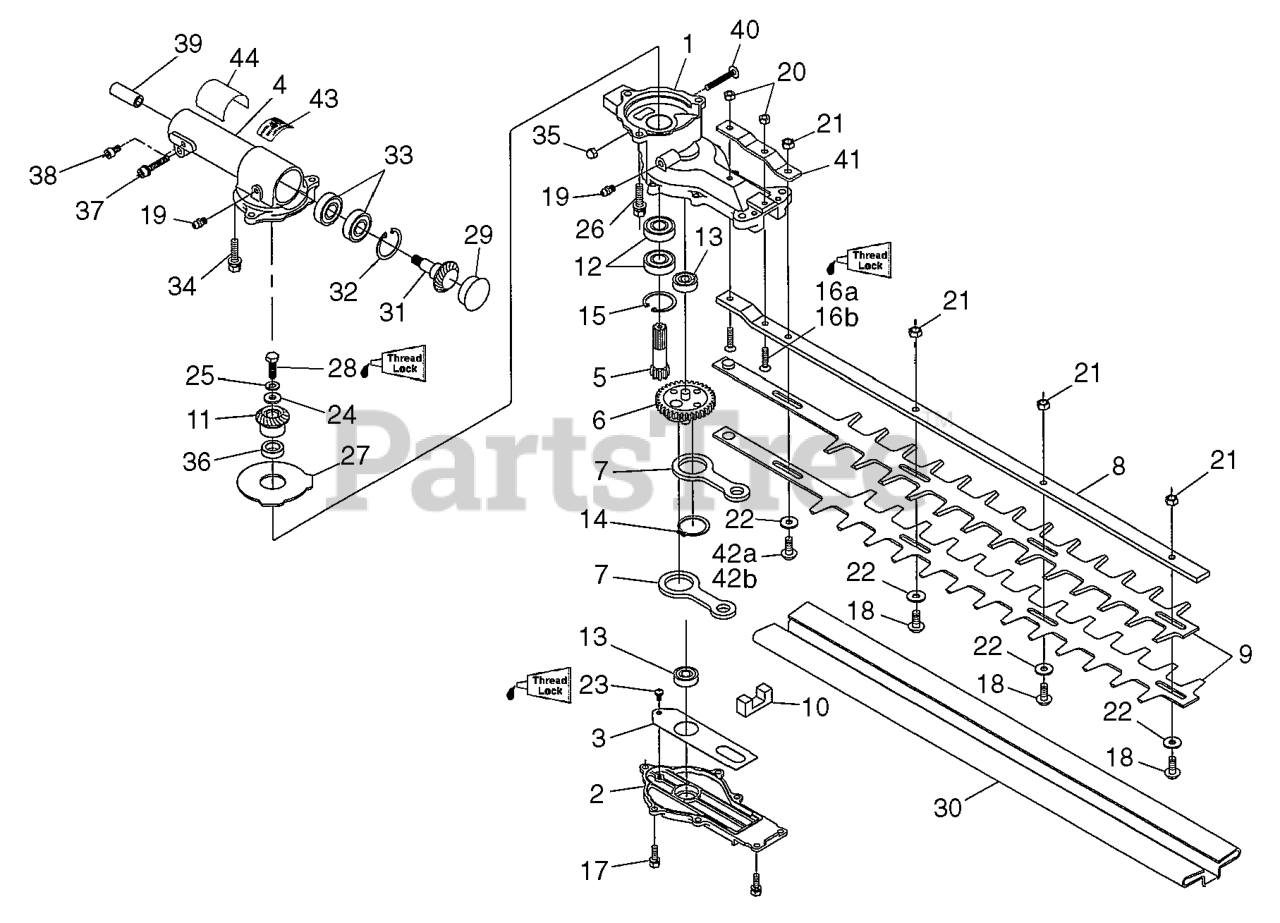

SRTF-A - RedMax Short Reach Hedge Trimmer (2012-11) > Parts Diagrams (1) > PRODUCT COMPLETE

  • Title
510974101

1

CASING A

Part# 510974101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $122.97

510974201

2

COVER

Part# 510974201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $50.30

510974301

3

PLATE

Part# 510974301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $22.35

510974001

4

CASING (REPLS -61A0)

Part# 510974001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $197.88

510974401

5

PINION GEAR

Part# 510974401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $95.02

510974501

6

CRANK GEAR

Part# 510974501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $167.69

510974801

7

ROD

Part# 510974801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $42.47

510974701

8

GUIDE PLATE

Part# 510974701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $122.97

510976201

9

BLADE

Part# 510976201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $201.23

510974901

10

FELT

Part# 510974901

OEM Warranty Repair Part for RedMax

Not available

510975001

11

BEVEL GEAR A

Part# 510975001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $95.02

510974601

12

BEARING

Part# 510974601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $42.47

515697801

13

BEARING

Part# 515697801 (Superseded to 516130201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $14.52

510549101

14

Part# 510549101

OEM Warranty Repair Part for RedMax

Not available

510550901

15

Part# 510550901

OEM Warranty Repair Part for RedMax

Not available

510975201

16a

SCREW

Part# 510975201

Note: 16MM

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

581615901

16b

Part# 581615901

Note: 20MM

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

510453801

17

SCREW

Part# 510453801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

521297501

18

SCREW(R3873,388411750&11770

Part# 521297501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

505171501

19

FITTING

Part# 505171501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

510975301

20

U NUT M5

Part# 510975301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

515232101

21

NUT

Part# 515232101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

515232001

22

WASHER

Part# 515232001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

581631601

23

Part# 581631601

OEM Warranty Repair Part for RedMax

Not available

515698601

24

WASHER

Part# 515698601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

510488001

25

WASHER

Part# 510488001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

510454401

26

BOLT

Part# 510454401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

510975401

27

PLATE

Part# 510975401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $32.41

574293501

28

HANDLE ASSY

Part# 574293501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $25.70

510975101

29

COVER

Part# 510975101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.52

510976301

30

COVER

Part# 510976301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $42.47

510975601

31

BEVEL GEAR B

Part# 510975601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $111.79

516125501

32

RING,SNAP M26x1.2 RP-318013340

Part# 516125501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

516131201

33

BEARING

Part# 516131201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.52

510975701

34

BOLT M6X25

Part# 510975701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

510976101

35

OBSOLETE - NUT M5

Part# 510976101

OEM Warranty Repair Part for RedMax

Not available

510975901

36

COVER

Part# 510975901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $16.76

514234801

37

BOLT

Part# 514234801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

516070401

38

OBSOLETE - BOLT, M5 x 12

Part# 516070401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

515698901

39

JOINT

Part# 515698901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $22.35

510976001

40

OBSOLETE - SCREW M5X35

Part# 510976001

OEM Warranty Repair Part for RedMax

Not available

581615801

41

Part# 581615801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.52

521297501

42a

SCREW(R3873,388411750&11770

Part# 521297501

Note: 19MM

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

515236401

42b

SCREW.L22

Part# 515236401

Note: 22MM

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

510972901

43

Part# 510972901

OEM Warranty Repair Part for RedMax

Not available

581616001

44

Part# 581616001

OEM Warranty Repair Part for RedMax

Not available
