SRTZ 2401 F - RedMax Short Reach Hedge Trimmer (SN: 60100101 & Above) HANDLE CONTROLS Parts Diagram

Short Reach Hedge Trimmer

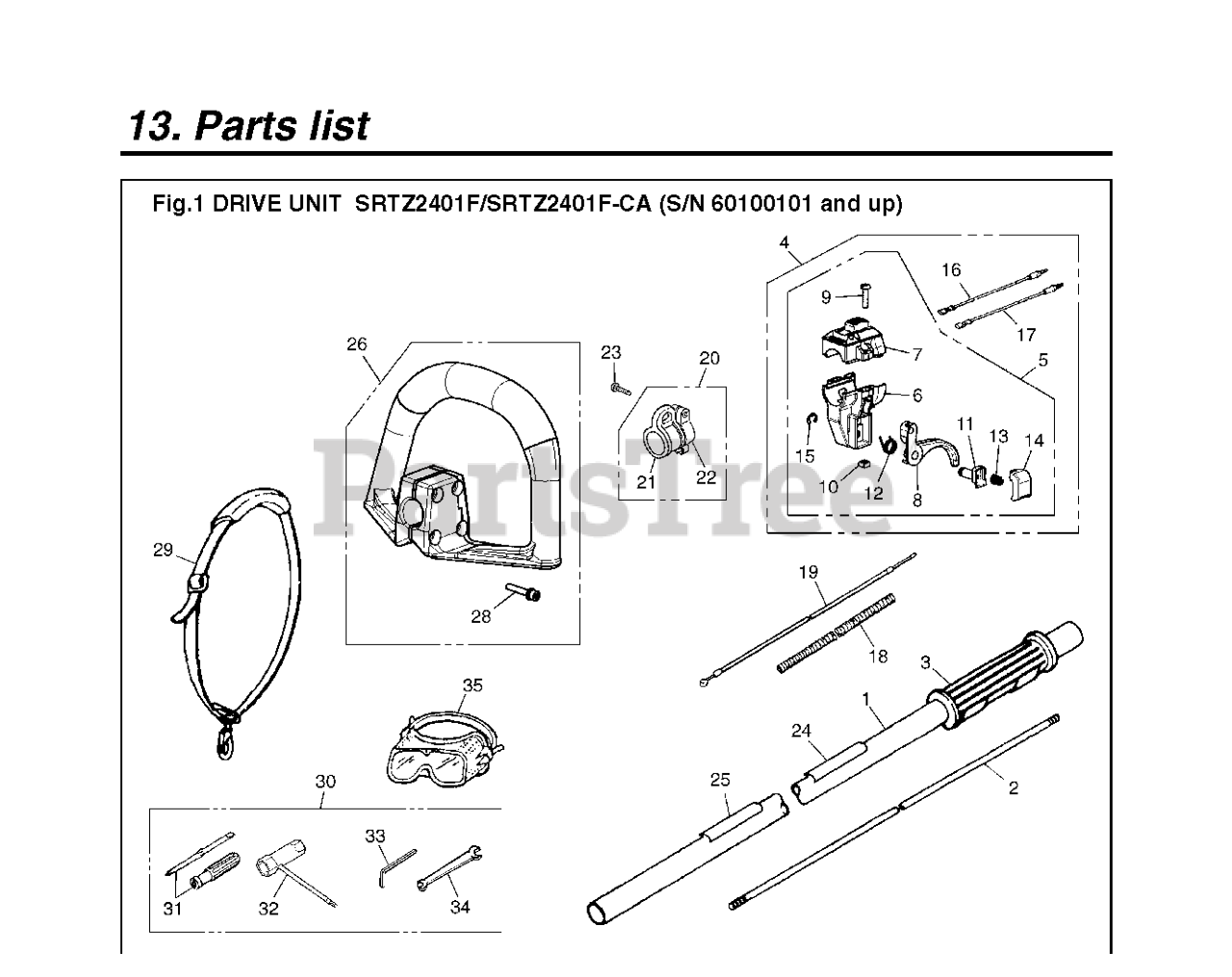

HANDLE CONTROLS Parts Diagram

  • Title

1

RedMax 511521501

PIPE-C
(Superseded to 588677001)

$79.99

$

Usually ships in 3-10 days

0

2

RedMax 521811601

SHAFT

$41.99

$

In Stock, only 2 left!

0

3

RedMax 521651001

OBSOLETE - GRIP (RPL 322011330&357732141)

$

$

Not available

4

RedMax 521529701

LEVER COMP (RPLS 8488R20343)

Note: . 5 6 7-17

$

$

Not available

5

RedMax 521529601

LEVER (FLEX. LEVER)(RPLS -13)

Note: . 6 7 8-15

$

$

Not available

6

RedMax 521419001

STAY

$

$

Not available

7

RedMax 521531101

COVER COMP (RPLS 611014410-02)

$31.99

$

Usually ships in 3-10 days

0

8

RedMax 521803201

$

$

Not available

9

RedMax 521419301

SCREW

$

$

Not available

10

RedMax 521419401

NUT

$

$

Not available

11

RedMax 521419501

SHAFT

$

$

Not available

12

RedMax 521419601

SPRING

$

$

Not available

13

RedMax 521419701

SPRING

$

$

Not available

14

RedMax 512506701

$

$

Not available

15

RedMax 521419901

E-RING

$

$

Not available

16

RedMax 521803401

CORD (A), BLACK

Note: A-BLACK

$7.99

$

Usually ships in 3-10 days

0

17

RedMax 521803501

CORD (B), RED

Note: B-RED

$17.99

$

Usually ships in 3-10 days

0

18

RedMax 512497101

TUBE

$

$

Not available

19

RedMax 512498601

CABLE-C

$

$

Not available

20

RedMax 521822101

HANGER COMP.

Note: . 21 22

$

$

Not available

21

RedMax 521822201

HANGER
(Superseded to 521822101)

$

$

Not available

22

RedMax 521822301

$

$

Not available

23

RedMax 521515301

SCREW

$3.49

$

In Stock, only 2 left!

0

24

RedMax 527063401

$

$

Not available

25

RedMax 512522501

$

$

Not available

26

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

Note: . 28

$21.99

$

Usually ships in 3-10 days

0

28

RedMax 521863101

SCREW

$2.49

$

In Stock, Qty 11

0

29

RedMax 512572001

HARNESS-ASSY***
(Superseded to 521651101)

$15.99

$

In Stock, only 2 left!

0

30

RedMax 521532201

TOOL-SET

Note: . 31 32 33 34

$

$

Not available

31

RedMax 506689501

DRIVER

$5.99

$

Usually ships in 3-10 days

0

32

RedMax 506686101

SOCKET

$7.49

$

In Stock, only 4 left!

0

33

RedMax 505311901

WRENCH

$

$

Not available

34

RedMax 506615001

SPANNER

$5.99

$

Usually ships in 3-10 days

0

35

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available
