SRTZ 2460 F - RedMax Short Reach Hedge Trimmer (SN: 00100101 & Above) (2010-04) 003 - CUTTING UNIT Parts Diagram

Short Reach Hedge Trimmer

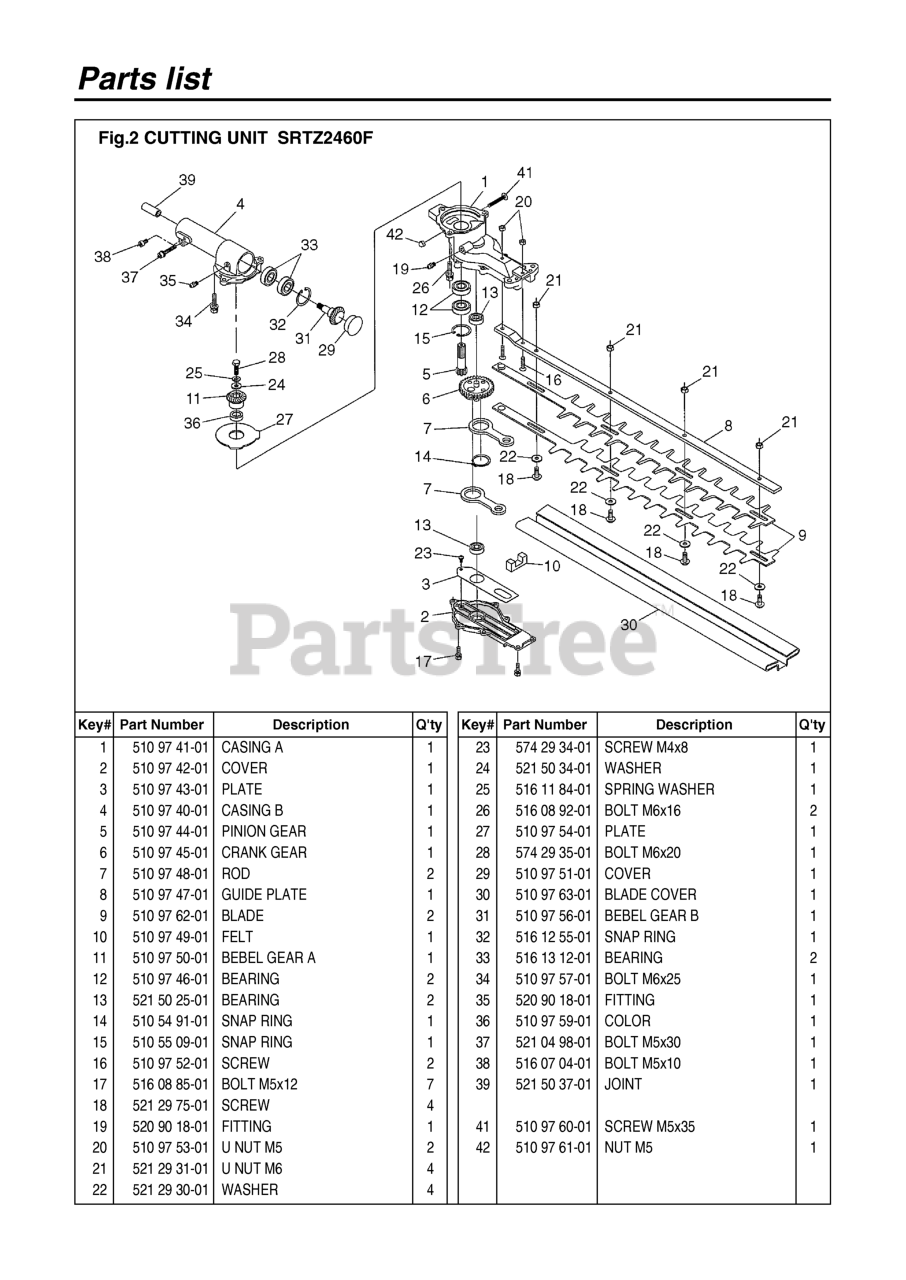

003 - CUTTING UNIT Parts Diagram

  • Title

1

RedMax 510974001

CASING (REPLS -6

$218.99

$

Usually ships in 3-10 days

0

2

RedMax 510974201

COVER

$60.99

$

In Stock, only 2 left!

0

3

RedMax 510974301

PLATE

$24.99

$

Usually ships in 3-10 days

0

4

RedMax 510974001

CASING (REPLS -6

$218.99

$

Usually ships in 3-10 days

0

5

RedMax 510974401

PINION GEAR

$109.99

$

Usually ships in 3-10 days

0

6

RedMax 510974501

CRANK GEAR

$194.99

$

Usually ships in 3-10 days

0

7

RedMax 510974801

ROD

$46.99

$

In Stock, only 4 left!

0

8

RedMax 510974701

GUIDE PLATE

$133.99

$

Usually ships in 3-10 days

0

9

RedMax 510976201

BLADE

$241.99

$

Usually ships in 3-10 days

0

10

RedMax 510974901

FELT

$11.99

$

Usually ships in 3-10 days

0

11

RedMax 510975001

BEVEL GEAR A

$109.99

$

Usually ships in 3-10 days

0

12

RedMax 510974601

BEARING

$48.99

$

Usually ships in 3-10 days

0

13

RedMax 521502501

BEARING
(Superseded to 516130201)

$18.99

$

In Stock, only 1 left!

0

14

RedMax 510549101

SNAP RING
(Superseded to 501409401)

$6.49

$

Usually ships in 3-10 days

0

15

RedMax 510550901

SNAP RING

$

$

Not available

16

RedMax 510975201

SCREW

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 516088501

BOLT, M5 x 25
(Superseded to 521827901)

$4.99

$

In Stock, Qty 20+

0

18

RedMax 521297501

SCREW(R3873,3884

$7.49

$

In Stock, Qty 11

0

19

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

Usually ships in 3-10 days

0

20

RedMax 510975301

U NUT M5

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 521293101

NUT, M6
(Superseded to 515232101)

$4.99

$

In Stock, Qty 12

0

22

RedMax 521293001

WASHER RPL 38731
(Superseded to 515232001)

$4.99

$

In Stock, Qty 5

0

23

RedMax 574293401

SCREW

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 521503401

WASHER,6x15x2.0(
(Superseded to 515698601)

$4.99

$

Usually ships in 3-10 days

0

25

RedMax 516118401

WASHER, M6 x 15
(Superseded to 510488001)

$4.99

$

In Stock, only 1 left!

0

26

RedMax 516089201

BOLT, M6 x 16
(Superseded to 510454401)

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 510975401

PLATE

$36.99

$

Usually ships in 3-10 days

0

28

RedMax 574293501

BOLT

$30.99

$

Usually ships in 3-10 days

0

29

RedMax 510975101

COVER

$15.99

$

Usually ships in 3-10 days

0

30

RedMax 510976301

BLADE COVER

$48.99

$

Usually ships in 3-10 days

0

31

RedMax 510975601

BEVEL GEAR B

$121.99

$

Usually ships in 3-10 days

0

32

RedMax 516125501

RING,SNAP M26x1.

$4.99

$

In Stock, only 4 left!

0

33

RedMax 516131201

BEARING

$18.99

$

Usually ships in 3-10 days

0

34

RedMax 510975701

BOLT M6X25

$3.99

$

Usually ships in 3-10 days

0

35

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

Usually ships in 3-10 days

0

36

RedMax 510975901

COVER

$18.99

$

Usually ships in 3-10 days

0

37

RedMax 521049801

BOLT
(Superseded to 514234801)

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 516070401

BOLT, M5 x 12

$3.49

$

Usually ships in 3-10 days

0

39

RedMax 521503701

JOINT (RPLS T307
(Superseded to 515698901)

$27.99

$

Usually ships in 3-10 days

0

41

RedMax 510976001

SCREW M5X35

$

$

Not available

42

RedMax 510976101

NUT M5

$

$

Not available
