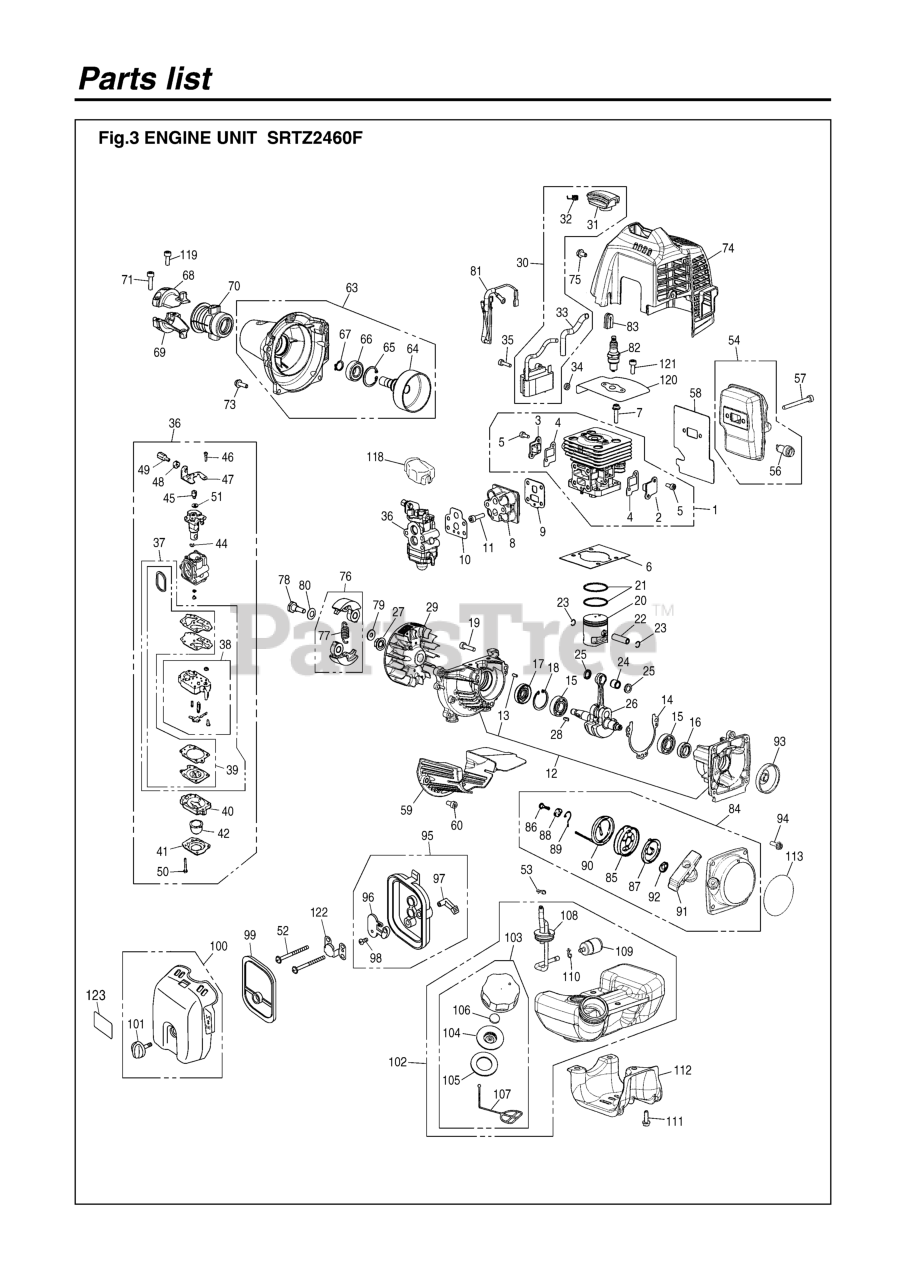

SRTZ 2460 F - RedMax Short Reach Hedge Trimmer (SN: 00100101 & Above) (2010-04)

Short Reach Hedge Trimmer

SRTZ 2460 F - RedMax Short Reach Hedge Trimmer (SN: 00100101 & Above) (2010-04) > Parts Diagrams (3) > 004 - ENGINE UNIT

  • Title
528052101

1

CYLINDER COMP

Part# 528052101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $55.89

505654101

2

COVER, TR-S

Part# 505654101

OEM Warranty Repair Part for RedMax

Not available

506654201

3

COVER, TR-F

Part# 506654201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

506654301

4

GASKET, TR

Part# 506654301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521515601

5

BOLT

Part# 521515601 (Superseded to 504119201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

521751901

6

GASKET, BASE

Part# 521751901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

521345201

7

BOLT

Part# 521345201 (Superseded to 506745201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $1.11

511349701

8

INSULATOR

Part# 511349701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $11.17

511350001

9

INSULATOR GASKET

Part# 511350001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

506654801

10

GASKET, CARB

Part# 506654801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

506689001

11

BOLT, TORX

Part# 506689001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

521752701

12

CRANKCASE-C

Part# 521752701 (Superseded to 512325801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.52

516762801

13

PIN

Part# 516762801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506684801

14

GASKET, CASE

Part# 506684801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

523071701

15

BEARING MAIN

Part# 523071701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $10.05

521340001

16

SEAL

Part# 521340001 (Superseded to 504121501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

516539201

17

SEAL, OIL (RPLS

Part# 516539201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

506609901

18

RING

Part# 506609901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521345401

19

BOLT (RPLS 28501

Part# 521345401 (Superseded to 504114301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

528052301

20

PISTON

Part# 528052301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $31.29

506618101

21

RING, PISTON

Part# 506618101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $10.05

516385601

22

PIN, PISTON

Part# 516385601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

516255701

23

RING, SNAP (RPLS

Part# 516255701 (Superseded to 505045201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

506685001

24

BEARING

Part# 506685001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

516181201

25

WASHER

Part# 516181201 (Superseded to 505041001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

528058401

26

CRANKSHAFT-C

Part# 528058401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $111.79

516437401

27

NUT (RPLS 1140-4

Part# 516437401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

516147801

28

KEY

Part# 516147801 (Superseded to 506689401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

574763401

29

ROTOR

Part# 574763401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $31.29

574763201

30

COIL ASSY

Part# 574763201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $100.61

521610001

31

CAP(RPLS 4810721

Part# 521610001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

506655201

32

SPRING

Part# 506655201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

506618201

33

TUBE

Part# 506618201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

516258101

34

SPACER

Part# 516258101 (Superseded to 504118601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521346901

35

BOLT TORX

Part# 521346901 (Superseded to 506745701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

575459001

36

CARBURETOR ASSY

Part# 575459001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $156.51

528070101

37

REBUILD KIT

Part# 528070101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $78.25

516543601

38

BODY, PUMP

Part# 516543601 (Superseded to 502238401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $42.47

525313101

39

GASKET KIT

Part# 525313101 (Superseded to 515378701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $67.07

516543801

40

BODY, PURGE

Part# 516543801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $27.94

516543901

41

COVER, PUMP

Part# 516543901 (Superseded to 506741001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

516525801

42

PUMP, PRIMING

Part# 516525801 (Superseded to 505306701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $6.70

516523601

44

RING

Part# 516523601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

516597701

45

SWIVEL

Part# 516597701 (Superseded to 506741201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

516528701

46

SCREW

Part# 516528701 (Superseded to 505307901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

521359901

47

BRACKET

Part# 521359901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $11.17

516524101

48

NUT

Part# 516524101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

516617201

49

SCREW

Part# 516617201 (Superseded to 521756001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

516544001

50

SCREW

Part# 516544001 (Superseded to 506741101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521360401

51

WASHER

Part# 521360401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $0.70

521515501

52

BOLT TORX

Part# 521515501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

516624801

53

CLIP

Part# 516624801 (Superseded to 506741501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521613501

54

MUFFLER

Part# 521613501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $25.70

521338301

56

ARRESTER

Part# 521338301 (Superseded to 506615601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

521345501

57

BOLT

Part# 521345501 (Superseded to 504116501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

511350401

58

GASKET, MUFFLER

Part# 511350401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

506629601

59

PLATE

Part# 506629601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $6.70

521345301

60

BOLT

Part# 521345301 (Superseded to 504119601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

528058501

63

COVER, C

Part# 528058501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $78.25

521609801

64

DRUM (RPLS 48103

Part# 521609801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $36.88

506609901

65

RING

Part# 506609901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

525953201

66

BEARING

Part# 525953201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $13.41

516124101

67

RING

Part# 516124101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521768201

68

BRACKET (A) (RPL

Part# 521768201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

521768301

69

BRACKET (B)

Part# 521768301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

521768501

70

CUSHION (RPLS T1

Part# 521768501 (Superseded to 512360501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $16.76

521345401

71

BOLT (RPLS 28501

Part# 521345401 (Superseded to 504114301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

521347901

73

BOLT

Part# 521347901 (Superseded to 515391301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

511350501

74

COVER, ENGINE

Part# 511350501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $14.52

521515901

75

BOLT (RPLS T4950

Part# 521515901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

512328301

76

SHOE COMP

Part# 512328301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $22.35

521346701

77

SPRING

Part# 521346701 (Superseded to 515389301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

516207901

78

BOLT

Part# 516207901 (Superseded to 513189601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

516207701

79

WASHER

Part# 516207701 (Superseded to 505054401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

516207801

80

WASHER (RPLS 114

Part# 516207801 (Superseded to 513189501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521753801

81

CORD COMP.

Part# 521753801 (Superseded to 512328601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

528074001

82

SPARKPLUG

Part# 528074001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

521342501

83

GROMMET

Part# 521342501 (Superseded to 506615901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521753901

84

RECOIL-A

Part# 521753901 (Superseded to 512328801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $50.30

521326701

85

REEL

Part# 521326701 (Superseded to 504114701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $14.52

521326801

86

SCREW

Part# 521326801 (Superseded to 515367101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

516541701

87

SPRING, SPIRAL

Part# 516541701 (Superseded to 504115001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

521327001

88

COLLAR

Part# 521327001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521327101

89

ARM

Part# 521327101 (Superseded to 504114801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

521342801

90

ROPE (RPLS 45007

Part# 521342801 (Superseded to 504114901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $6.70

521025501

91

KNOB (RPLS 3330-

Part# 521025501 (Superseded to 506614701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

521342901

92

PLATE, STOPPER

Part# 521342901 (Superseded to 515385601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

521327201

93

PULLEY

Part# 521327201 (Superseded to 504114401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

521346501

94

BOLT, TORX

Part# 521346501 (Superseded to 506745601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

528074901

95

CLEANER BODY ASS

Part# 528074901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $16.76

528074301

96

PLATE, CHOKE

Part# 528074301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

528074401

97

LEVER

Part# 528074401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521740901

98

SCREW

Part# 521740901 (Superseded to 506673801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

528074701

99

ELEMENT

Part# 528074701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

575832701

100

COVER ASSY

Part# 575832701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

528074601

101

CLEANER KNOB

Part# 528074601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

528050101

102

TANK ASSY

Part# 528050101

OEM Warranty Repair Part for RedMax

Not available

521732201

103

CAP ASSY

Part# 521732201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

521329501

104

HOLDER (RPLS 450

Part# 521329501 (Superseded to 515369401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.05

521329301

105

PACKING

Part# 521329301 (Superseded to 506744301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521377101

106

FILTER

Part# 521377101 (Superseded to 506746801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

521347801

107

STOPPER

Part# 521347801 (Superseded to 506745801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521754601

108

PIPE-C

Part# 521754601 (Superseded to 579138307)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $10.05

525313601

109

FILTER

Part# 525313601 (Superseded to 506614601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

516262101

110

CLIP (RPLS 28413

Part# 516262101 (Superseded to 506707001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521347901

111

BOLT

Part# 521347901 (Superseded to 515391301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521753101

112

GUARD, TANK

Part# 521753101 (Superseded to 512326501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $14.52

528052501

113

LABEL, RECOIL

Part# 528052501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

521327901

118

COVER

Part# 521327901 (Superseded to 506744201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

521345301

119

BOLT

Part# 521345301 (Superseded to 504119601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

511349501

120

PLATE

Part# 511349501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

521345301

121

BOLT

Part# 521345301 (Superseded to 504119601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

575750401

122

PLATE

Part# 575750401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

523071401

123

LABEL

Part# 523071401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $6.70
